3. To connect the discharge pipe, do not apply excessive force on the drain connection of the indoor unit.
4. There is a drain hole on either side of the indoor unit; the drain hole which is not being used must be
closed.
5. The appliance is equipped with a condensate lift pump which can pump up to 1200 mm.
The condensate discharge pipe must be fitted with a jacket made from heat-insulating material (rubber
insulation thicker than 8 mm) to prevent the formation of condensation or water droplets.
Indoor unit cassettes (UCARE):
Installation requirements:
Ensure that you respect the following installation requirements during installation.

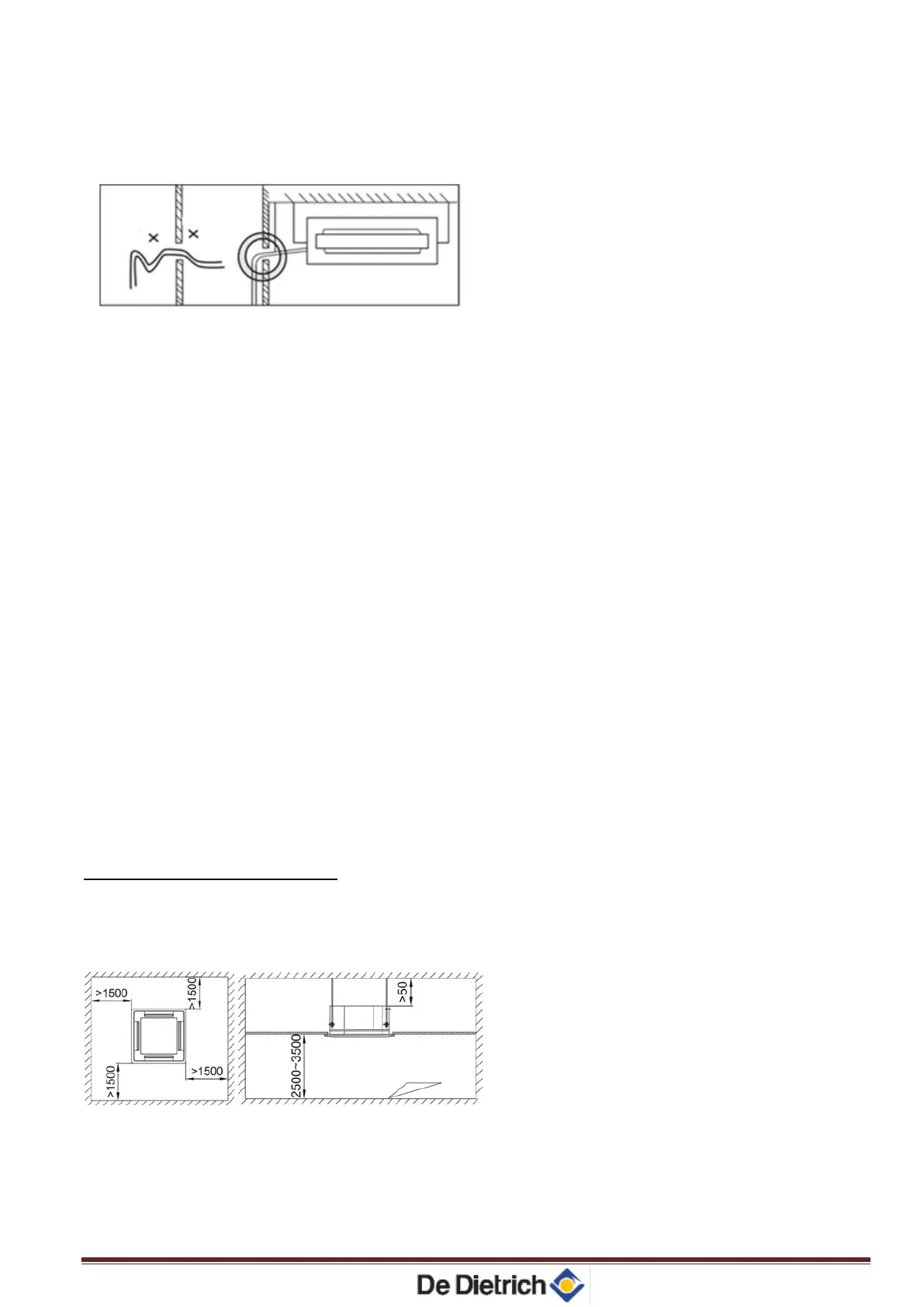

The distance between obstacles and the indoor unit is shown in the drawing below:
