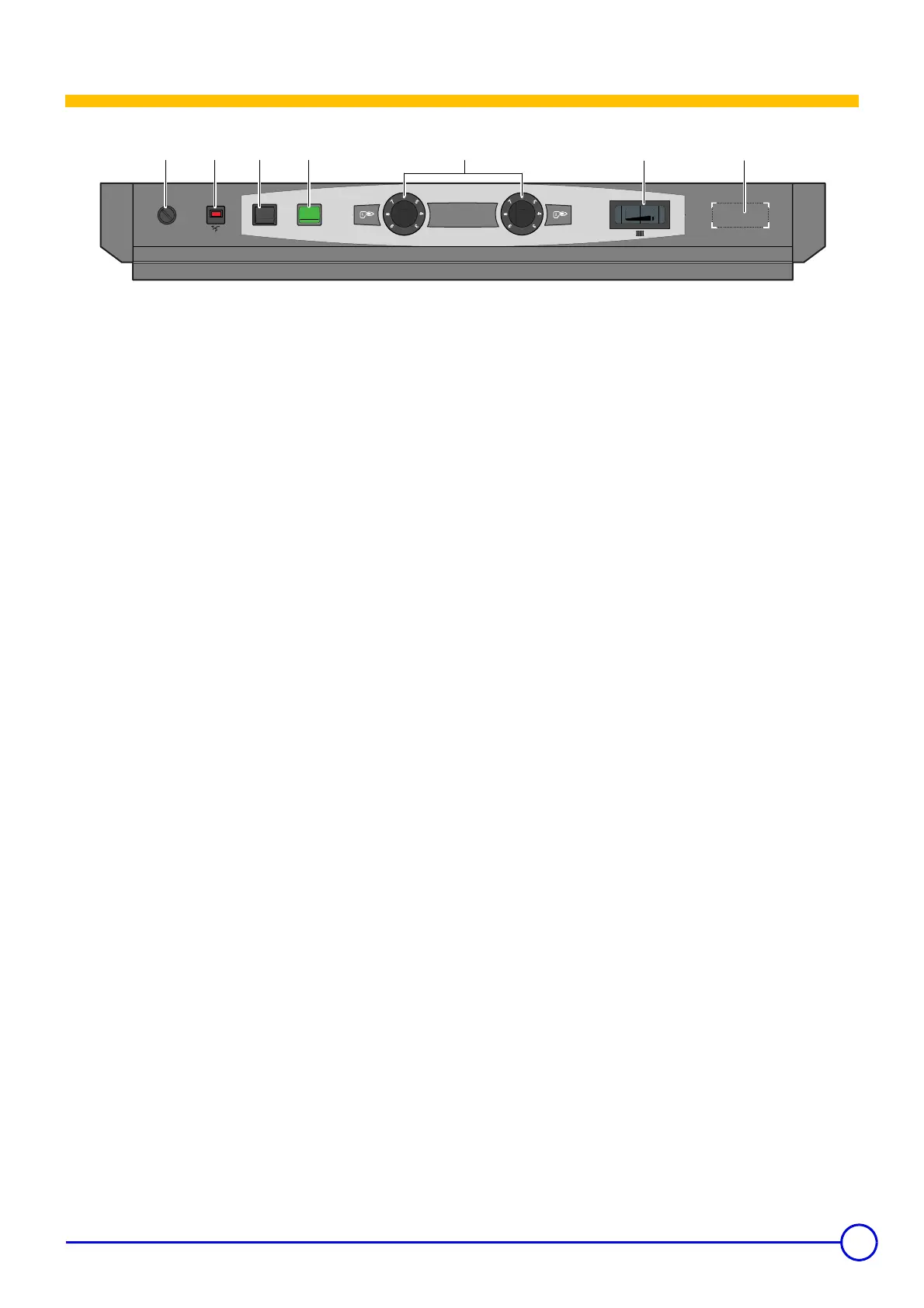

Presentation
1. General ON (1) / OFF (0) switch
2. Switch Test-STB
Temporary action to test the safety thermostat
3. Boiler thermostats (30 to 85 °C)
A factory-set stop limits the maximum temperature to 75 °C. The
stop may be moved if necessary (See Moving the thermostat
stop).
4. Boiler thermometer
5. Location for flue gas thermometer (optional)
6. Timed circuit breaker (10 A) with delayed action and manual
reset
7. Safety thermostat with manual reset
(set to 110 °C)
