Control panel S3 23/01/06 - 300008905-001-A
4 Electricity supply - Flow controller

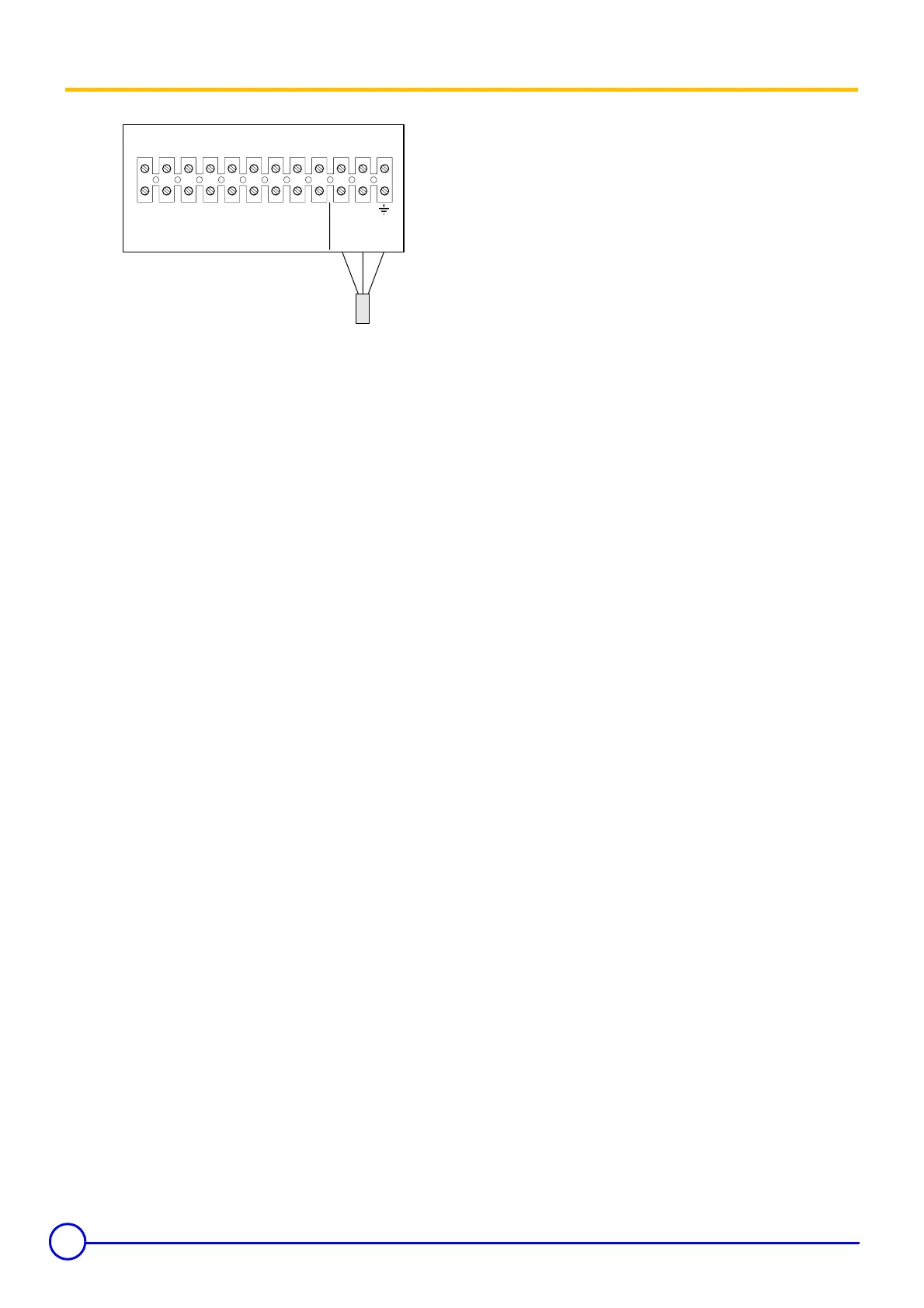

Make the electrical connection to the terminals 1, 2, 3.
Connection to the mains is done using a 3-wire cable with a cross
section of 0.75 mm² on the terminal block (terminals 1, 2, 3).
For other electrical connections, use the 3 wire cable with a diameter
of 0.75 mm².
The flow controller contact is connected to the safety circuit in series
(between terminal 5 on the terminal block and terminal L1 on the
burner, for example).
34
21
567
89101112
LN
ALI
5 467
89101112
230 V / 50 HzNL1T1T2
T6T7T8S3VA
8219N087
2
3 x 0,75 mm
