EN
defa.com 14

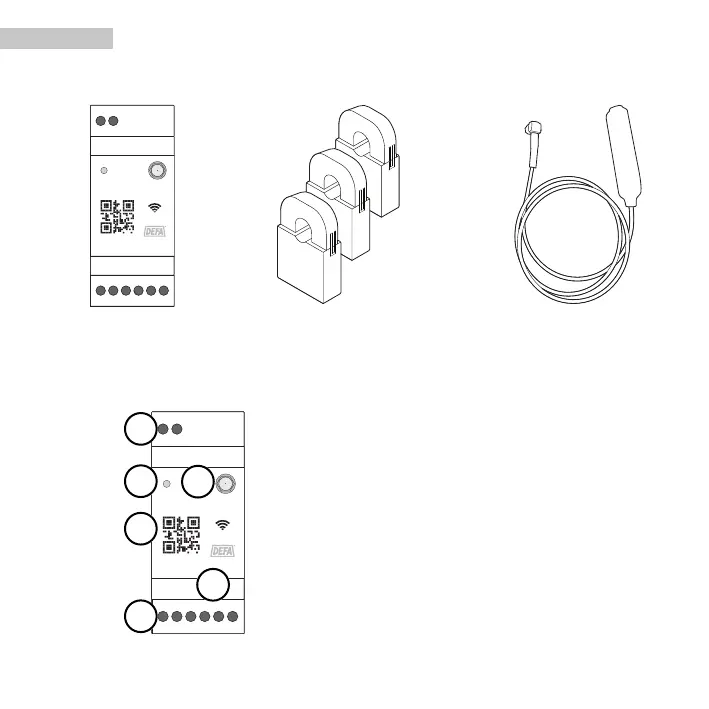

What's included
DEFA BALANCER
AD7
34FG5
1 2
L N
3 4 5 6
DEFA Balancer 3 x 80A current sensors Wi-Fi antenna
Product description
DEFA BALANCER
AD734FG5
1 2
L N
3 4 5 6
DEFA BALANCER
AD7
34FG5
1 2
L N
3 4 5 6
A
E
D
C
B
F
A: AC 230V input
B: Status LED
C: Antenna
D: QR code to access device information
E: Ethernet plug
F: Terminals for current transformers

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the DEFA Balancer and is the answer not in the manual?

DEFA Balancer Specifications

General IconGeneral
Product nameDEFA Balancer
Product or component typeCurrent sensor
Product specific applicationLoad monitoring
Product destinationSwitchboard
Tightening torque0.5Nm
SafetyIEC 61010-1
Maximum current [Imax][dependent on current sensor]
Starting current[min. load current possible to measure]
Supply voltage100-240 V AC, +/-10%
Power consumption0.03 A
Maximum input voltage0.333 VRMS AC
Type of measurementCurrent
Accuracy+/- 2%
Metering typeCurrent L1, L2 and L3
Range compabilityDEFA Power
Frequency50/60 Hz
Transmission mediumRadio frequency 2.4 GHz or 5 GHz (Wi-Fi), Ethernet
Radio/EMC2014/53/EU - RED
Antenna connectorSMA female
Cable entry0.2-2.5 mm2 / (AWG18 - AWG14)
Mounting modeDIN rail
Number of modular spacings2
Operating altitude (m.a.s.l)0.2000 m
Ambient air operating temperature-25°C to +60°C
Ambient air storing temperature-30°C to +70°C
