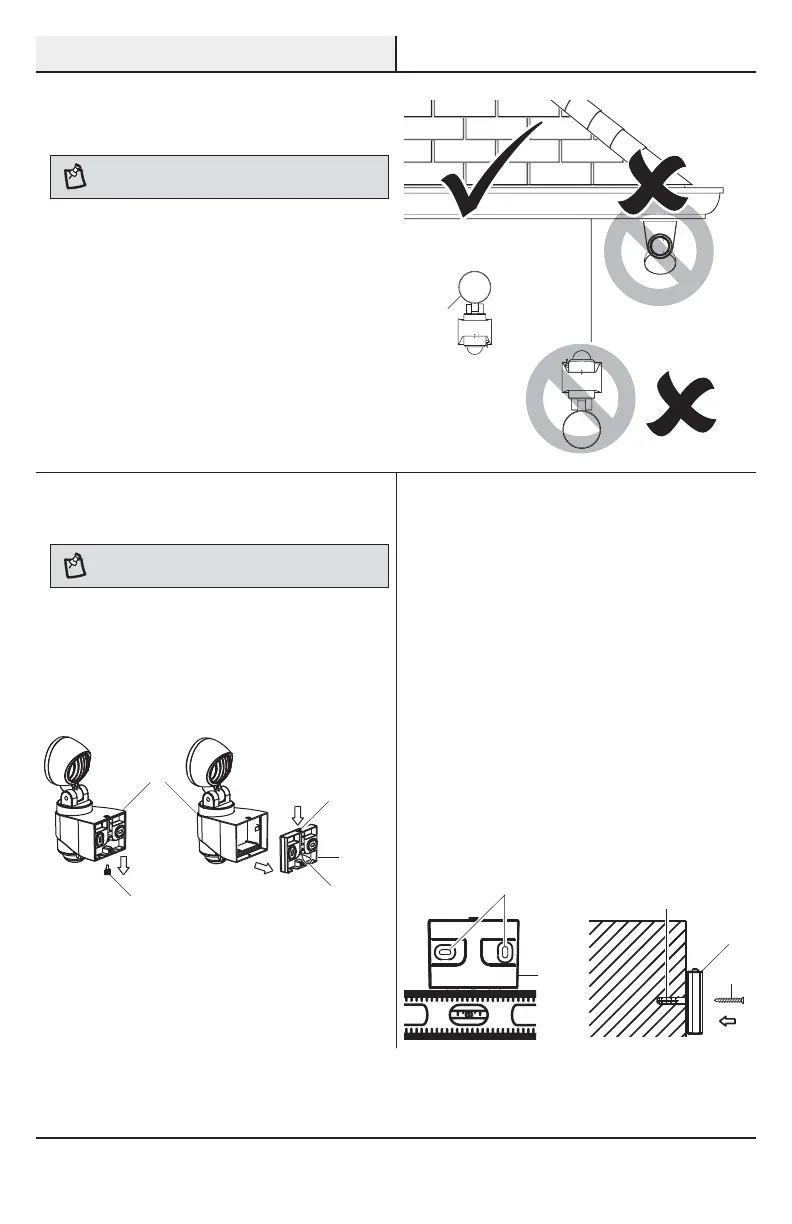

Installation
1
Determining the mounting
location
NOTE: The light xture should be mounted approximately
8 ft. (2.4 m) above the ground.
Ƒ Determine the mounting location – wall mount
only.
Ƒ Position the lamp head (A) in the general
direction of the desired light coverage.
Wall Mount
2
Removing the mounting plate
NOTE: This xture comes with a mounting plate (D). It is
pre-assembled on the light xture (B) for shipping.
Ƒ Unscrew the decorative screw (CC) in the bottom
of the xture (B).
Ƒ Press the button (1) on the top of the xture (B)
and pull the mounting plate (D) from the xture
(B) using the pull loop (2).
3
Installing the mounting plate
Ƒ Place the mounting plate (D) against the
mounting surface and ensure the mounting
plate (D) is level.
Ƒ Drill two 3/32 in. holes (3) through the
mounting plate(D) and into the mounting
surface.
Ƒ If mounting to a wooden surface, install
the two mounting screws (AA) through the
mounting plate (D) and into the mounting
surface.
Ƒ If mounting to wall board or brick, remove
the mounting plate (D) and drill the
mounting surface using the 7/32 in. drill
bit. Insert the wall anchors (BB) and attach
the mounting plate (D) using the two
mounting screws (AA).
A
CC
2
D
3
D
1
B
D
AA
BB
