Installation (continued)
3

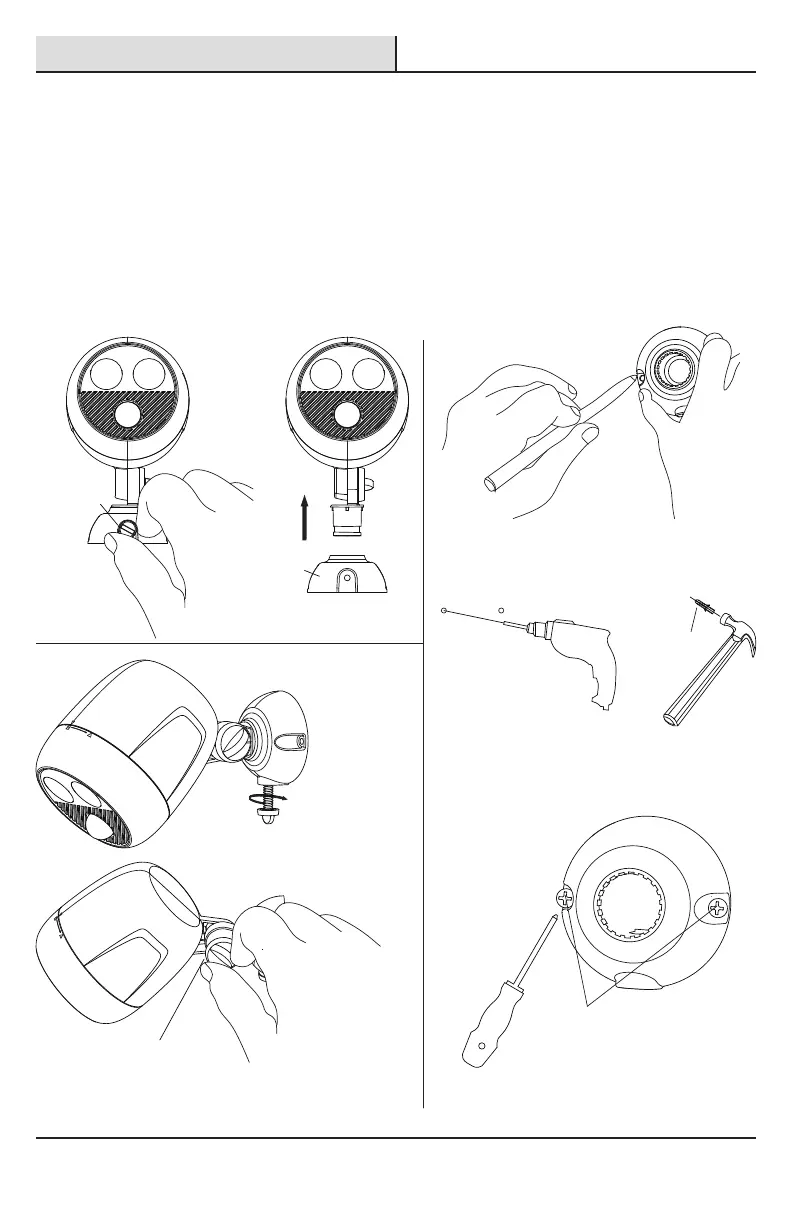

Mounting the light fixture
Step 1. Remove the mounting base (C) by turning the thumbscrew counterclockwise. Lift the lamp head (A) out
of the mounting base (C) and set aside.
Step 2. A) Determine the mounting location and mark the pilot holes. Use a drill bit to create the pilot holes (if
mounting to drywall, use the drywall anchors included with the screws). Use a hammer to tap the anchors(AA)
into the pilot holes, before screwing in the mounting base(C).
B)Drill the screws(BB) through the holes on mounting base(C). Insert the stem of the light back into mounting
base(C) and tighten the thumbscrew.
Step 3. Loosen the knuckle screw located on the stem of the light to point the light in desired direction. Then
tighten the screw to secure position.
AA
BB
Step1
Step2 A
Step2 B Step2 C
Step2 DStep3
Thumb
Screw
Mounting Base
Knuckle Screw
Thumb Screw
