Note: The machine should not be transported without the transport fittings securely
in place. To achieve this, remove the lid to gain access to the locating keyways.
Insert and turn the transport fittings a half turn clockwise to secure them and
replace the lid.
Levelling
1. The machine must stand firmly on the floor. Any instability will negatively affect its
performance when in use.
2. The machine has two fixed feet at the rear and two adjustable feet at the front.
3. To level the machine, loosen the lock nuts on the adjustable feet using a 17 mm
spanner.
4. Rotate the feet until the machine stands firm and level.
5. Then tighten the lock nuts firmly.
6. Caution: Never remove the lock nuts and feet from the machine.
Connecting to the water supply
1. Connect the inlet hose to a 3/4 inch BSP cold water tap.
2. Do not over tighten as you may damage the seal
Water drainage
Draining into a dedicated outlet pipe
1. The outlet pipe must have an inside diameter of at least 40 mm.
2. The end of the pipe should be positioned no less than 500 mm. And no more than
1000 mm. above floor level.
3. Securely hook the end of the drain hose into the outlet pipe.
Draining into a sink or bath
1. The drain hose may be
hooked over the edge of a
sink or bath in such a way
that the end cannot be
immersed in the collected
waste water.
2. The outlet end of the hose
must not be less than 500
mm and not more than 1000
mm. above floor level.

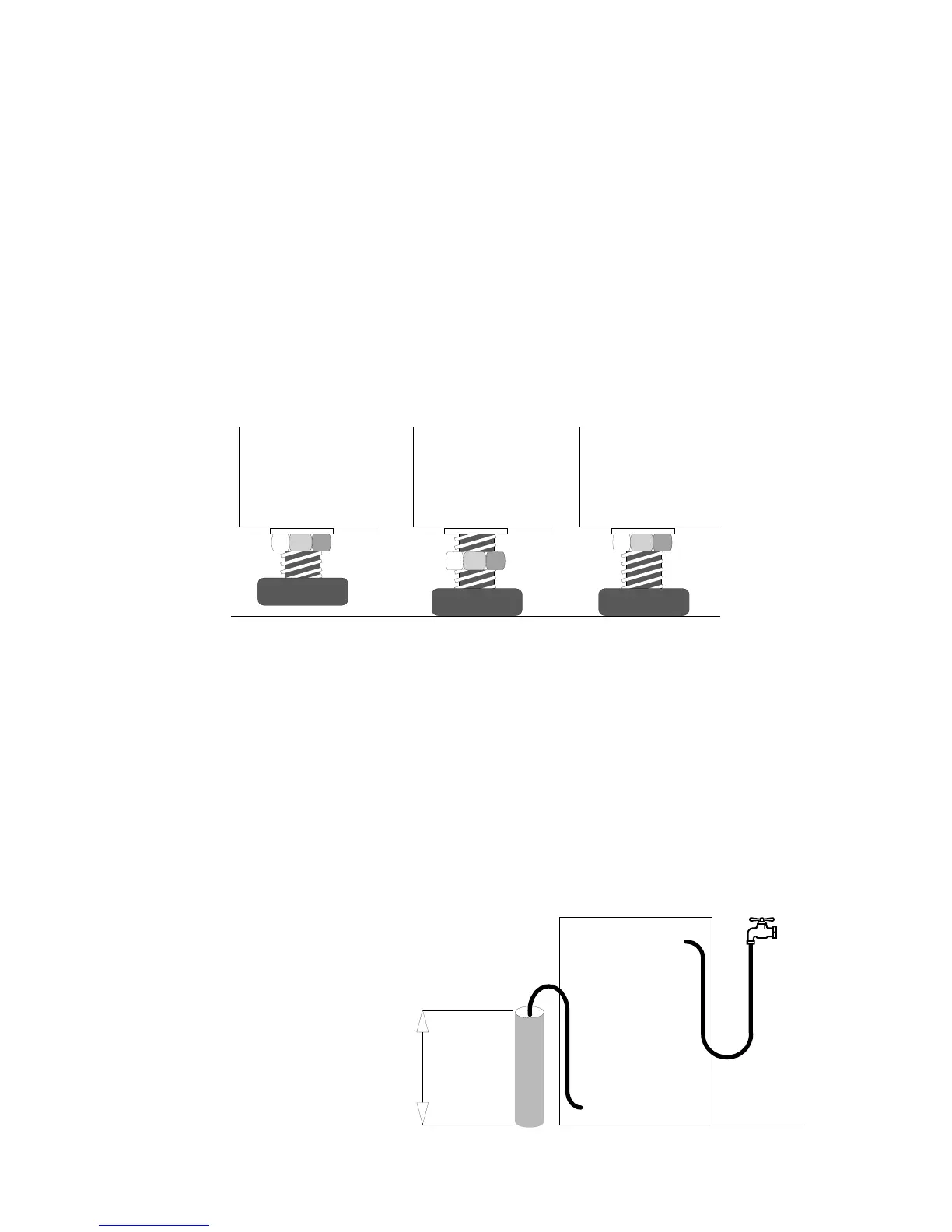

NOT LEVELLED NOT LOCKED
LEVELLED
AND LOCKED
COLD WATER
3/4 INCH BSP
TAP
40mm.
INSIDE DIAMETER
OUTLET PIPE
DRAIN
HOSE
INLET
HOSE
500 TO 1000 mm
BACK OF MACHINE
FLOOR LEVEL
