This document describes the DEKO TV Digital TV Receiver, available in PRO and PRO 2 models, which supports DVB-T2 HEVC and DVB-C standards. It functions as a digital TV receiver, allowing users to access terrestrial and cable television channels.

Remote Control Functionality:

The remote control provides comprehensive control over the DEKO TV receiver and, through its MEMORY function, can also operate a connected TV set.

Power: Turns the tuner on/off.
TV Control (Programmable): A group of five buttons designed for programming TV IR commands, enabling control of a TV set from the DEKO TV remote.
MUTE: Toggles sound muting.
AUDIO: Changes the soundtrack language.
SUBT: Selects subtitles for films.
TTX: Switches teletext on/off.
FORMAT: Changes the aspect ratio.
TV/RADIO: Switches between TV and Radio channels.
FAV: Activates the favorites channels function.
MENU: Accesses the decoder settings.
EXIT: Closes the current mode or menu.
OK/LIST: Confirms selected functions and lists all TV channels.
V+/V-: Adjusts volume.
CH+/CH-: Changes channels.
EPG: Displays the Electronic Program Guide.
INFO: Shows detailed program information and channel parameters.
PVR: Provides direct access to the directory of recorded material.
REC: Initiates recording.
Media Buttons (Colored Keys - Red, Green, Yellow, Blue): These keys are used for navigation and activating functions within the tuner's submenus, with prompts displayed on screen.
- RED: Play/pause and Time Shift (scrolling through content).
- GREEN: Stops playback or recording.
- YELLOW: Fast rewind.
- BLUE: Fast forward.
1-9: Channel number buttons.
RECALL: Switches to the previous channel.
PLAN: Activates the "Recording schedule" function (in TV mode).

MEMORY Function (TV Control):

The MEMORY function allows the DEKO TV remote to control both the DEKO TV decoder and a connected TV.

Programming Steps:
1. Press and hold the "SET" button for approximately 2 seconds until its red LED brightens, indicating entry into button pairing mode.
2. Press the desired button on the DEKO TV remote (e.g., Power) from the "TV Control" section. The LED will flash slowly, signaling it's listening for IR commands.
3. Align the DEKO TV remote with the external TV remote (LEDs facing each other, max 3 cm distance). Press the corresponding button on the external remote (e.g., Power). The red LED will flash three times to confirm successful storage.
4. Press the "SET" button on the DEKO TV remote to complete the pairing process.
Note: The "SET" button itself is not programmable. Up to 5 buttons from another remote can be programmed, regardless of their original function.

Hardware Interface:

The DEKO TV PRO and PRO 2 models feature various ports for connectivity.

RF IN: Connects an antenna cable for DVB-C or DVB-T2 signals.
RF LOOP (Optional): Connects an output cable for DVB-C or DVB-T2 signals.
USB Port: For inserting a USB drive, hard disk drive, or Wi-Fi USB module.
HDMI Output: Connects to the TV's HDMI port using an HDMI cable.
SCART Output (PRO model only): Connects to the TV's SCART port (for TVs without an HDMI port).

Installation and Channel Search:

Upon initial setup or when no channels are found, the tuner displays an installation guide.

Initial Setup: Use the CONTROL KEY [▲ / ▼] to navigate and [OK] to select. Move the cursor to "Channel Search" and press [OK] to begin automatic channel search.
Installation Guide Options:
- OSD Language: Changes the default language.
- Country: Changes country settings.
- FTA Only: Selects only Free To Air channels.
- Search Mode: Changes between DVB-T/T2 or DVB-C.
- Antenna Power: Activates if the antenna requires additional power supply.
- Channel Search: Starts searching for channels.
LCN Setting: To set a custom channel numbering, the LCN (Logical Channel Numbering) setting should be disabled (Off).

Main Menu:

Pressing the [MENU] key accesses the Main Menu, offering various settings and features.

Navigation: Use [◄►] or [▲ / ▼] to move the cursor and [OK] to confirm selections. [EXIT] returns to the previous menu.
Menu Items: Channel Search, Channel Edit, Setting, Upgrade, Network Setting, Weather, YouTube, IPTV, PVR Media, Video, Music, Picture.

Channel Edit:

This section allows users to manage their channel list.

Access: Press [OK] on the large screen to display the channel list, then press [YELLOW BUTTON] or navigate to "Channel Edit" in the Main Menu and press [OK].
Channel Delete:
1. Press [1] (Del) on screen to enter delete mode.
2. Move the cursor to the desired channel and press [OK] to select. Multiple channels can be selected.
3. Press [RED] (from Media Section of Deko TV remote) to delete marked channels.
Move Channels:
1. Press [2] (Move) on screen to enter move mode.
2. A move marker will appear on the selected channel. Press [GREEN BUTTON] to select multiple channels.
3. Move the selected channels to the desired position and press [OK].
4. Note: Disable LCN setting first for custom channel order.
Skip Channels:
1. Press [3] (Skip) on screen to enter skip setting mode.
2. Select channels to skip by pressing [OK]. Skipped channels will not appear in the channel list.
Channel Lock:
1. Press [4] (Lock) on screen to enter channel lock mode.
2. Enter the decoder password (default: 000000, changeable in Decoder Menu).
3. Select channels to lock and press [OK]. Locked channels require the password to play.
Add Favorite Group:
1. Press [5] (Fav) on screen to enter add favorite channels mode.
2. Move the cursor to the channel to add to a favorite group and press [OK] to confirm. A channel can be added to multiple groups.
3. Press [EXIT] to exit the favorite groups category field. Channels in a favorite group will display a flag.

EPG Program Guide:

Access the Electronic Program Guide for program information.

Access: Press the [EPG] shortcut.
EPG Information: Press [OK] to display EPG info for the current channel.
Navigation: Use [▲ / ▼] to switch programs if EPG information is available. Use [▷] to move the cursor to the EPG Display Window for more program details.
Daily Navigation: [GREEN BUTTON] for the day before, [YELLOW BUTTON] for the day after.
Detailed Info: Press [INFO] on the remote while watching a program for more details. Double-clicking [INFO] displays the full program description. Pressing [INFO] three times shows transmission parameters and reception strength.

Settings Menu (Main Settings):

Language: Sets the language for the decoder menu, two audio tracks, on-screen subtitles, teletext, and EPG.
AV Settings:
- TV Standard - Resolution: Selects the optimum (native) resolution for the receiver (default: 1080i@50Hz).
- TV Ratio: Sets the aspect ratio.
- Aspect Mode: Auto, Global.
- Volum Scope: AC3 Decode, CVBS.
- SPDIF/HDMI:
- TV-Scart:
OSD Settings:
- Transparency: Adjusts menu transparency on the TV channel.
- OSD Timeout: Specifies how long the menu with program description stays on screen.
- Channel Switch: Selects how channels are switched (e.g., Freeze).
Lock Control: Enables/disables channel locking by password. Allows changing the default password (000000).
Time Setting:
- Mode: Selects automatic time setting from the sender.
- Timezone: Sets the time zone.
- Summertime: Toggles summer time on/off.

PVR Management:

Timeshift: Enables/disables the TIMESHIFT function for recording live programs, activated by the [RED] button on the remote.
Record Duration: Sets the recording duration.
Section Record:
Disk Information:
Timer Settings: Schedules program recordings.
- Add Item: Press [GREEN] to add a recording event.
- On Mode: Sets the decoder to automatically start at the scheduled date and time.

Network Settings:

Wi-Fi: An additional Wi-Fi adapter (not included, available separately) is required to connect the device to a network via USB.
Settings: Device, Mode (None, off), Type (Static IP), IP Address, Subnet Mask, Gateway, DNS1, DNS2, Save, Status (Invalid!).

Software Update:

Download: Latest software update files are available at www.dekoelectronics.com in the "Downloads" tab, with detailed instructions.
Uploading:
1. Select "Software Update" from the Main Menu and press [OK].
2. Select "USB Upgrade" and indicate the path to the software file on a memory stick.
3. Click [OK] to start the update.
- CAUTION: Do not unplug the decoder during the update process.
Note: With the latest software, the decoder can also be updated via the Internet directly from the Decoder Menu.

IPTV (Internet TV):

Instructions: Detailed instructions for adding additional free-to-air channels are available at www.dekoelectronics.com.
Adding Channels:
- When the cursor is in the left half of the screen, press [RED] to refresh the list and [GREEN] to display the list of IPTV clouds.
- IPTV channels can be added, deleted, edited, and imported.
- [BLUE] is used to enter the IPTV server address in the .XML file.
- In local IPTV mode, navigate to the XML file, press [BLUE], select the file location, and press [OK] to import.
- After successful import, channel groups and lists will appear. Use [▲ / ▼] for navigation.

Warranty:

Period: 24 months from the date of sale (proof of purchase and warranty card required).
Territorial Scope: European Union.
Acceptance for Repair: Requires valid proof of purchase (receipt, simplified bill, VAT invoice) and the defective product. Inconsistent documents may lead to refusal.
Warranty Card: Must be stamped and signed by the dealer. Incorrectly or illegibly filled cards are invalid.
Coverage: Covers defects inherent in the product.
Exclusions:
- Improper use, non-compliance with instructions or safety regulations.
- Mechanical damage or defects caused by it.
- Defects from unauthorized repairs.
- Damage/malfunctions from improper installation of equipment.
- Normal wear and tear (scratches, stains, worn lettering, batteries).
- Operations mentioned in the user's manual as user responsibility.
- Damage from fortuitous events (fire, flood, power surges, electrical discharges, chemical agents, corrosion).
- Products with removed or broken warranty seals.
Commercial Use: Warranty covers products used exclusively for non-business purposes. For commercial use, warranty is limited to spare parts replacement; labor costs and warranty duration (excluding consumables) remain unchanged. Consumable parts warranty is 3 months.
Repair: Free replacement of spare parts and labor during warranty period, performed only by DEKO Electronics Authorized Service.
Timeliness: Service is not responsible for repair timeliness due to import/export restrictions or other legal/external circumstances.
Packaging: Product should be sent in original factory packaging. Damage in transit due to improper packaging will prevent repair.
Complaint: Customer can lodge a complaint at the place of purchase.
Exchange: Equipment can be exchanged for a new one if DEKO Electronics Service Centre states defect removal is impossible. Replaced equipment must be complete; cost of missing parts is borne by the Purchaser.
Chargeable Activities: Service activities like operation checks, measurements, cleaning, adjustment, tuning are chargeable.
Mechanical Damage: Not covered by warranty, even if the dealer accepts it for complaint handling. DEKO TV does not warrant mechanically damaged equipment.
Lost Warranty Card: No replacement or duplicate document will be issued; repair and claims under warranty will be void.
Purchaser's Rights: Warranty does not exclude, limit, or suspend Purchaser's rights from non-conformity of goods with the contract.
Governing Law: Civil Code provisions apply for matters not covered by these terms.

Safety and Operational Recommendations:

User Manual: Read carefully and follow instructions. Non-compliance voids warranty claims. Keep for future reference. Contact authorized service for repairs.
WARNING - Electric Shock: Do not open the housing or back cover. High voltages may be present even when off. No user-serviceable parts inside. Repairs only by authorized service. Power cord replacement by specialist workshop. Protect batteries from excessive heat.
WARNING - Fire/Electric Shock: Protect equipment from water/moisture. Do not place in locations where it may be splashed or near liquids.
Ventilation: Do not block ventilation openings. Install according to manufacturer's recommendations. Ensure proper ventilation; do not place on soft surfaces (bed, sofa, carpet) or in enclosed spaces (bookshelves, cupboards) without adequate ventilation.
Repairs: All servicing by a service center. If dropped, power cord damaged, liquid ingress, rain exposure, abnormal operation, or sound degradation, service is required.
Disposal (Worn Out Electrical and Electronic Equipment):
- Symbol indicates product should not be disposed of with household waste.
- Polish law prohibits mixing used electrical/electronic equipment with other waste.
- Hand over to appropriate collection/recycling points.
- Proper disposal prevents negative environmental/health consequences and conserves natural resources.
- Contact local authority, cleaning service, or shop for recycling information.
CE Mark: Indicates compliance with Directive 2004/108/EC (electromagnetic compatibility) and Directive 2006/95/EC (low-voltage regulations and safety related to electrical equipment handling).
Location: Place on a flat, stable surface, away from other electronic devices that could cause interference. Ensure free space for ventilation in racks, low humidity, away from sun/heat sources. Protect from flooding.
Power Supply: Unplug from mains if not used for long periods. Grasp the plug, not the cord. Do not touch with wet hands (electric shock risk). Use only manufacturer-recommended power supply. Do not place AC adapter in enclosed spaces. Protect from dropping/shock.
Lightning: Unplug during storms or before long periods of non-use to prevent damage from power surges.
Cleaning: Clean housing and controls with a soft cloth dampened with mild detergent. Do not use abrasive cloths, scouring powder, or solvents (spirit, petrol).
Batteries: Remove batteries from remote if worn out or not used for long periods. Use only new batteries; do not mix old/new or different manufacturers. Dispose of properly (contain harmful chemicals). Do not charge, short-circuit, heat, or place in fire. Do not drop remote. If leakage occurs, remove damaged batteries immediately, clean residue, and prevent corrosion. Battery life is typically 1 year, depending on usage.

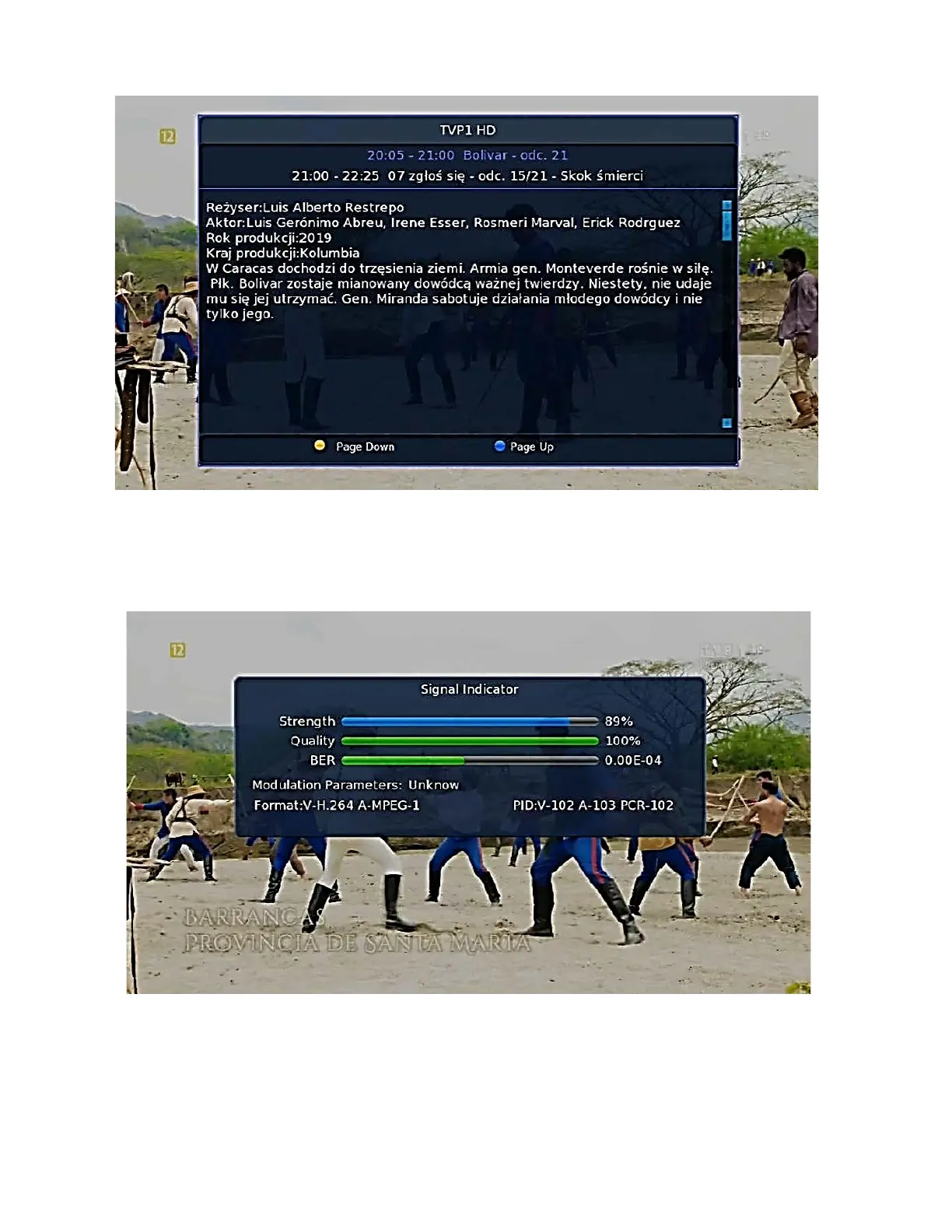

DeKo PRO - Full Program Description; Signal and Transmission Parameters
