Exposed Shower Kit
• Position the shower kit so that the shower head is 2.10m high in relation to the floor.
• Recessed supply
: use DELABIE elbow connectors ref. 836020 or 838020 for installations with 150mm
centres.
• Exposed supply
: use the DELABIE reinforced wall plate ref. 824800 with four fixing points for a secure
assembly.
Shower Panel Model
• Drill a Ø 56 (ref. 790970) or Ø 62 (ref. 790975) diameter hole in the panel.
• Unscrew the wall plate.
• Mount the mixer on the panel and replace the wall plate.
• Tighten the three screws using a 3mm Allen key.
ADJUSTING THE FLOW RATE
The flow rate is pre-set at the factory at 3 lpm (at 3 bar) for washbasins and 12 lpm (at 3 bar) for showers.

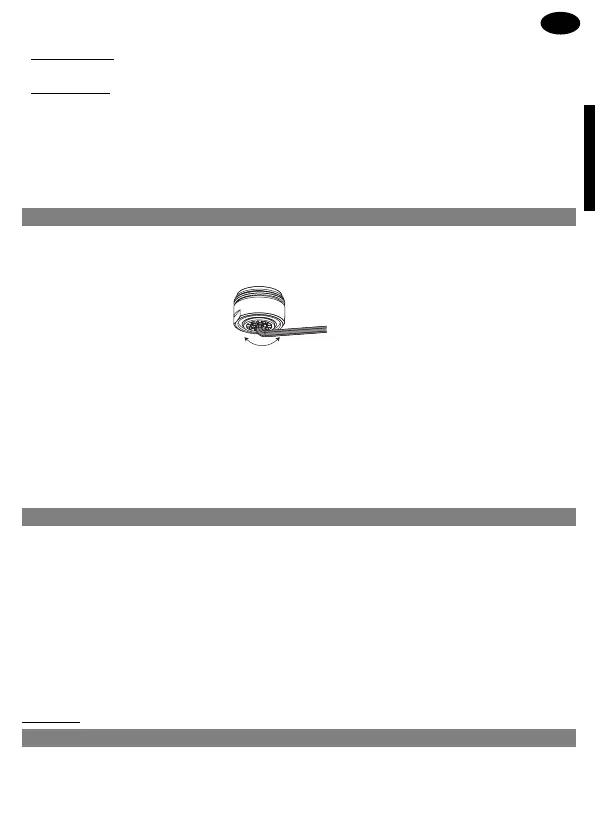

• For washbasins the flow rate can be adjusted directly on the adjustable flow
straightener using a 2.5mm Allen key:
- Notch n°1 = 3 lpm (at 3 bar).
- Notch n°2 = 4 lpm (at 3 bar).
- Notch n°3 = 5 lpm (at 3 bar).
• If the adjustable flow straightener on a washbasin tap is replaced by an aerator, or a standard
flow straightener is fitted to a shower, the flow rate can be adjusted without shutting-off the water
supply or removing the mechanism (fig.
)
:
- Unscrew the central cap
using a pair of circlip pliers.
- Insert a 3mm Allen key in the centre of the push-button. Open the valve and turn the Allen key to the
achieve the desired flow rate.
- Replace the central cap
.
• Shower kits fitted with the TONIC-JET, ROUND or GYM shower head do not require adjustment,
the flow rate is restricted to 6 lpm by the integrated flow regulator.
MAXIMUM TEMPERATURE LIMITER
The mixer is delivered without the temperature limiter engaged. For the UK and Northern Ireland market
we recommend installing a thermostatic mixing valve to provide safe, temperature controlled hot water.
For all other markets we recommend restricting the maximum temperature for certain users (children, the
elderly, etc.).
• Rotate the push-button control
all the way clockwise, towards the hot water marker and check the
temperature of the water (50°C maximum) (fig.
).
• Unscrew the central cap
and screw
and remove the push-button control
to gain access to the
index ring
with the temperature limiter
(fig.
)
.
• The water temperature at the mixer outlet is governed by the position of the index ring: remove the index
ring and replace it at notch 15° and check the maximum temperature at the TEMPOMIX outlet (fig.
)
.
WARNING
: Do not remove the index ring.
REMEMBER
• Our mixers/taps must be installed by professional installers in accordance with current
regulations and recommendations in your country, and the specifications of the fluid engineer.
• Our mixers/taps must be installed by professional installers in accordance with current regulations
and recommendations in your country, and the specifications of the fluid engineer.
GB
