Delco VERSA 100C - Burner Assembly Details; Burner Drawing and Parts List

Versa 100/100C Owner's Manual Page 23
1 44629A Motor 1
2 52746A Motor Cord Cover 1
3 50664A Blower Wheel 1
4 54861A Housing-Fan Assembly 1
5 48410A Transformer Base 1
6 52747A Slot cover 1
7 50502A Inner Air Band-Burner 1
8 50503A Outer Air Band-Burner 1
9 52643A Coupling 1
10 55634A Oil Line Assembly 1
11 197216 Pump Fuel Unit 1
12 193107 Oil Line Assembly 1
13 54235A Gun Assembly 1
A 50330A Nozzle Adapter 1
B 53529A Electrode Assembly (LH) 1
C 53530A Electrode Assembly (RH) 1
D 51816A Electrode Clamp 1
E 54008A Oil-Pipe Fitting 1
F 56427A Support Assembly 1
14 193615 Flange, Burner 1
15 59308A Air Tube 1
16 51817A Air Cone - Burner 1
17 193871 Gasket - Burner 2
18 59747A Valve, Sol., Burner, 115V
(100C only) 1
19 195609 Locknut, Oil Line 1
20 51818A Flex Conduit, Burner (not shown)
Ref. Part No. Description Qty.
Delco Versa 100/Versa 100C

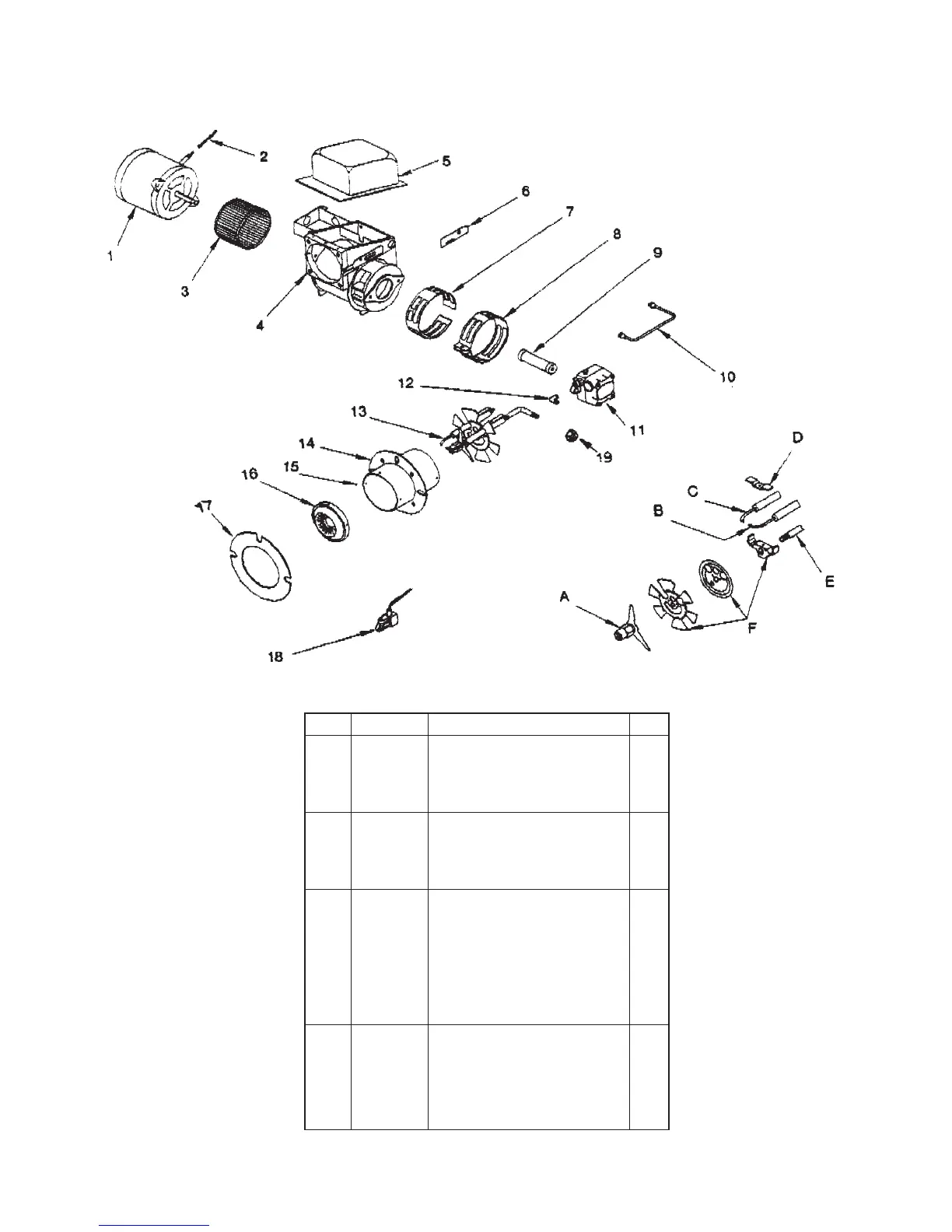

Burner Drawing & Parts List
*Note: Ref #18 - 50715A, Bolt Fuel Valve, & 58142A, Seal Washer Fuel Valve Qty. (2) not shown
