Best practices overview for AC power connections
To assure fault tolerant power, external AC power must be supplied from independent,
customer-supplied, power distribution units (PDUs) as shown in Figure 1 on page 14.
For systems operating from three phase AC power, two independent and isolated AC
power sources are recommended for the two individual power zones in each rack of
the system. This provides for the highest level of redundancy and system availability.
If independent AC power is not available, there is a higher risk of data unavailability
should a power failure occur, including individual phase loss occurring in both power
zones.
Before connecting external AC power to storage bays, verify that the bays have been
placed in their final position as explained in the installation guide.

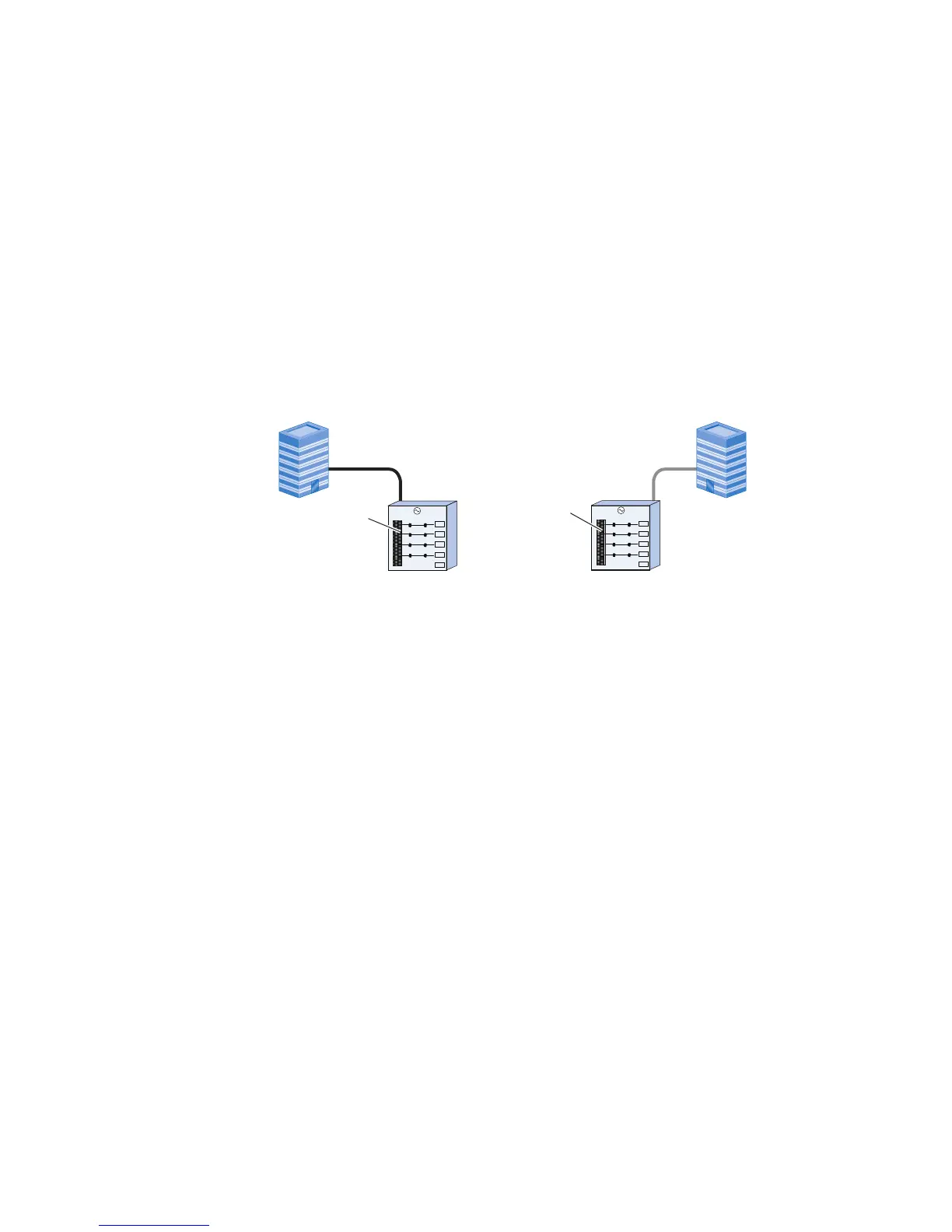

Figure 1 Two independent customer-supplied PDUs
Customer’s
PDU 1
Customer’s
PDU 2
Circuit
breakers
on (|)
Circuit
breakers
on (|)
Circuit breakers - Numbers
27
28
29
30
Circuit breakers - Numbers
...
8
9
10
11
...
Power feed 1
Power feed 2
Best Practices Guide for AC Power Connections
14 Best Practices Guide for AC Power Connections PowerMax 2000 and PowerMax 8000 with PowerMaxOS

Dell EMC PowerMax Series Specifications

General

Model	PowerMax 2000, PowerMax 8000
Operating System	PowerMaxOS
Latency	Sub-millisecond
Storage Type	Flash
Drive Types	NVMe Flash
Data Services	Thin Provisioning, Quality of Service (QoS)
Connectivity	FC, iSCSI
Replication	Remote Replication (Synchronous, Asynchronous)
Management	Unisphere
Form Factor	Rack-mounted
Host Interface	Fibre Channel (FC), iSCSI, FCoE, InfiniBand
Data Protection	RAID, Snapshots, Replication
Architecture	Scale-out
RAID Levels	RAID 5, RAID 6
Maximum IOPS	Up to 15 million (PowerMax 8000)
Power Supply	Redundant power supplies
