Dell EMC PowerMax Series Best Practices Guide

Applying PDU labels
Procedure
1. For each bay, locate and complete each PDU label.
Note
For three-phase power, enter data only in the P1 column.
2. Place each label on the rear cabinet sidewall for side A and B.

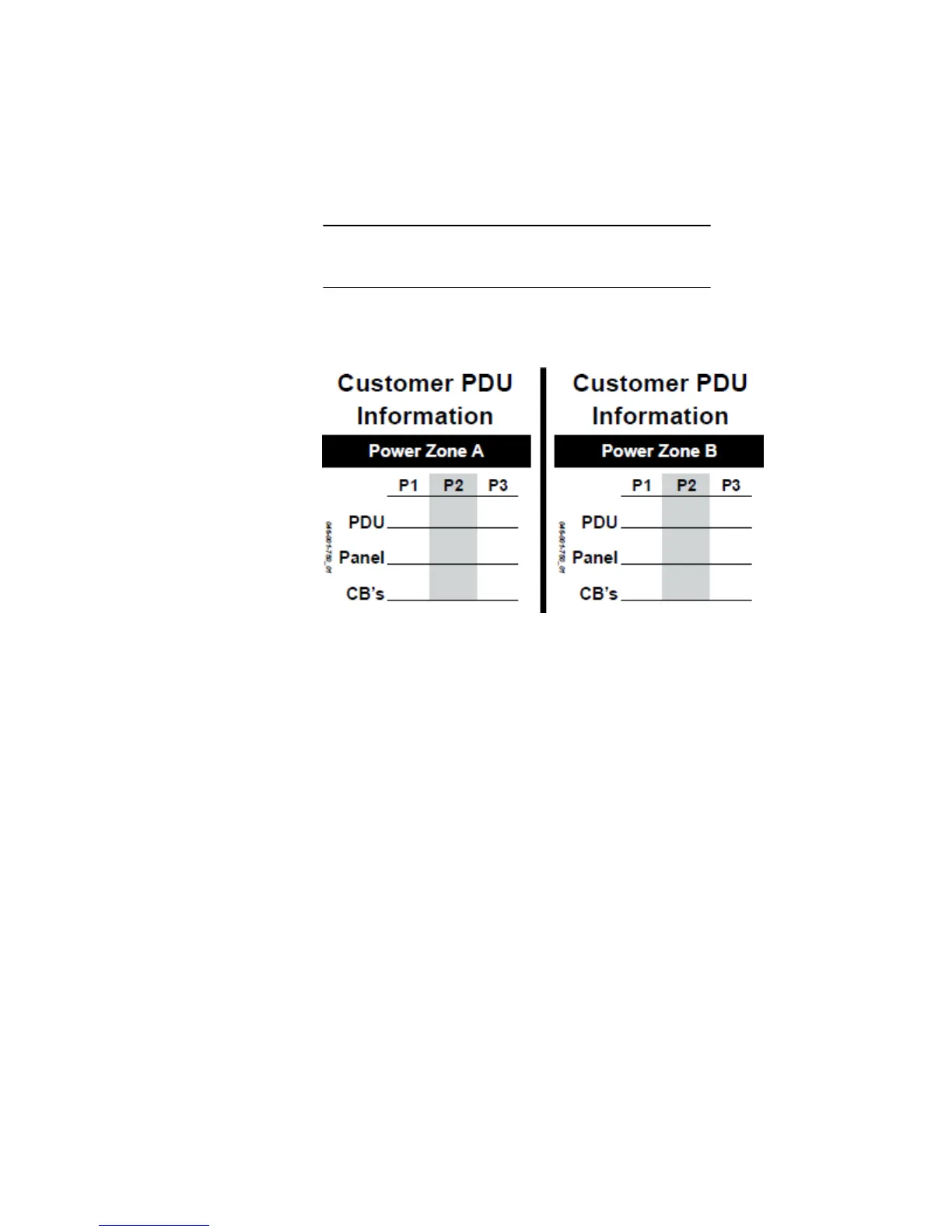

Figure 8 PDU label , single-phase and three-phase
3. For third-party racks, do one of the following:
l
For three-phase power: Using plastic ties, attach the PDU connection tag to
the main AC power cable connected to zone A and B. Place the label close to
the plug but on the side of the rack where it will not interfere with any rails.
l
For single-phase power: Using plastic ties, attach the PDU connection tag to
the P1 AC power cable connected to zone A and B. Place the label close to
the plug but on the side of the rack where it will not interfere with any rails.
Ground the cabinet
Equipment correctly installed within the cabinet is grounded through the AC power
cables and connectors. In general, supplemental grounding is not required.
If your site requires external grounding (for example, to a common grounding network
beneath the site floor), you can use the grounding lugs provided on each of the
cabinet’s bottom supports.
Best Practices Guide for AC Power Connections
Applying PDU labels 25

Dell EMC PowerMax Series Specifications

General

Model	PowerMax 2000, PowerMax 8000
Operating System	PowerMaxOS
Latency	Sub-millisecond
Storage Type	Flash
Drive Types	NVMe Flash
Data Services	Thin Provisioning, Quality of Service (QoS)
Connectivity	FC, iSCSI
Replication	Remote Replication (Synchronous, Asynchronous)
Management	Unisphere
Form Factor	Rack-mounted
Host Interface	Fibre Channel (FC), iSCSI, FCoE, InfiniBand
Data Protection	RAID, Snapshots, Replication
Architecture	Scale-out
RAID Levels	RAID 5, RAID 6
Maximum IOPS	Up to 15 million (PowerMax 8000)
Power Supply	Redundant power supplies
