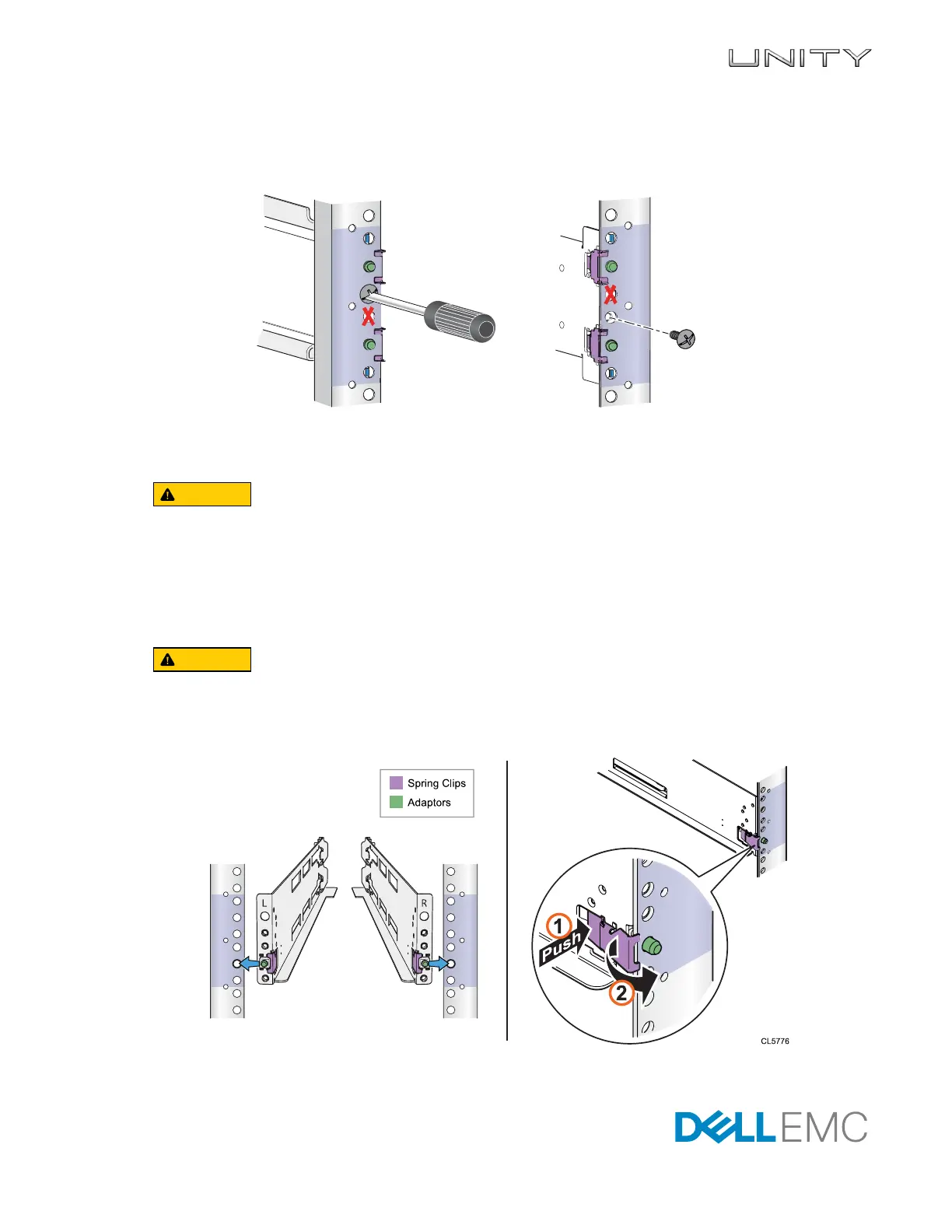

4. From the rear of the cabinet, secure the rails in place using one M5 screw on each rail:
5. Next, working from the front of the cabinet, align the adaptor with the mounting hole on the front of
the rack, as shown in the image below in Step 6.
CAUTION
Ensure the holes on the rail line up with the holes on the cabinet. This will ensure proper alignment of
the rails. Also, check that the rails are level from front-to-back and left-to-right. Ensure you are using
the same unit markers from the front of the cabinet to the rear of the cabinet.
6. Push in on the spring clip while pulling the rail forward. When the spring clip is forward of the front
rack channel, and the adaptor is in the mounting holes, release the spring clip so it holds the rail in
place.
CAUTION
Ensure the spring clip is securely attached to the channel. It may be necessary to push in on the clip
to assist in snapping it into place.
CL5775
Right Rail
(viewed from rear)
Left Rail
(viewed from rear)
View from front of rack
