Main Memory
The eight DIMM sockets on the system board can accommodate combinations
of 32- and 128-MB DIMMs up to a total memory capacity of 1024 MB (1 GB).
The system is shipped with high-speed (60-ns) 3.3-V EDO DIMMs installed.
When reinstalling DIMMs, use the following guidelines:
• Install a DIMM in socket DIMM A before socket DIMM B, in socket
DIMM B before socket DIMM C, and so on.
• If you are installing DIMMs of different sizes, install them in order of
decreasing capacity, beginning with socket DIMM A.
• DIMMs need not be installed in pairs, but gold connectors are required.
See “DIMMs” in Chapter 4 for information on removing and replacing DIMMs.
System Board Jumpers

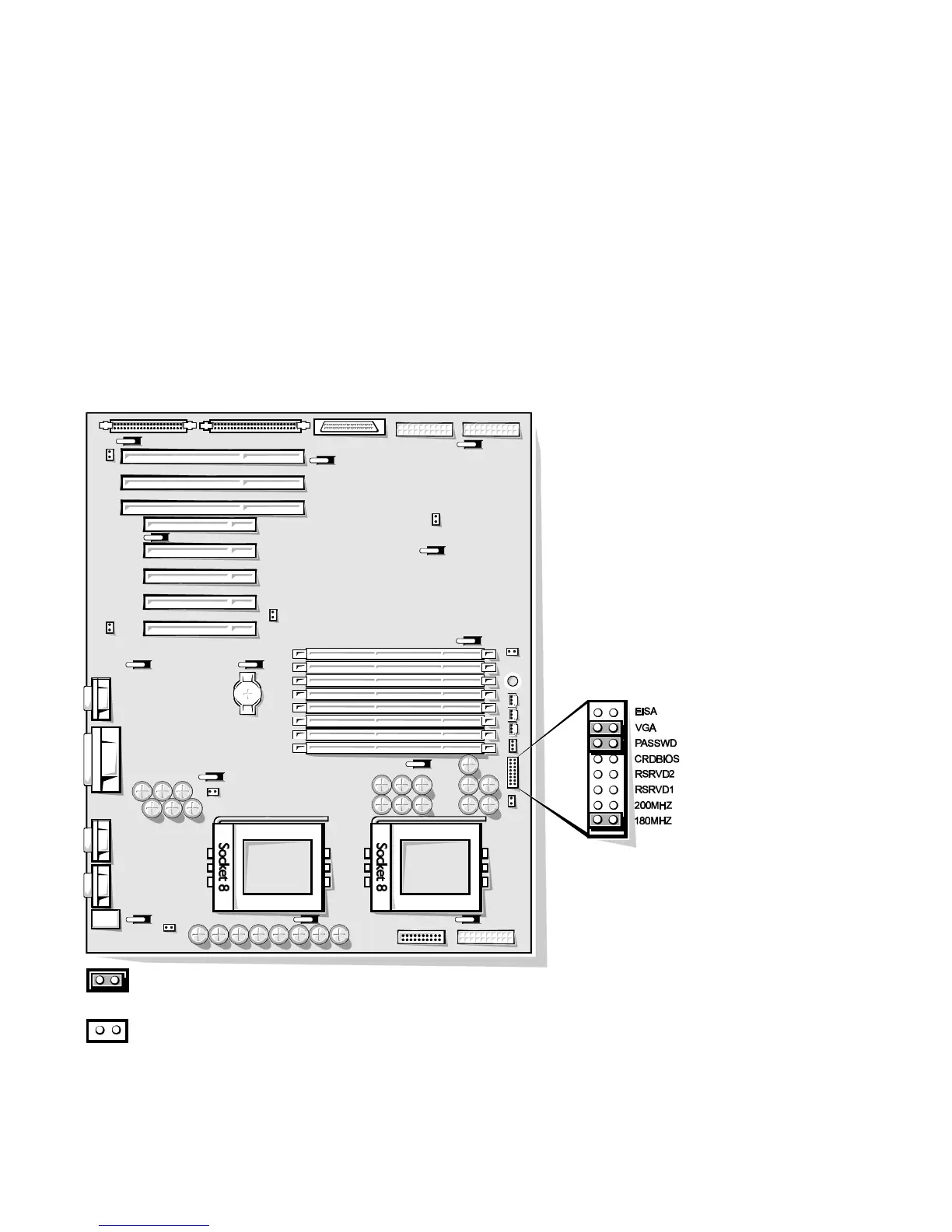

Figure 1-19. System Board Jumpers
jumpered
unjumpered
