4-14 Dell PowerEdge 4100/180 and 4100/200 Systems Service Manual
Power Connector Panel

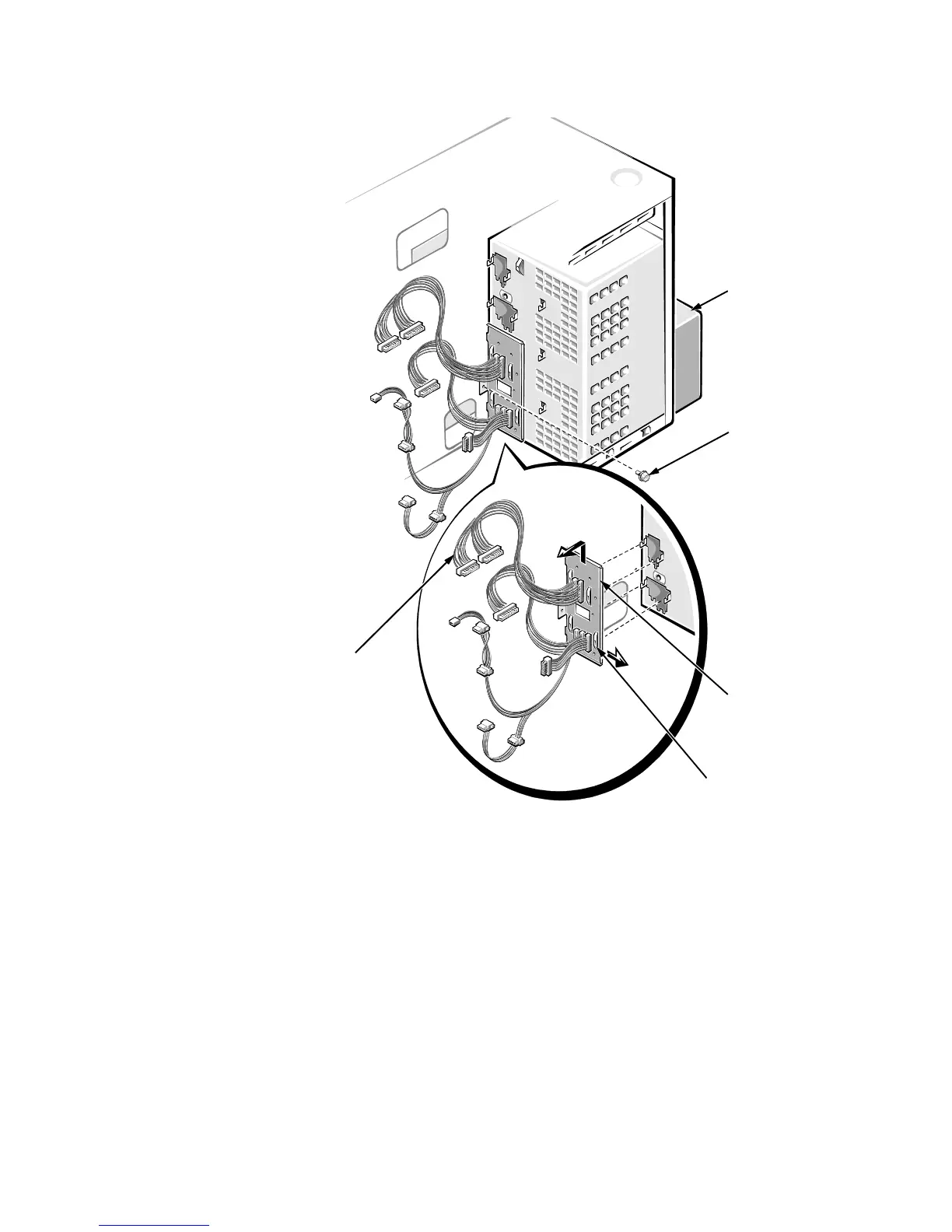

Figure 4-13. Power Connector Panel Removal (Nonredundant
Systems)
To remove the power connector panel, follow these steps:
1. Disconnect the power supply from the power connector panel by sliding
the power supply toward the back of the computer approximately
1 inch.
2. Disconnect all power connector panel cables (from the system board,
the SCSI backplane board, and so forth).
3. Unscrew the retainer screw.
4. Disengage the panel from the four hooks holding it to the computer
chassis, and then lift the panel away from the computer.
power
connector
panel
power supply
hook slots (4)
retainer
screw
power
connector
panel
cables (5)
