4-18 Dell PowerEdge 4100/180 and 4100/200 Systems Service Manual
Expansion Cards

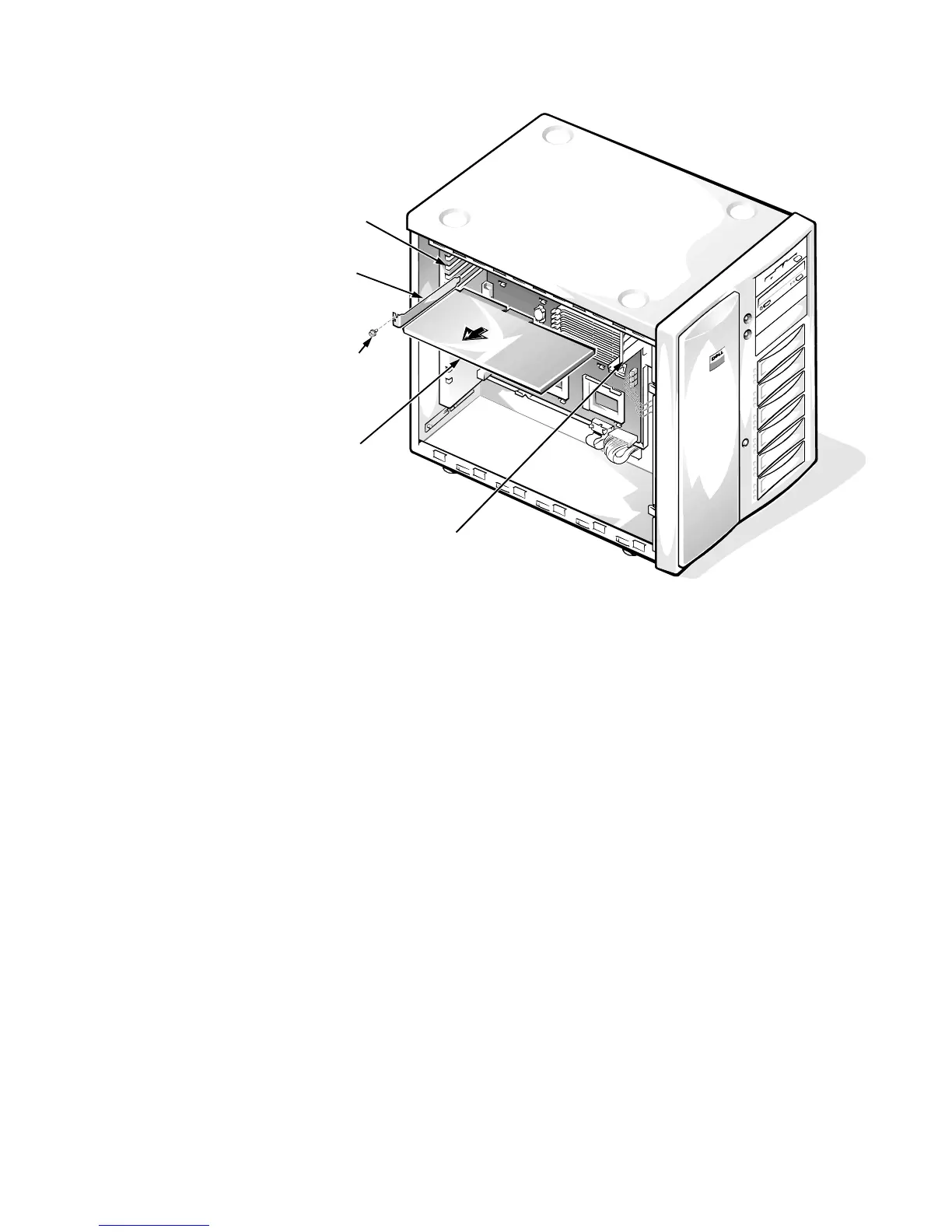

Figure 4-17. Expansion Card Removal
To remove an expansion card, follow these steps:
1. Remove the left computer cover.
2. Disconnect any cables connected to the expansion card.
3. Remove the retaining screw from the card-mounting bracket.
4. If the card is a full-length expansion card, unlock the locking cam on
the locking card guide.
5. Grasp the expansion card by its corners, and carefully remove it from
the expansion-card connector.
expansion card
card-slot opening
card-mounting
bracket
retaining screw
locking card guide
