4-10 Dell PowerEdge 4100/180 and 4100/200 Systems Service Manual

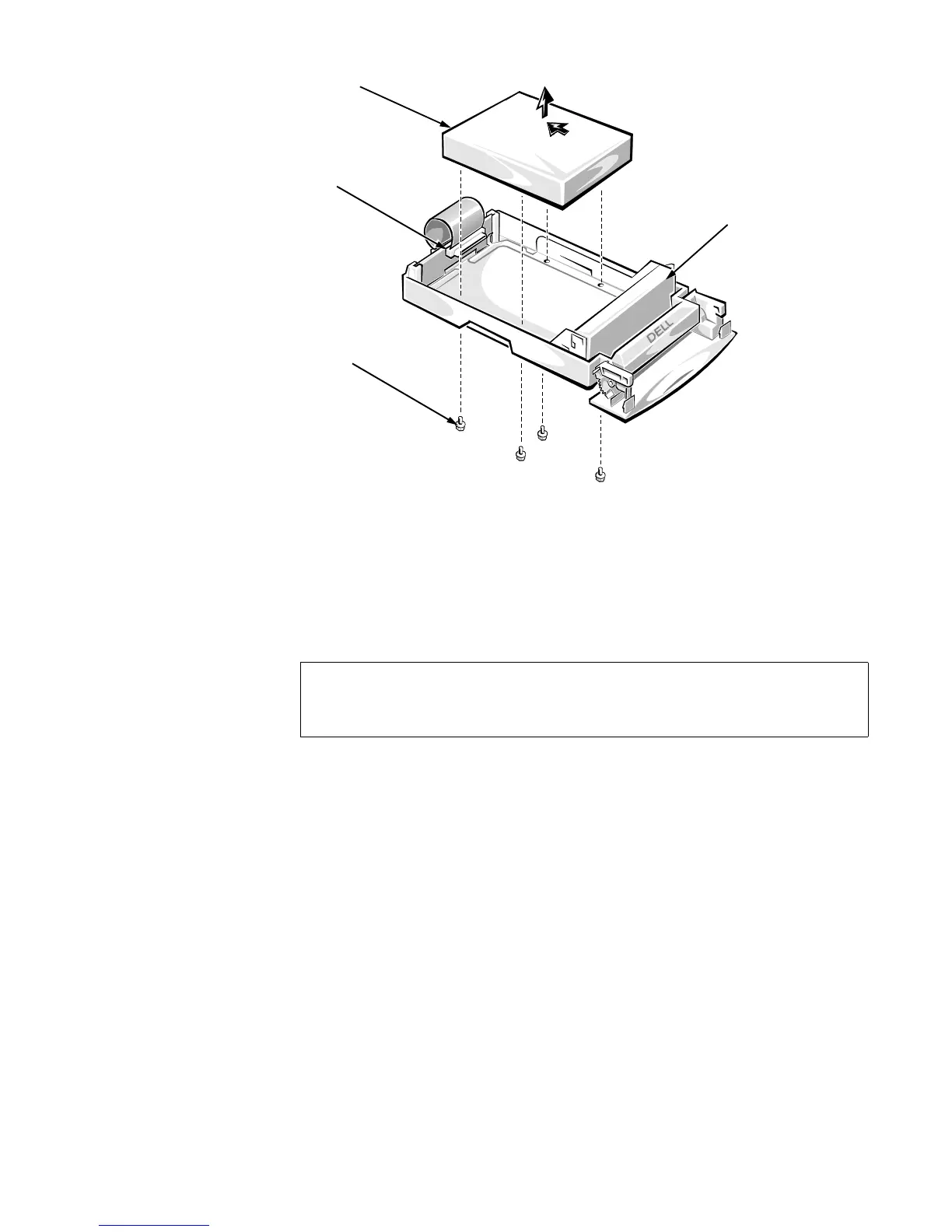

Figure 4-9. Hard-Disk Drive Removal
5. Remove the four mounting screws that attach the hard-disk drive to the
carrier.
6. Disconnect the hard-disk drive from the connector on the back of the
carrier, and lift the drive from the carrier.
After you replace the drive and reinstall the carrier in the bay, turn on the sys-
tem. The online indicator (green) lights, indicating power is being supplied to
the hard-disk drive. With the controller connected, the activity LED is activated
when the controller spins up the drive.
CAUTION: When disconnecting the hard-disk drive from the con-
nector, grasp the connector, not the cable, to avoid damaging the
connector.
screw (4)
connector
carrier
hard-disk drive
