About Your Dell Projector 5

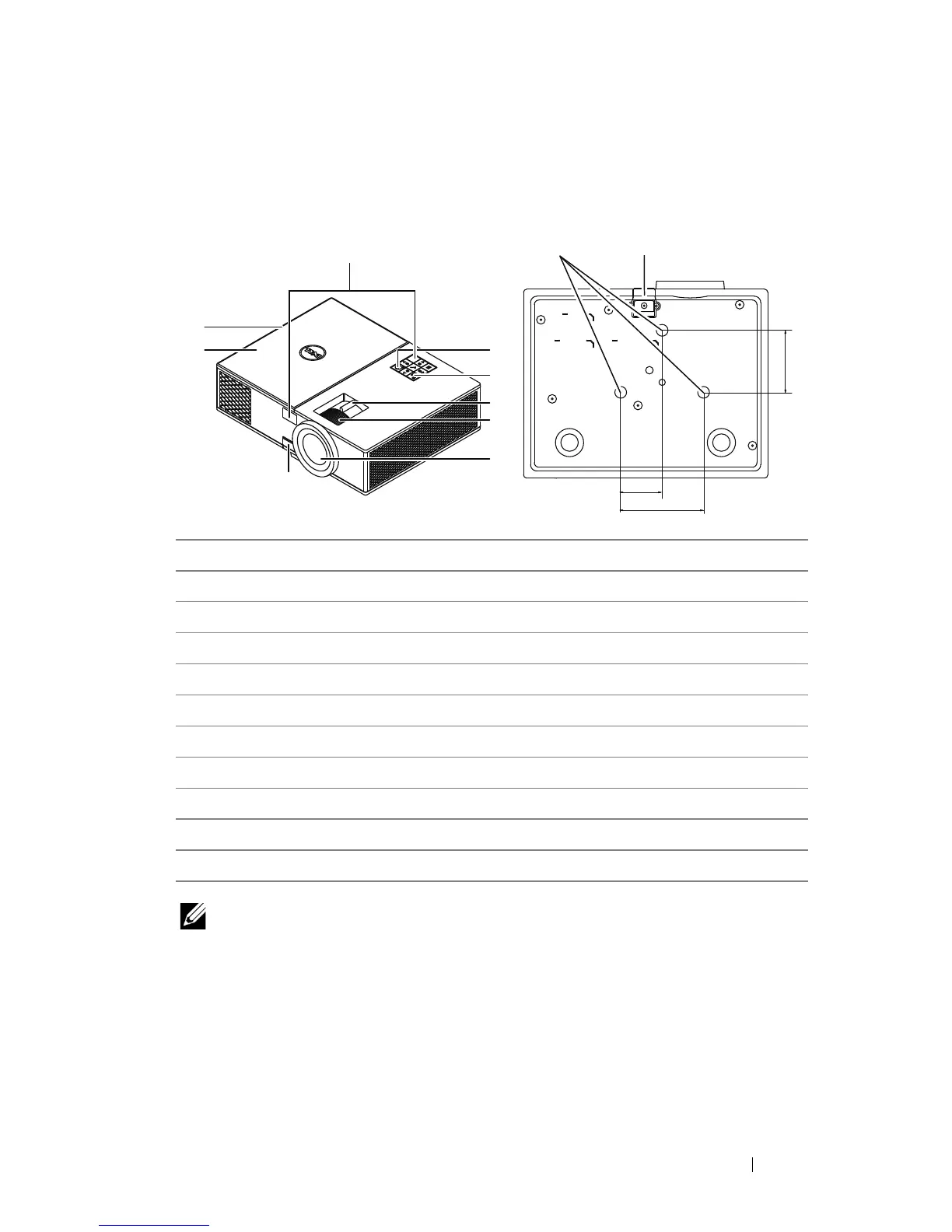

Projector Top and Bottom View
NOTE: Ceiling mount screw hole M3 x 6.5 mm depth.
Recommended torque < 15 kgf-cm.
1IR receivers
2 Power button
3 Status indicators
4 Zoom tab
5Focus ring
6 Lens
7 Elevator button for height adjustments
8 Top cover for wireless display adapter and lamp module access
910W speaker
10 Mounting holes for ceiling mount
11 Elevator foot
6
1
5
4
3
2
9
8
7
10
11
82.30
110.00
55.00
Top View Bottom View
