6 About Your Dell Projector

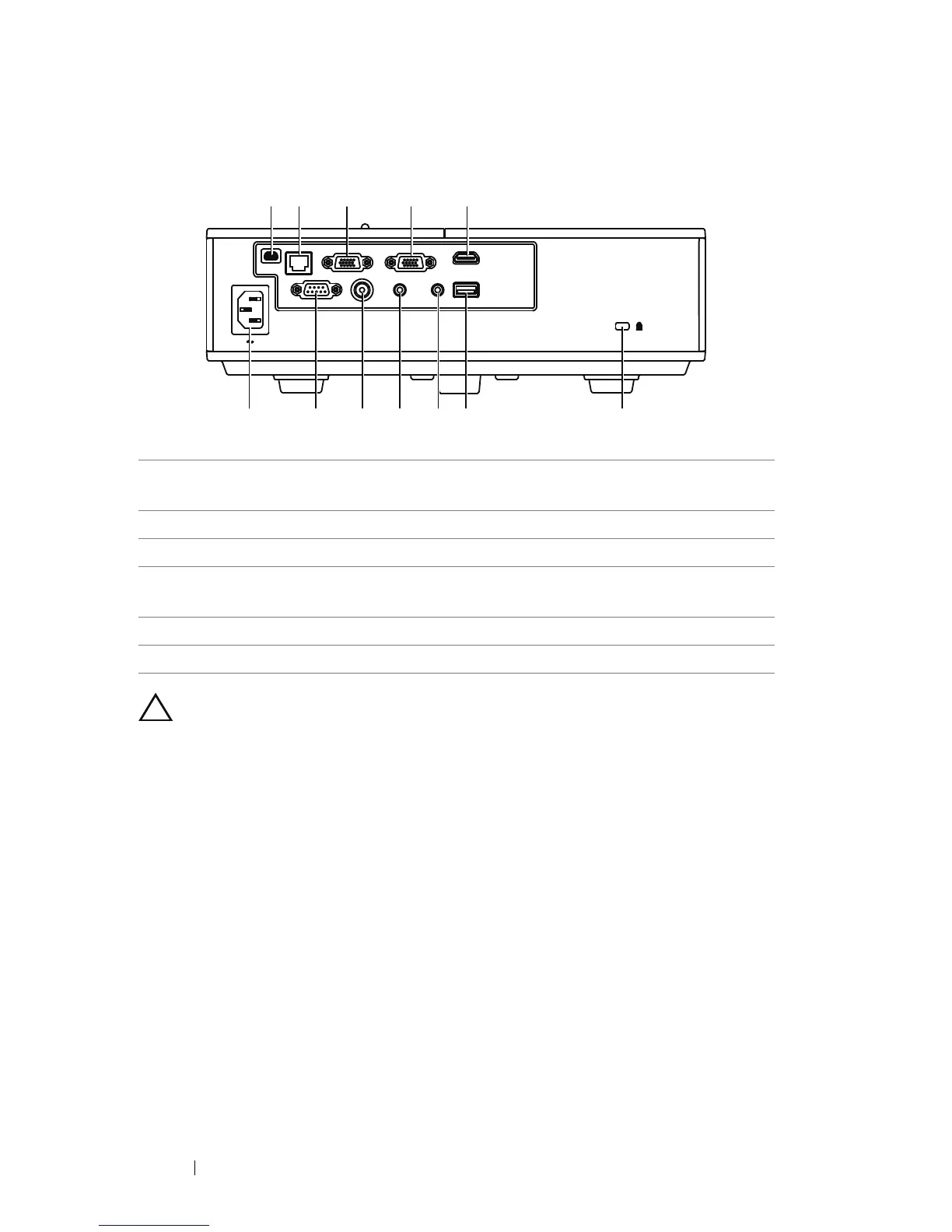

Projector Connections
CAUTION: Before you begin any of the procedures in this section,
follow the Safety Instructions as described on page 7.
1 Mini USB (mini type B)
connector for firmware upgrade
7 + 5V/1A DC out connector
2 RJ-45 connector 8 Audio output connector
3 VGA input connector 9 Audio input connector
4 VGA output (monitor loop
through) connector
10 Composite Video connector
5 HDMI connector 11 RS232 connector
6 Security cable slot 12 Power cord connector
