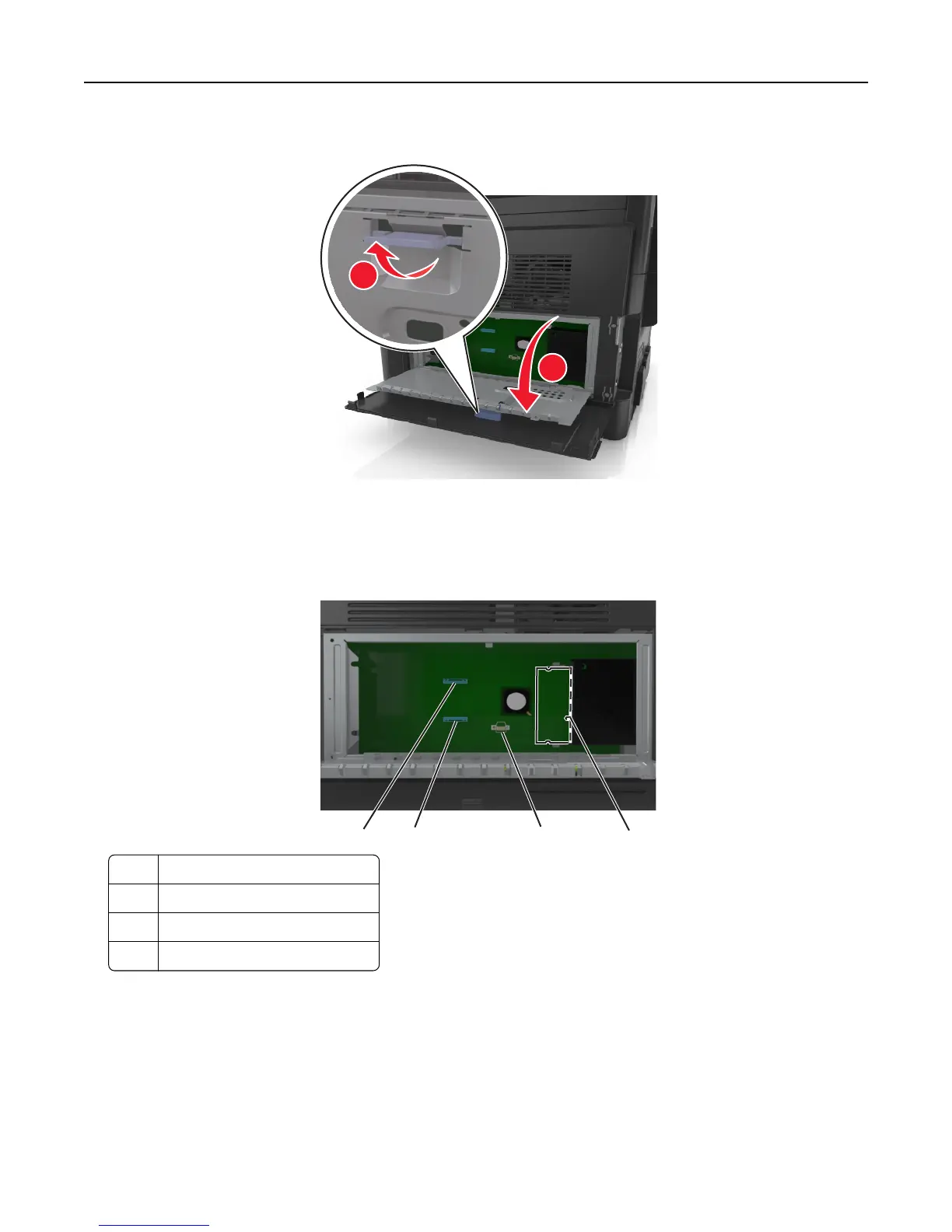

2 Open the controller board shield using the blue handle.

3 Use the following illustration to locate the appropriate connector.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.

Touch something metal on the printer before touching any controller board electronic components or

connectors.

1 Memory card connector

2 Option card connector

3 Printer hard disk connector

4 Internal Solutions Port connector

Additional printer setup 29
