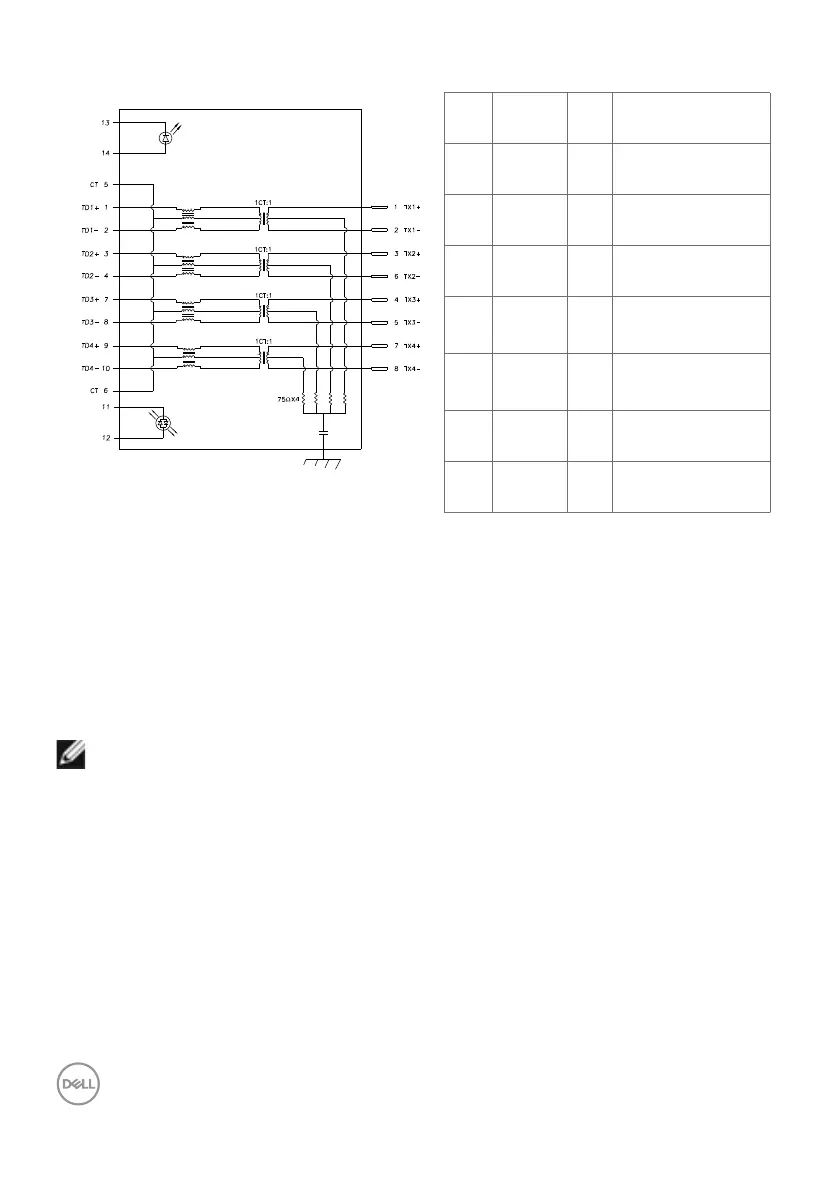

RJ45 port (connector side)
PHY SIDE
CABLE SIDE
RJ45
GREEN
GREEN
ORANGE
SHIELD
GROUND
2kV, 1000pF
Pin Signal Pin Signal
1 TD1 + 8 TD3 -
2 TD1 - 9 TD4 +
3 TD2 + 10 TD4 -
4 TD2 - 11 GREEN_OR-
ANGE
5 CT 12 GREEN_OR-
ANGE
6 CT 13 GREEN
7 TD3 + 14 GREEN
Driver installation
Install the Realtek USB GBE Ethernet Controller Driver available for your system. This
is available for download at https://www.dell.com/support under the “Driver and
download” section.
Network (RJ45) data rate via USB-C max speed is 1000 Mbps.
NOTE: This LAN port is 1000Base-T IEEE 802.3az compliant, supporting Mac
Address (Printed on model label) Pass-thru, Wake-on-LAN (WOL) from standby
mode (S3 only) and PXE Boot function, these 3 features depend on BIOS setting
and OS version.
To Next Page
