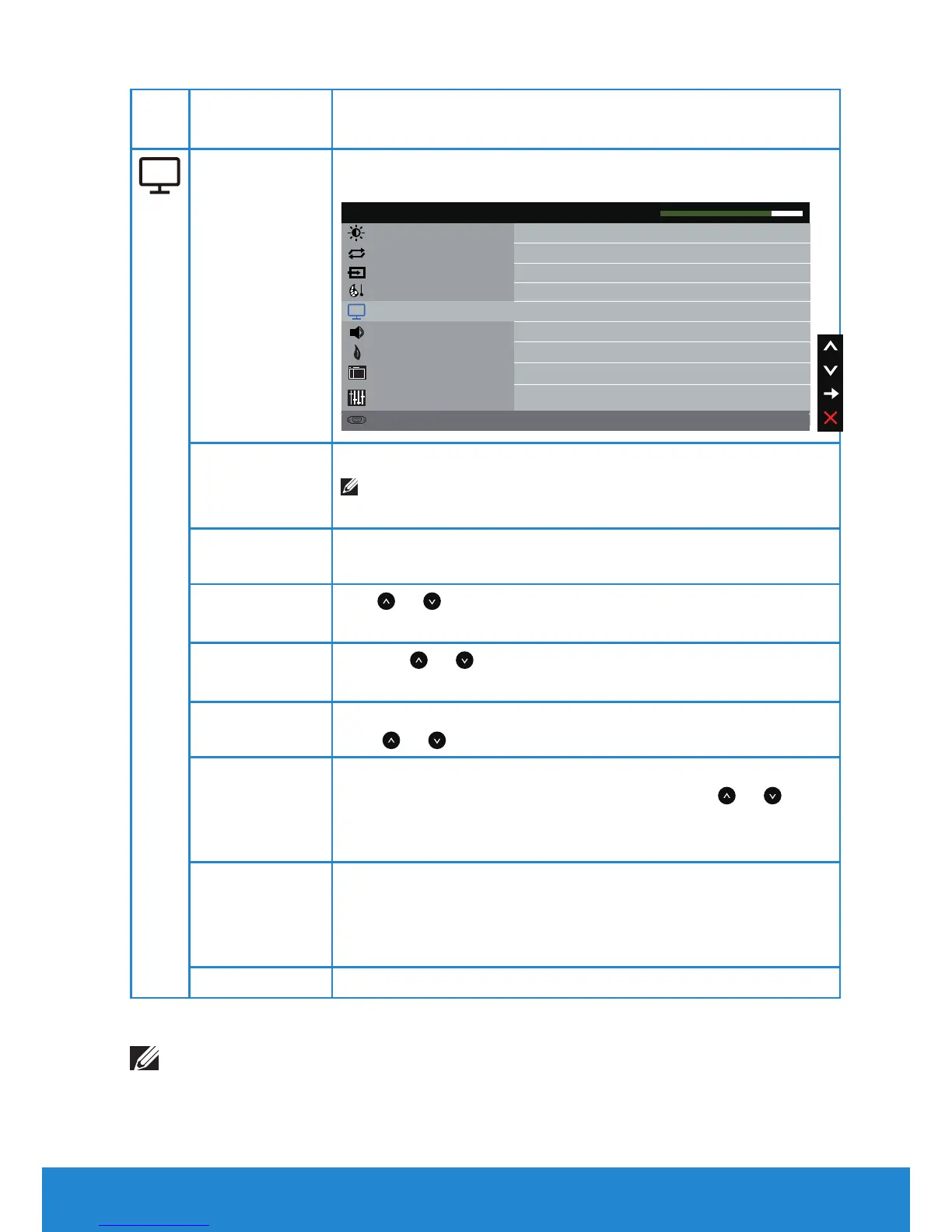

Operating the Monitor 39
Icon Menu and
Submenus
Description
Display Use the Displays menu to adjust the monitor's display
settings.
Brightness / Contrast
Resolution: 1280x800, 60Hz Maximum: 1920x1080, 60Hz
Dell C5517H Energy Use
Auto Adjust
Input Source
Aspect Ratio Wide 16 : 9
Monitor Sleep
Horizontal Position
Color
Sleep After Timeout
50
50
Display
Vertical Position
Sharpness 50
50Pixel Clock
Phase
37
Reset Display
Energy
Menu
Others
Audio
Aspect Ratio
Adjusts the image ratio as Wide 16:9, 4:3, or 5:4.
NOTE: Wide 16:9 adjustment is not required at
maximum preset resolution 1920 x 1080.
Monitor Sleep
Monitor sleep is to define the action after the source has
no signal. It will go to sleep or never go to sleep.
Horizontal
Position
Use or the buttons to adjust image left and right.
Minimum is '0' (-). Maximum is '100' (+).
Vertical Position
Use the or buttons to adjust image up and down.
Minimum is '0' (-). Maximum is '100' (+).
Sharpness
This feature can make the image look sharper or softer.
Use or to adjust the sharpness from '0' to '100'.
Pixel Clock
The Phase and Pixel Clock adjustments allow you to
adjust your monitor to your preference. Use or
buttons to adjust for best image quality. Minimum is ‘0’
(-). Maximum is ‘100’ (+).
Phase
If satisfactory results are not obtained using the Phase
adjustment, use the Pixel Clock (coarse) adjustment and
then use Phase (fine), again. Minimum is ‘0’ (-). Maximum
is ‘100’ (+).
Reset Display
Select this option to restore default display settings.
NOTE: Horizontal Position, Vertical Position, Pixel Clock and Phase
adjustment are only available for VGA input.
