Installing 2.5–inch drive assembly
1 Insert the drive assembly into the slot on the computer.
2 Slide the drive assembly toward the connector until it clicks into place.
3 Install the cover.
4 Follow the procedure in After working inside your computer.
WLAN card
Removing the WLAN card
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a cover
b hard drive assembly

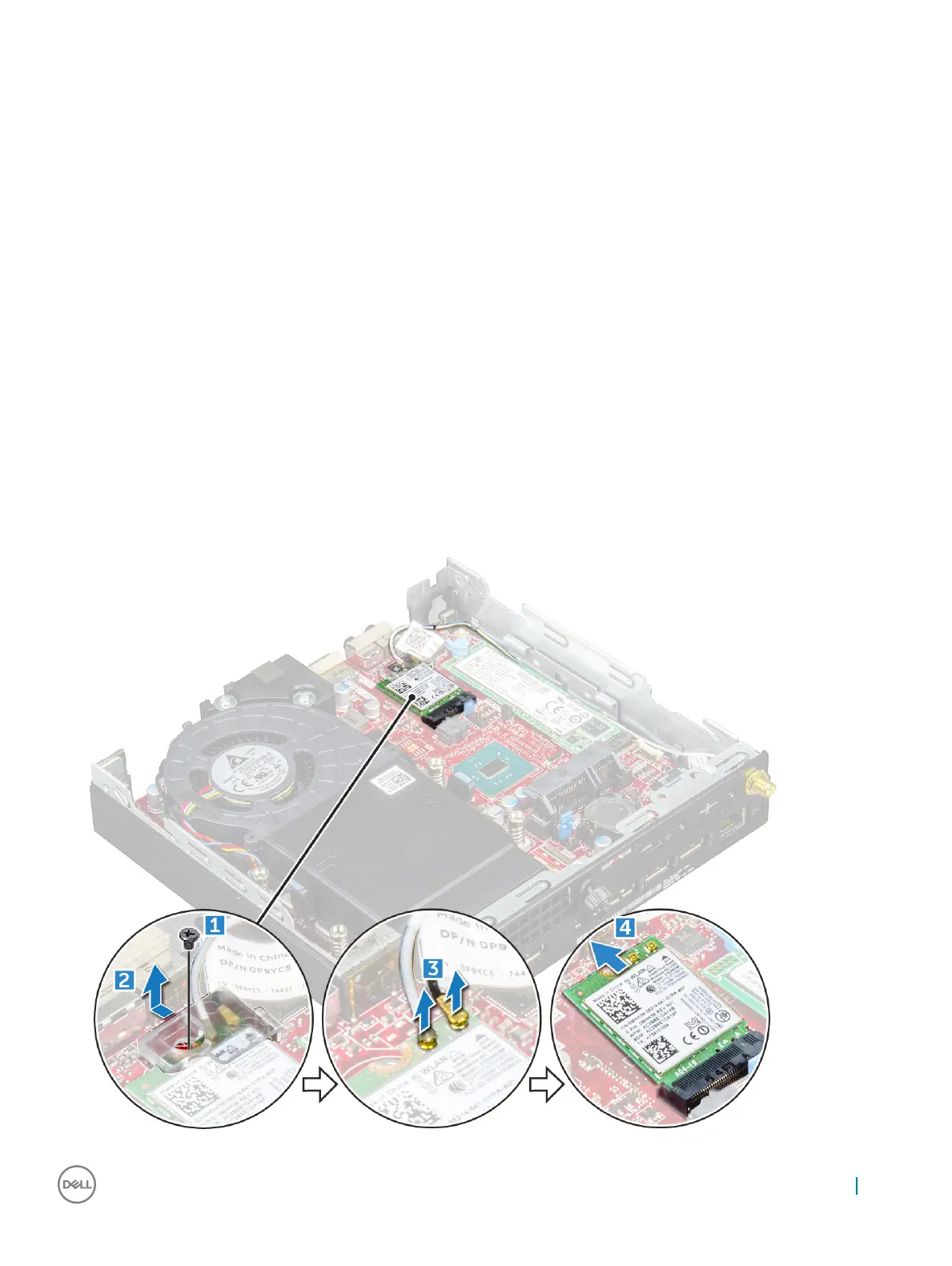

3 To remove the WLAN card:
a Remove the screw that secures the plastic tab [1].
b Release the plastic tab to access the WLAN cables [2].
c Disconnect the WLAN cables from the connectors on the WLAN card [3].
d Lift the WLAN card from the connector on the system board [4].
Removing and installing components
13
