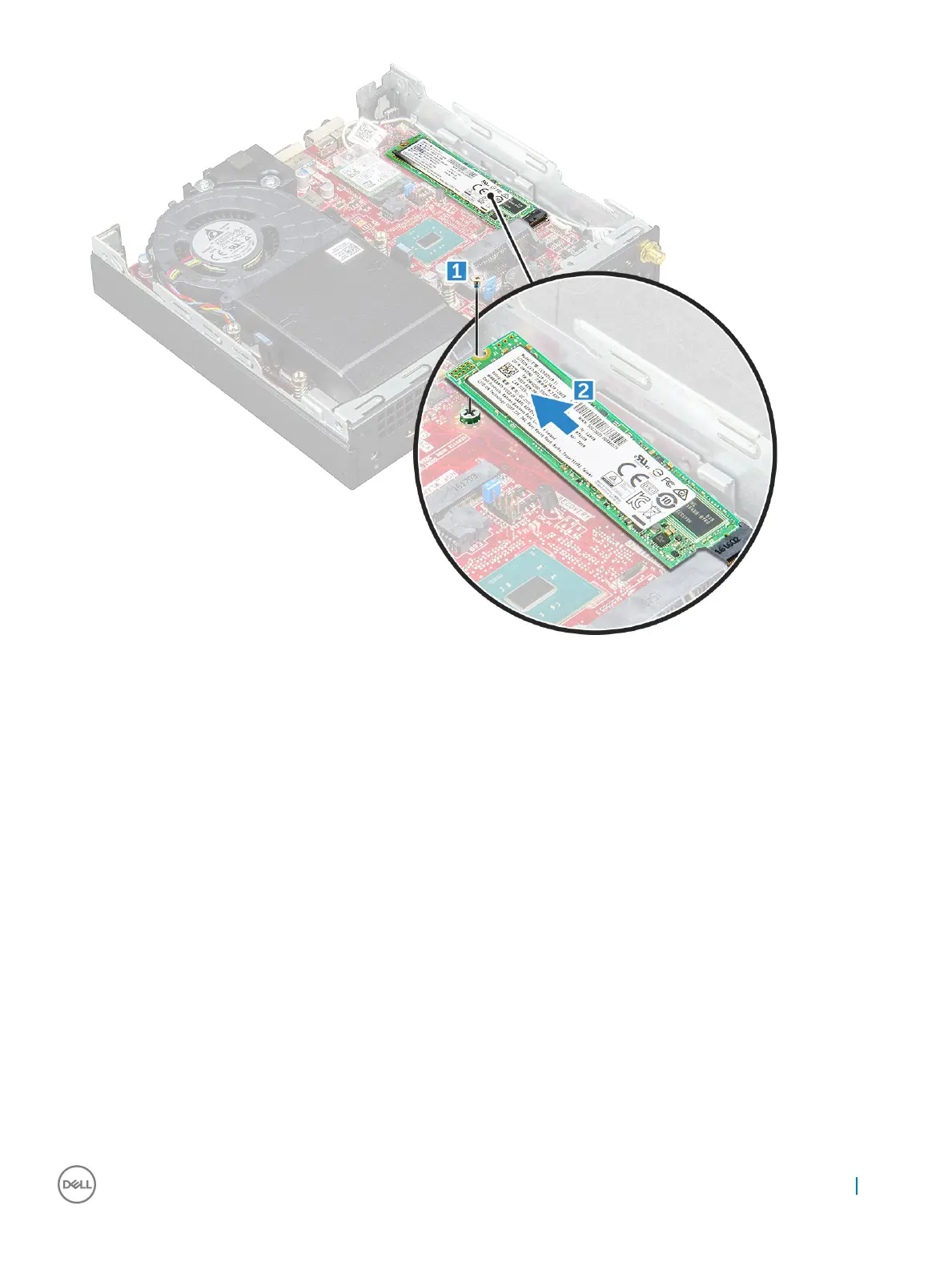

Installing the M.2 PCIe SSD
1 Insert the M.2 PCIe SSD to the connector.
2 Tighten the screw to secure the M.2 PCIe SSD to the system board.
3 Install the:
a 2.5–inch drive assembly
b cover
4 Follow the procedure in After working inside your computer.
System fan
Removing system fan
1 Follow the procedure in Before working inside your computer.
2 Remove the cover.
3 To remove the system fan:
a Press the blue tabs on both sides of the system fan [1].
b Slide and lift the system fan to release it from the computer.
c Turn the system fan over to remove it from the computer [2].
