6 Use the two view slots to align the pivot bar with the two pivot-bar
slots.
NOTICE: Using excessive force to pull the hinge arms into place may damage
the arms or the front panel.
7
Pull the arms toward you until they snap into place.
If the hinge arms don’t snap back into place on the first attempt,
slightly reposition the arms and try again.
8 After the hinge arms clip into place, lower and raise the arms two or
three times to properly seat them.
9 Reattach the front-panel insert.

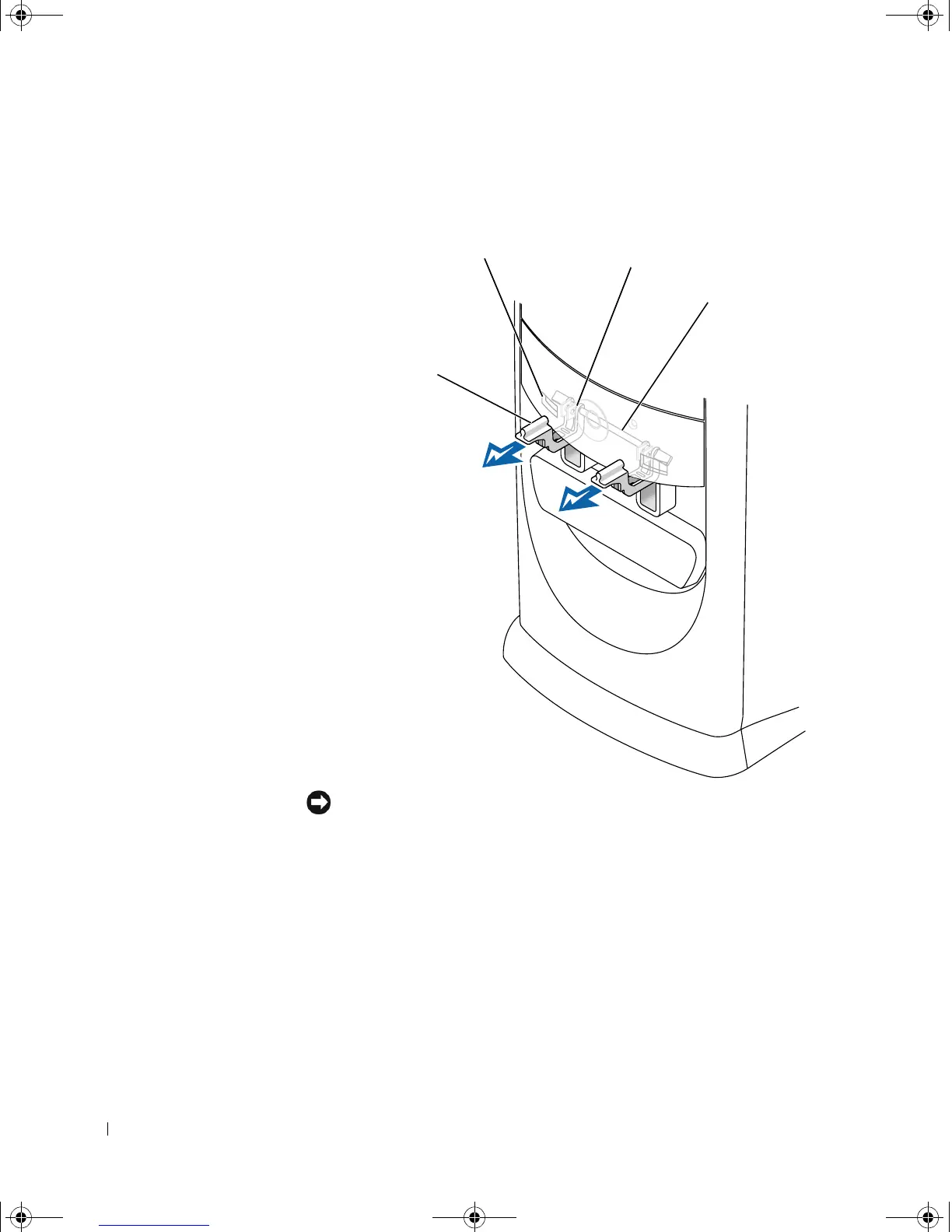

hinge arms in
horizontal
position
pivot bar
view slots (2)
pivot-bar slots (2)
