72 Adding Parts
www.dell.com | support.dell.com

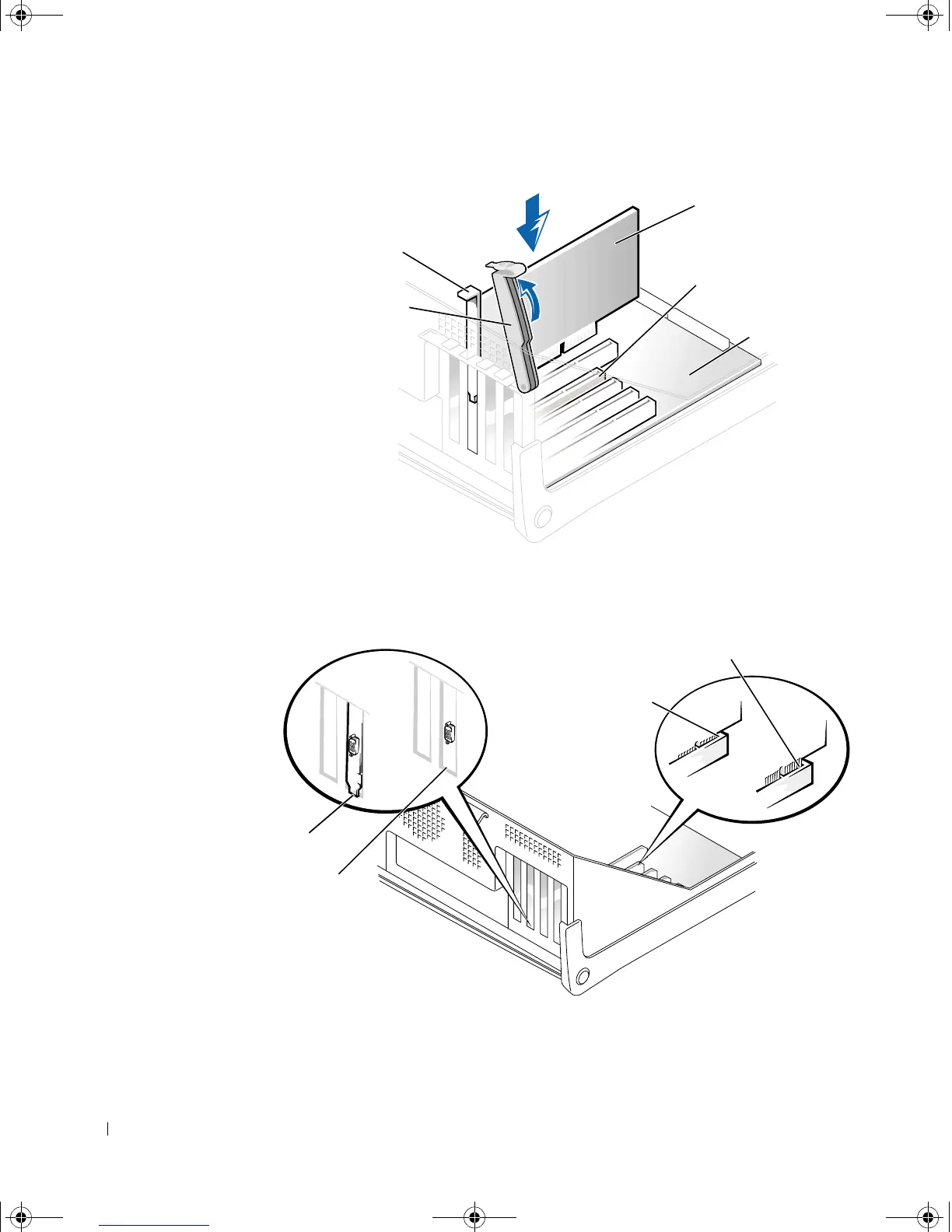

7 Ensure that the card is fully seated in the connector.
card
securing lever
slot connector
system board
card bracket
back of computer
fully seated
not fully seated
bracket caught
outside of slot
bracket within slot
back of computer
