Dell Dimension 8300 Series User Manual

Adding Parts 81

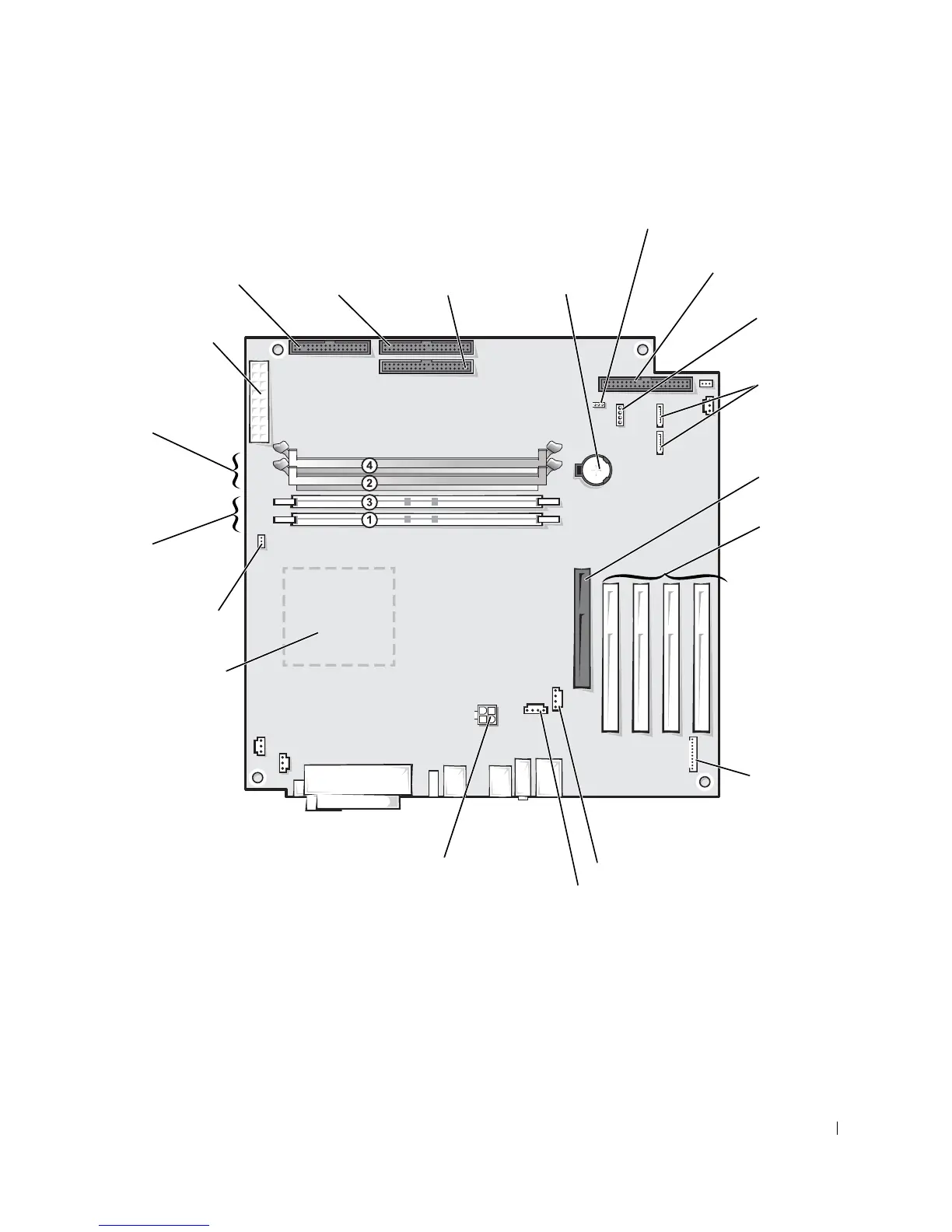

System Board
memory module
connectors
(DIMM1,
DIMM2)
page 87
floppy drive
connector (FLOPPY)
main power connector
(MAIN POWER)
microprocessor
connector (CPU_0)
PCI card
connectors
(PCI1–PCI4)
microprocessor fan
connector (FAN2)
telephony voice modem connector (TELE)*
front-panel audio
cable connector
(FP_AUDIO)
CD audio connector (CD)*
memory module
connectors
(DIMM3, DIMM4)
page 87
AGP slot connector
(AGP)
back of computer
*On computers with optional integrated sound.
CD drive
connector
(SEC IDE)
battery socket
(BATTERY)
page 110
hard drive
connector
(PRI IDE)
password jumper
(PASSWORD)
front-panel connector
(FRONT_PANEL)
serial ATA
connectors
(SATA_0 and
SATA_1)
power connector (PWR)
SCSI LED header
(SCSI_LED)
