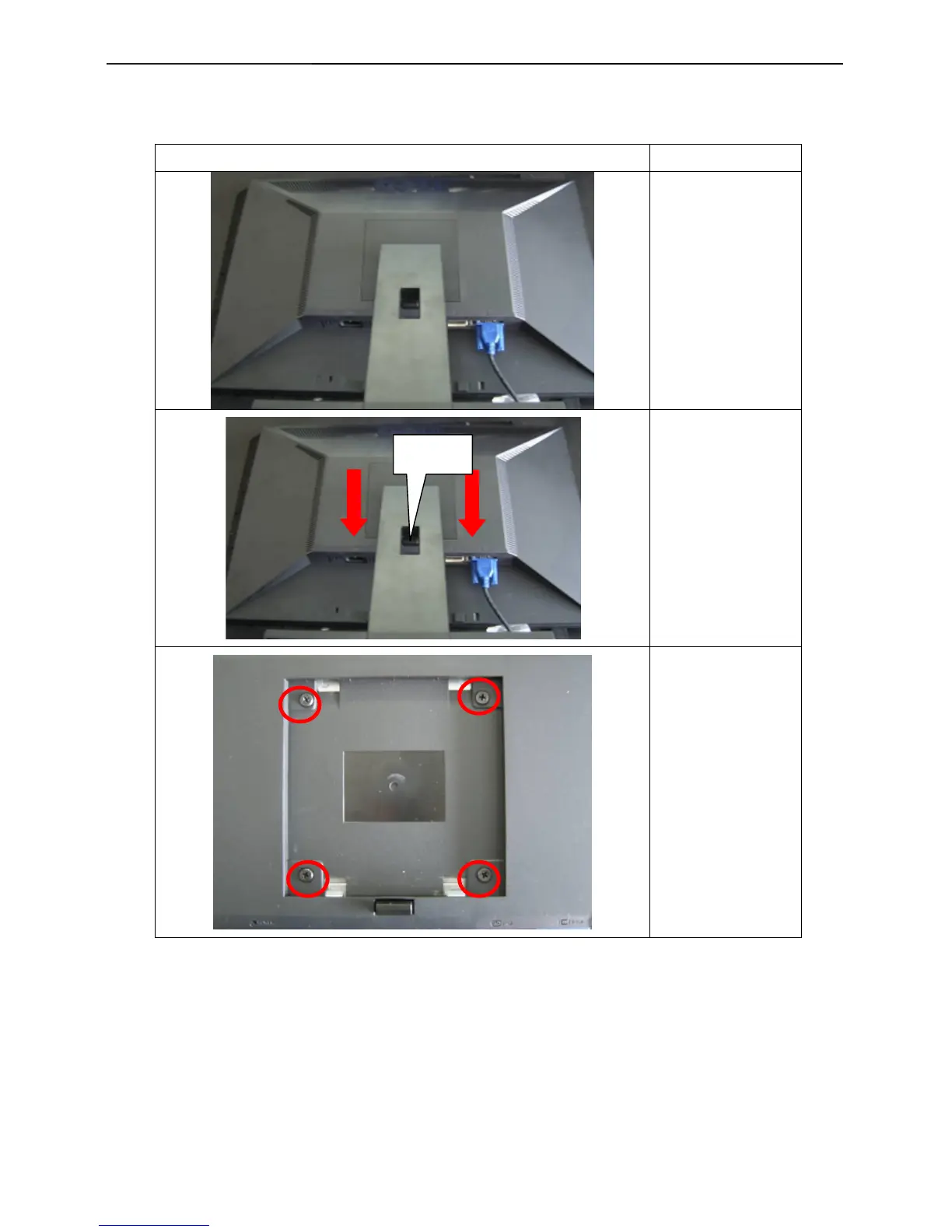

6. Mechanical Instruction
Tools: 2 Power screwdrivers（φ=5mm、L=60mm）; 1 small cross screwdriver; turnbuckle driver;
Setting: Power screwdriver torque A=11 kgF. Cm; torque B=6 kgF. Cm
Fig Remark
1) Put the monitor on
the soft plane table,
to avoid scrapping
the panel.
2) Remove the cable
cover as the arrow
show.
Remove stand：
Press the button，at
the same time pull
out the hinge cover
follow the arrowhead
direction and remove
it, then remove the
hinge.
rear cover:
1.Remove the two
screws and remove
the base by Torque
A.
Button
