Dell E1909Wc - Page 31

19" LCD Color Monitor Dell E1909Wc
31

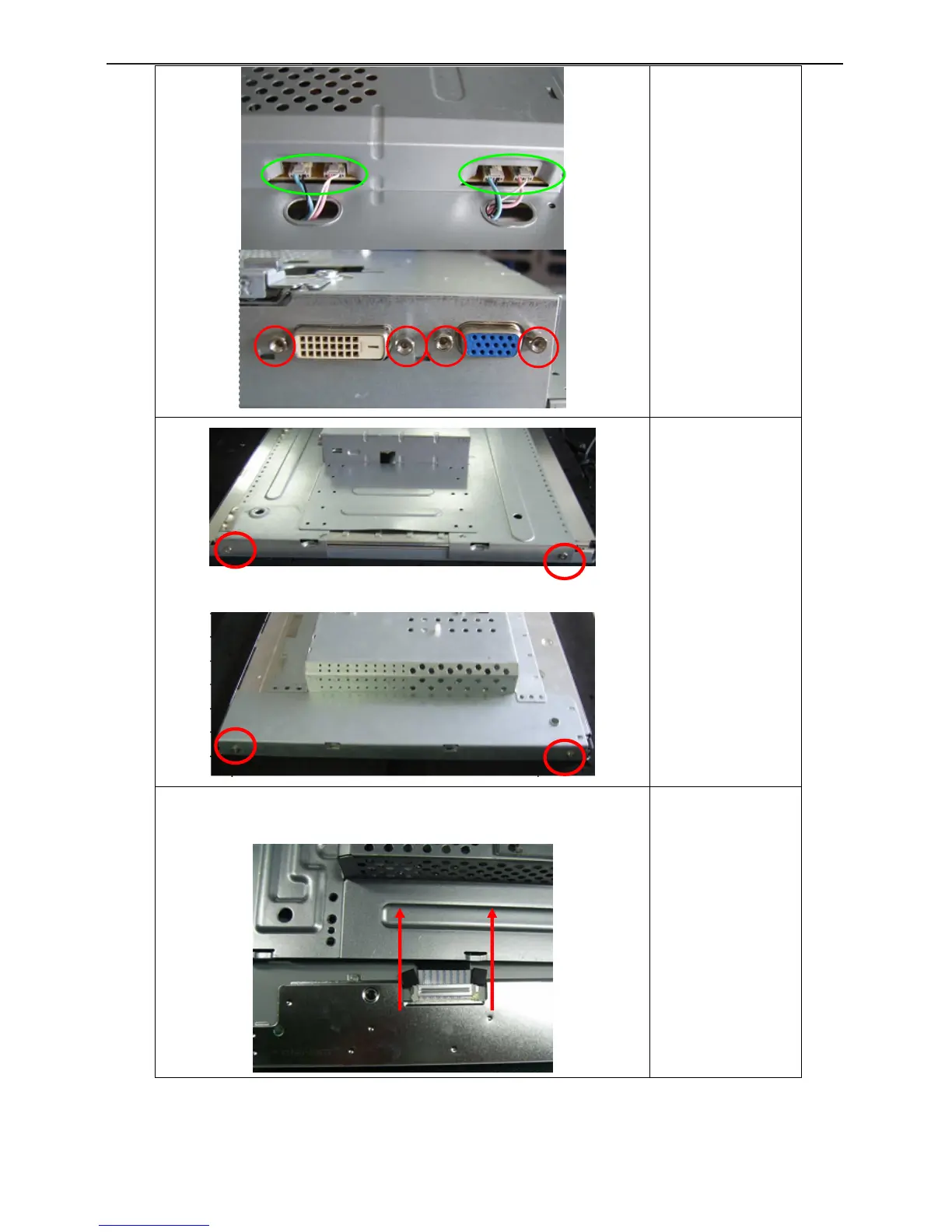

Remove shield:
1.Remove the
screws remarked in
red by Torque B or
by manual and
disconnect
connector remarked
in green.
2.Remove the four
screws and remove
the main frame
by manual or torque
= 3kgF.Cm
3. Remove the main
frame and at the
same time
disconnect the LVDS
connector and
remove the EVA
washers.
Install:
Note: Make LVDS
connector’s metal
side adown
