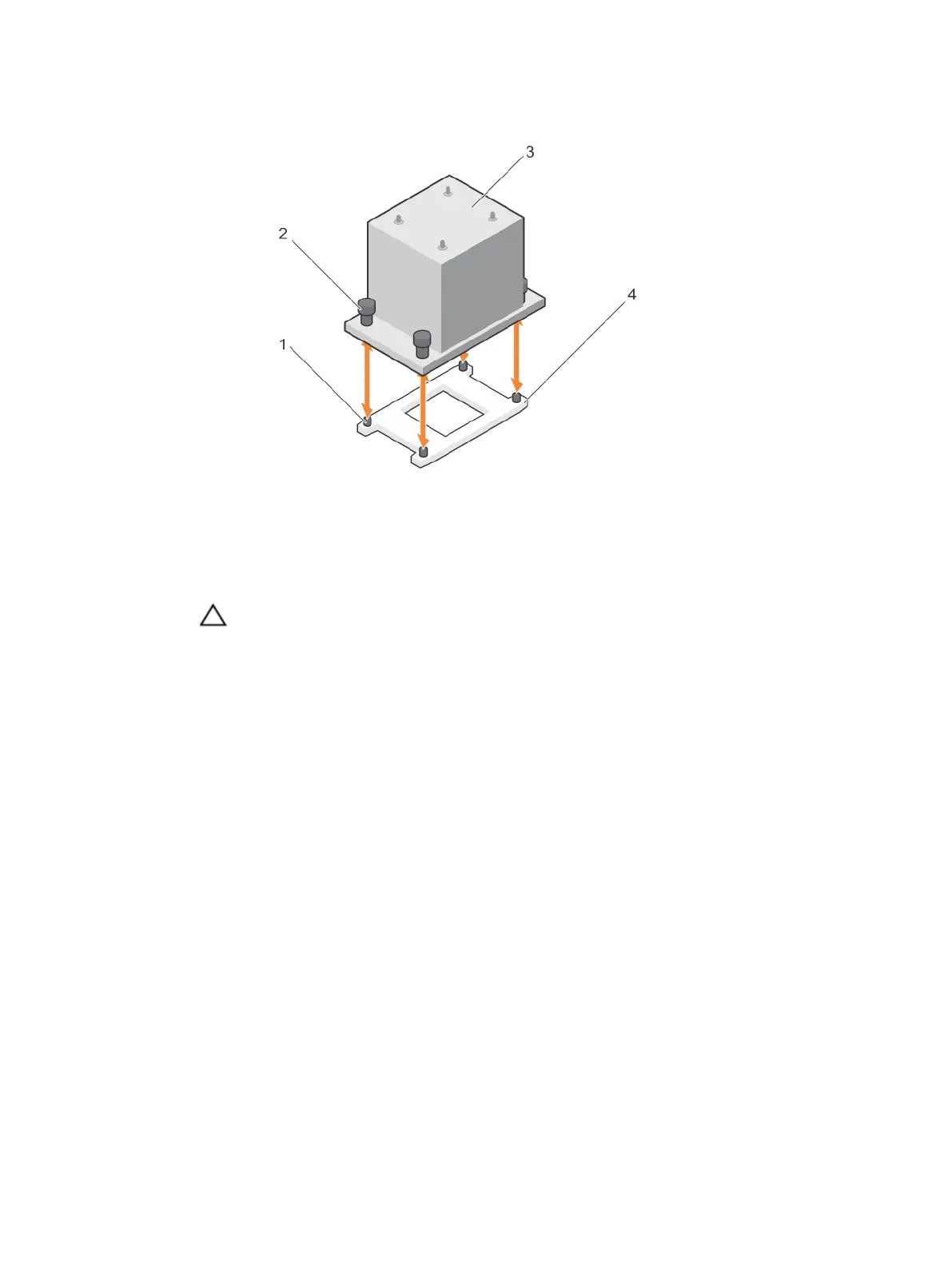

Figure 46. Removing and installing a processor heat sink
1. slots (4) 2. captive screws (4)
3. heat sink 4. processor socket
CAUTION: The processor is held in its socket under strong pressure. Be aware that the
release lever can spring up suddenly if not firmly grasped.
