Jumpers and connectors
This section provides essential and specific information about jumpers and switches. It also describes the connectors on the
various boards in the system. Jumpers on the system board help to disable the system and reset the passwords. To install
components and cables correctly, you must be able to identify the connectors on the system board.
Topics:
• System board connectors
• System board jumper settings
• Disabling a forgotten password
System board connectors

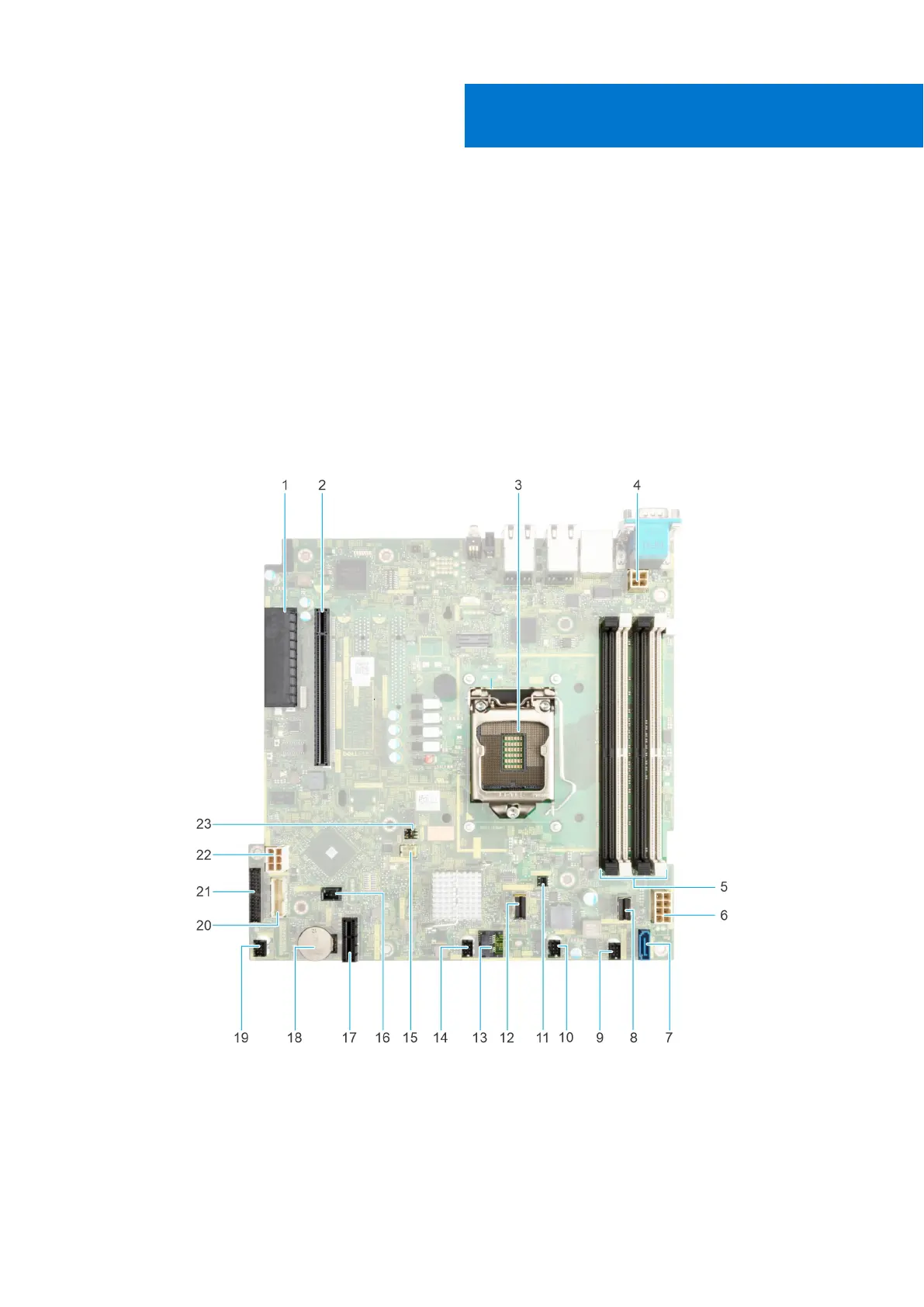

Figure 84. System board jumpers and connectors
1. Internal storage connector
2. Riser connector
3. Processor
4. Processor power connector
6
Jumpers and connectors 91
