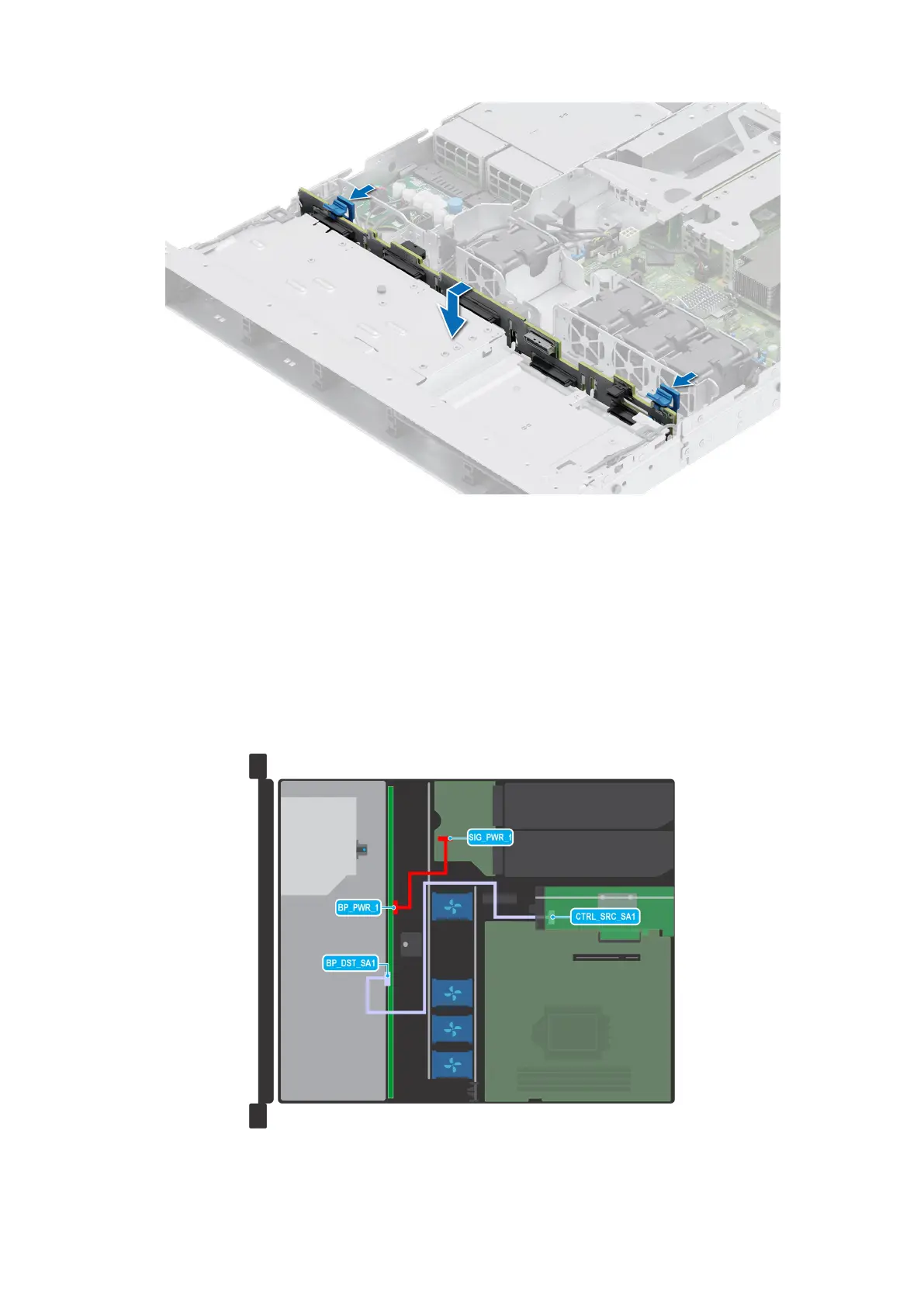

Figure 22. Installing the drive backplane
Next steps
1. Reconnect all the disconnected cables to the backplane.
2. Install all the drives.
3. Install the air shroud.
4. Follow the procedure listed in After working inside your system.
Cable routing
Figure 23. Cable routing - 4 x 3.5-inch drive SAS or SATA backplane
Installing and removing system components
35
