Management network A, nodes 1 - 16 cabling
Use the following figure and table to connect cables for management network A, nodes 1 - 16.

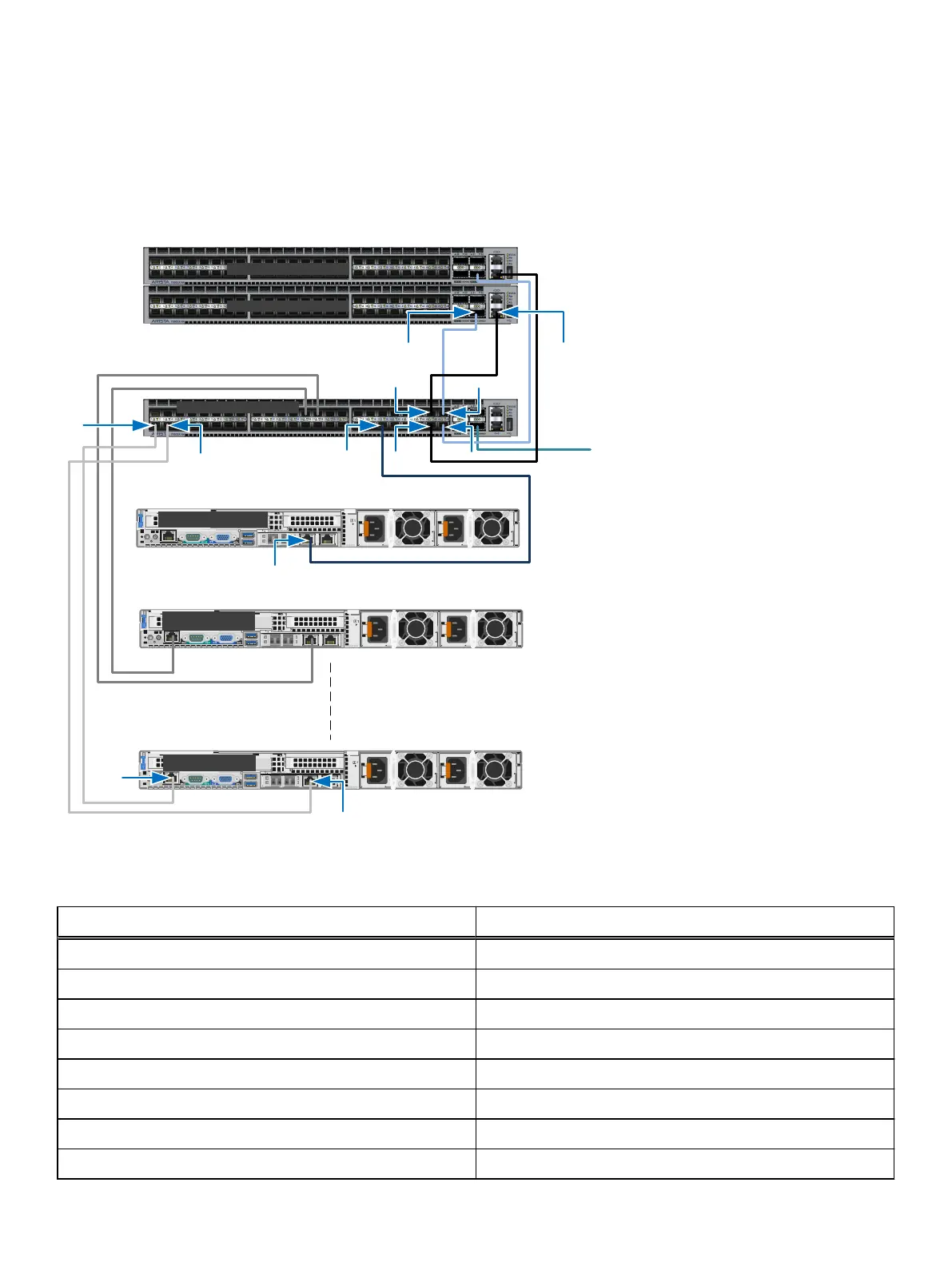

Figure 21 Management A, nodes 1 - 16 cabling example
Node 16
Node 1
Mgmt Switch A
To core switch or
Mgmt Switch B
Mgmt Server
Data Switch A
Data Switch B
BMC/
iDRAC
2
4
MGMT1
NIC1
38
45
46
<…>
47
MGMT
48
Table 9 Management A, nodes 1 -16 cabling
Source Destination
Node 1 BMC (iDRAC) Management SwitchA Port 2
Node 1 MGMT1 Management SwitchA Port 4
Node 2 BMC (iDRAC) Management SwitchA Port 6
Node 2 MGMT1 Management SwitchA Port 8
Node 3 BMC (iDRAC) Management SwitchA Port 10
Node 3 MGMT1 Management SwitchA Port 12
Node 4 BMC (iDRAC) Management SwitchA Port 14
Node 4 MGMT1 Management SwitchA Port 16
Install Management Network I/O Cables
