Dell EMC VxFlex Ready Node R740xd - Single-Phase Power Distribution

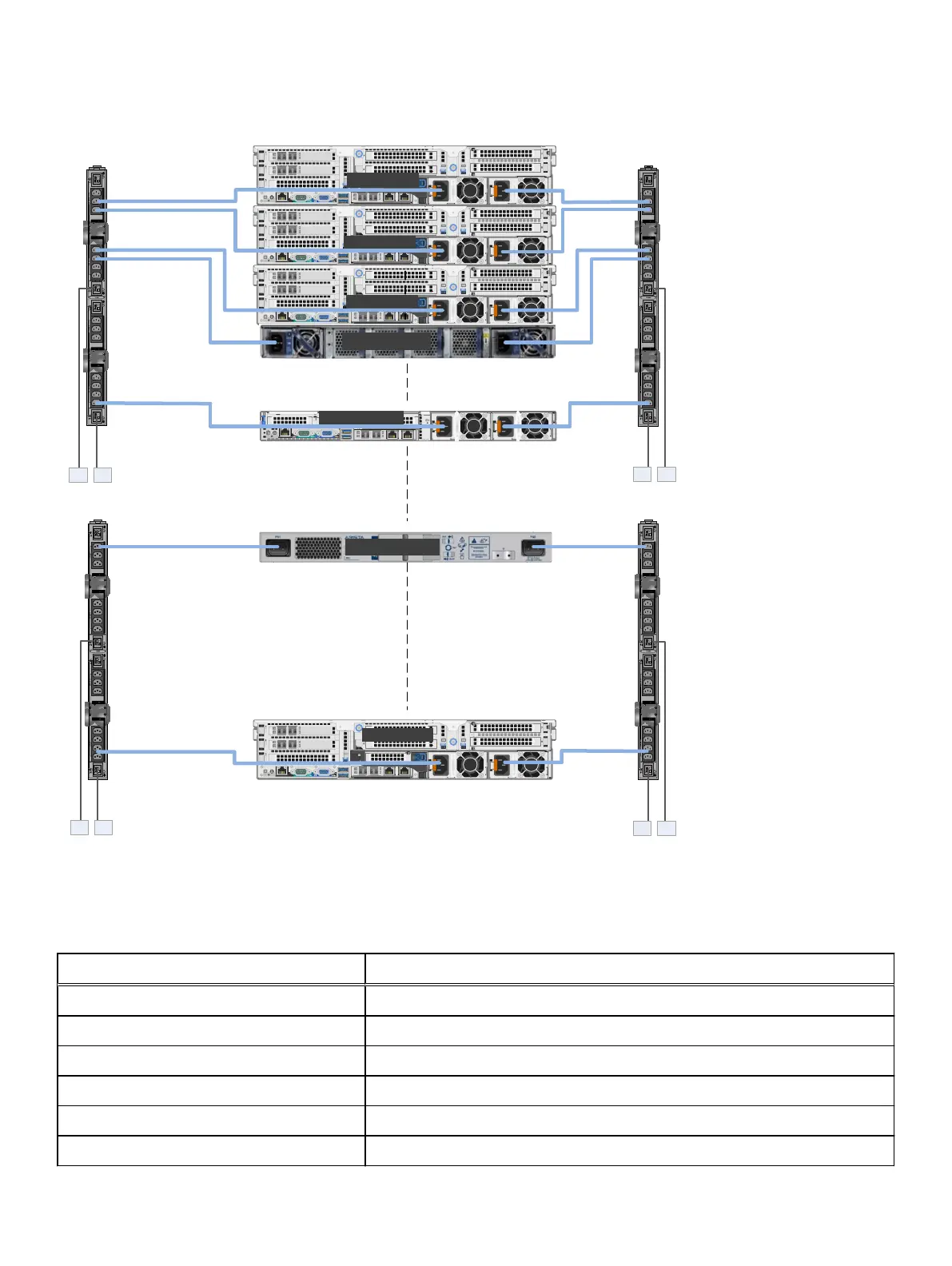

Figure 36 Single-phase power distribution
iDR
AC
iDR
AC
iDR
AC
iDR
AC
Node 14
Node 13
Data Switch D
Mgmt Switch B
Mgmt Server
Node 1
PDU 1
PDU 3
PDU 4
PDU 2
Zone A
Zone B
Zone A
Zone B
Node 12
Table 16 Single-phase power distribution cabling
Source Destination
Node 14 PSU1 PDU 1 Port 2
Node 14 PSU2 PDU 2 Port 2
Node 13 PSU1 PDU 1 Port 3
Node 13 PSU2 PDU 2 Port 3
Node 12 PSU1 PDU 1 Port 4
Node 12 PSU2 PDU 2 Port 4
Wiring Diagrams for a R740XD Configuration
70 Dell EMC VxFlex Ready Node Server Installation Guide
