connect the ToR switch to better facilitate inter-array member traffic. An uplink stack, LAG, or VLT LAG
from the blade IOM switch tier to the ToR switch tier is also required.

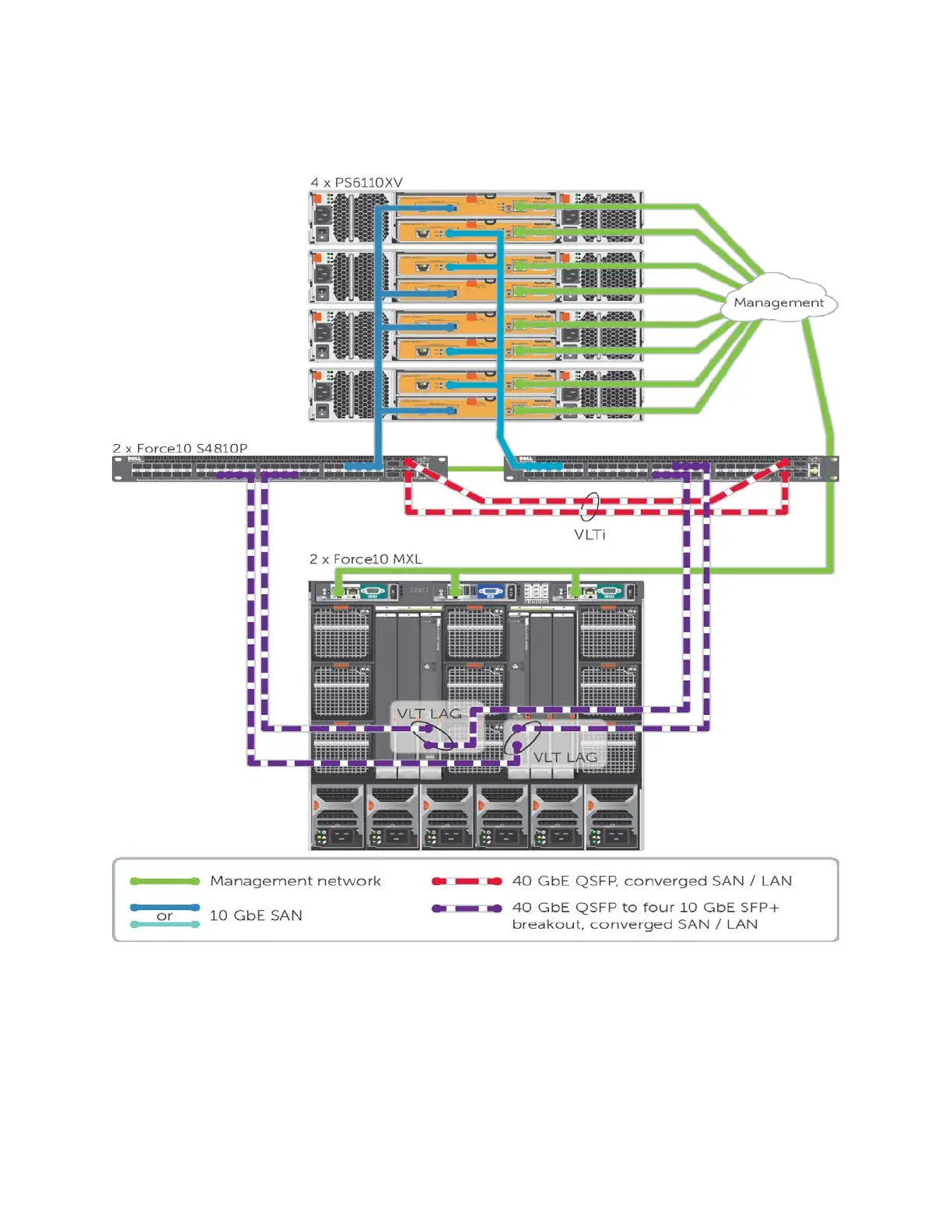

Figure 50 Blade IOM switch with ToR switch (Two tier design)
14.6 Data Center In A Chassis DCB design
Find guidance for incorporating a data center-in-a-chassis with the new Dell EqualLogic PS-M4110
Blade Array, Force10 Blade IO Modules, and PowerEdge M-Series blade servers to form a reliable,
stable, and well performing full end-to-end DCB solution.

Dell EqualLogic PS6100 series Specifications

General

RAID Support	RAID 5, RAID 6, RAID 10, RAID 50
Hot-Swappable Components	Drives, power supplies, controllers
Drive Bays	24
Drive Types	SAS, SSD
Controllers	Dual controllers
Network Interfaces	4 x 1GbE per controller
Management	Group Manager
Power Supply	Dual redundant hot-swappable power supplies
Maximum Raw Capacity	Up to 72TB
Number of Drives	24
Operating Temperature	10° to 35°C (50° to 95°F)
Form Factor	3U
