32 │ Setting up the monitor
VESA wall mounting (optional)
(Screw dimension: M4 x 10 mm).
Refer to the instructions that come wit
h the VESA-compatible wall mounting kit.
1. Pl
ace the monitor panel on a soft cloth or cushion on a stable flat table.
2. R
emove the monitor stand (see Removing the monitor stand).

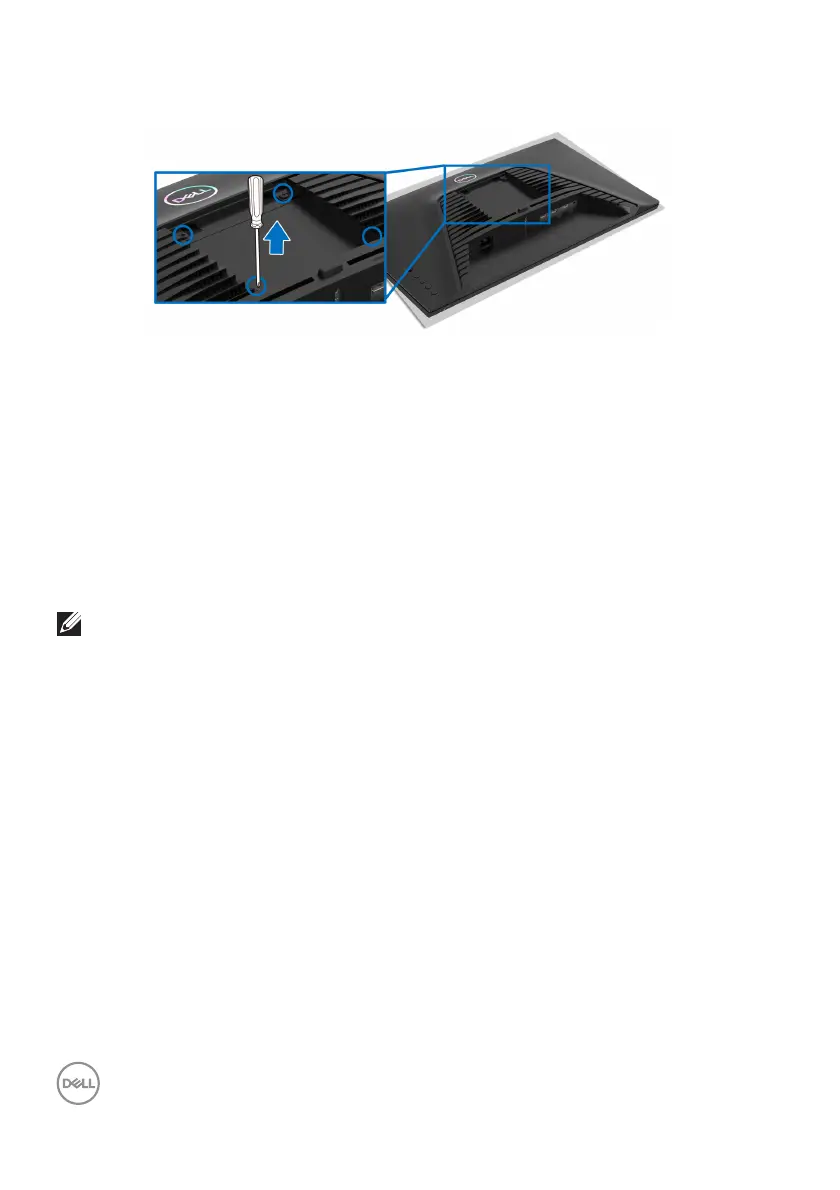

3. Using a
Phillips screwdriver, remove the four screws that secure the display
back cover.
4. Inst
all the mounting bracket from the wall mounting kit to the monitor.
5. Mo
unt the monitor on the wall. For more information, see the documentation
that is shipped with the wall mounting kit.
NOTE: For use only with UL or CSA or GS-listed wall mount bracket
with minimum weight or load bearing capacity of 14.00 kg.
