Dell Inspiron 15 5515 User Manual

Steps

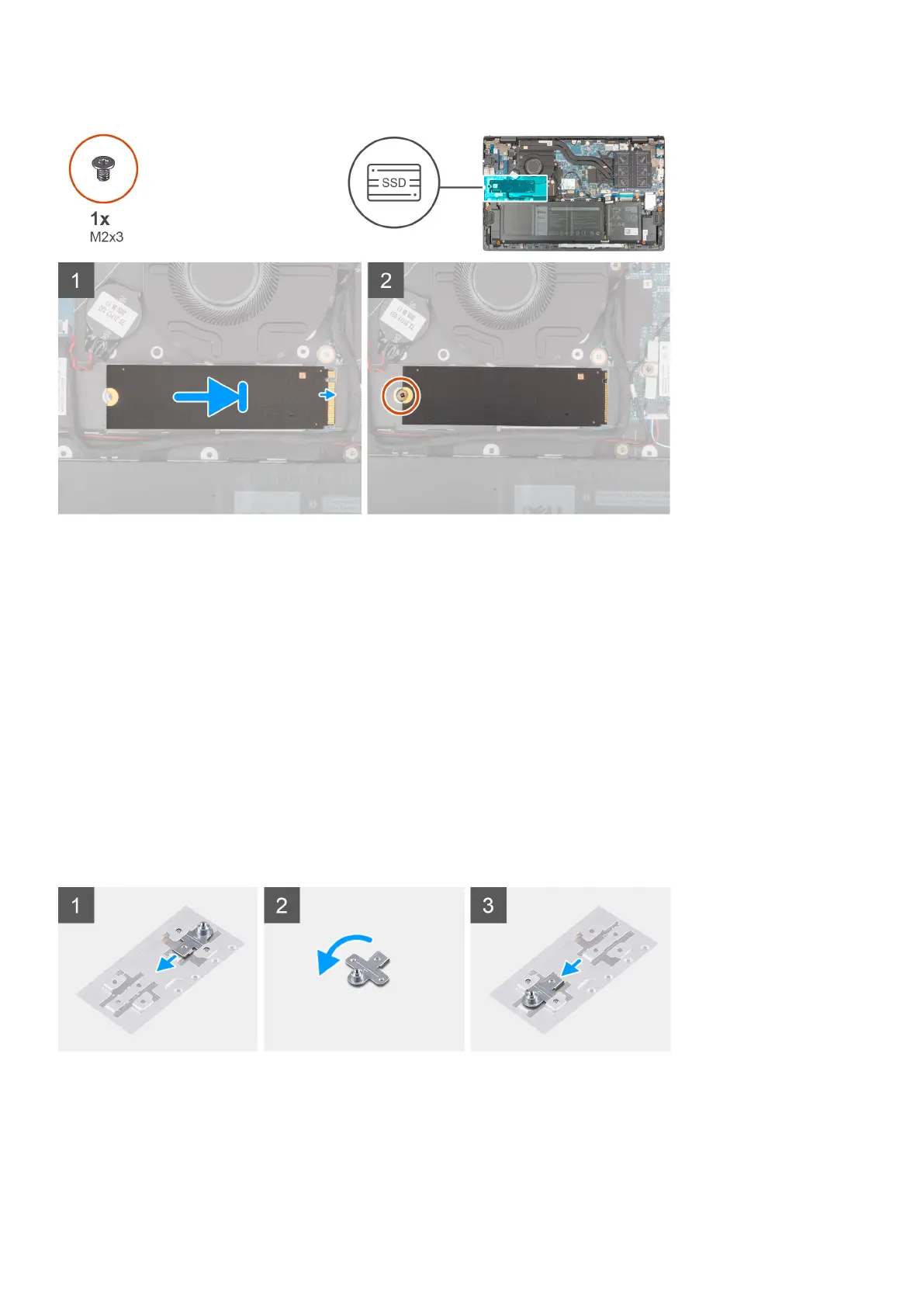

1. Align the notch on the 2280 solid-state drive with the tab on the solid-state drive slot.
2. Slide the 2280 solid-state drive firmly into the solid-state drive slot at an angle.
3. Align the screw hole on the solid-state drive with the screw hole on the palm-rest and keyboard assembly.
4. Replace the screw (M2x3) that secures the 2280 solid-state drive to the palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Installing the solid-state drive mounting bracket on M.2 slot one
About this task
The following image provides a visual representation of the procedure to install the solid-state drive mounting bracket when
replacing M.2 2230 solid-state drive with M.2 2280 solid-state drive in M.2 slot one.
The following image provides a visual representation of the procedure to install the solid-state drive mounting bracket when
replacing M.2 2280 solid-state drive with M.2 2230 solid-state drive in M.2 slot one.
28
Removing and installing components

Dell Inspiron 15 5515 Specifications

General

Audio	Stereo speakers with Waves MaxxAudio Pro
Processor	AMD Ryzen 5 5500U or AMD Ryzen 7 5700U
Display	15.6-inch FHD (1920 x 1080) Anti-glare LED Backlight Non-Touch Narrow Border
RAM	8GB or 16GB DDR4, 3200MHz
Storage	256GB / 512GB / 1TB M.2 PCIe NVMe SSD
Graphics	AMD Radeon Graphics
Operating System	Windows 10 Home / Windows 11 Home
Battery	3-cell, 41Whr / 4-cell, 54Whr
Ports	1 x HDMI 1.4b
Wireless	Bluetooth
Webcam	720p at 30 fps HD camera
