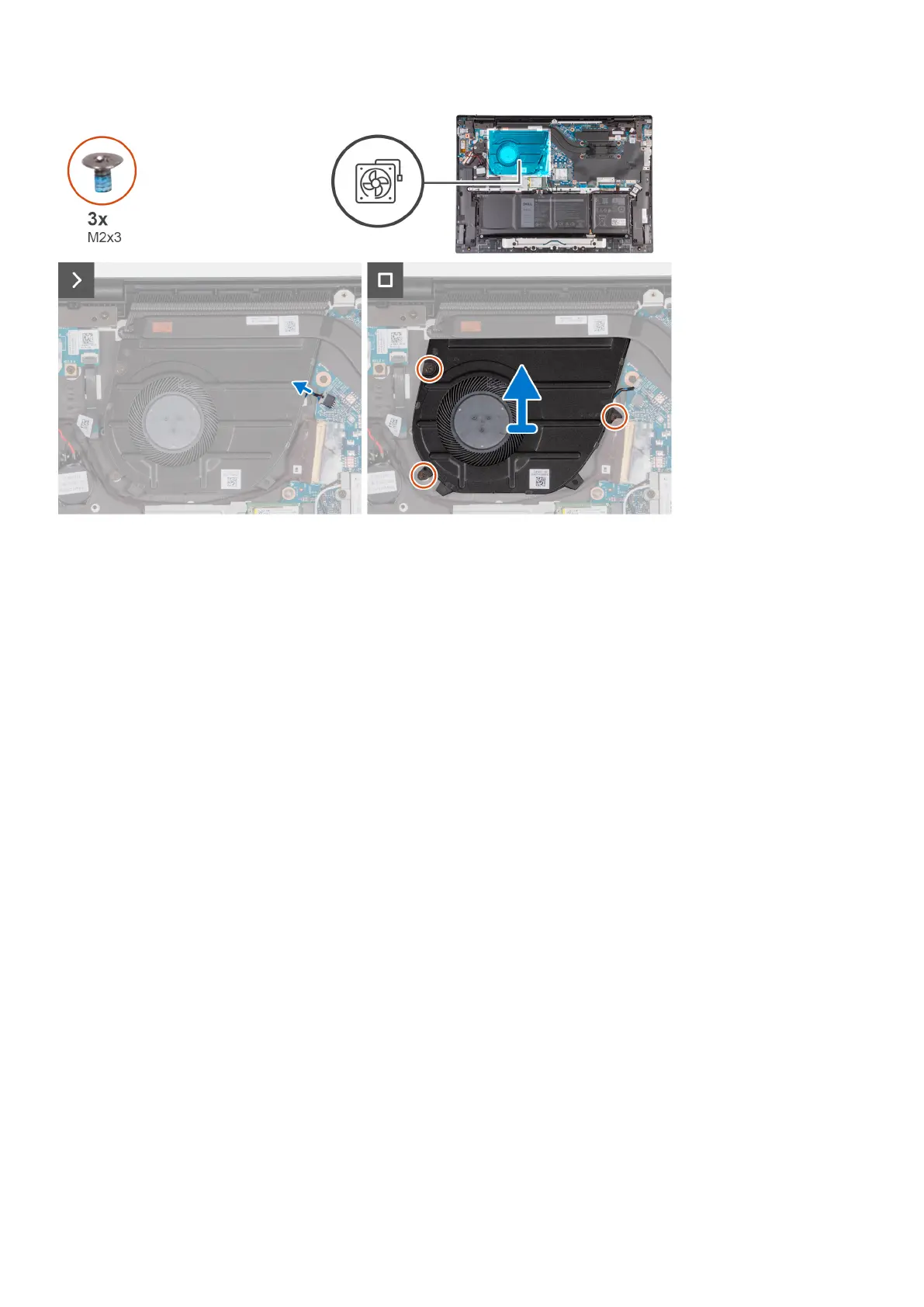

Steps
1. Disconnect the fan cable from the system board.
2. Remove the three screws (M2x3) that secure the left fan to the palm-rest and keyboard assembly.
3. Lift the fan off the palm-rest and keyboard assembly.
Installing the fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the fan and provides a visual representation of the installation procedure.
Removing and installing Customer Replaceable Units (CRUs)
43

Dell Inspiron 16 5635 Specifications

General

Display Size	16 inch
Graphics	AMD Radeon Graphics
Wireless	Wi-Fi 6, Bluetooth 5.2
Processor	AMD Ryzen 7 7730U
Storage	512GB SSD
Operating System	Windows 11 Home
Battery	54Whr
Weight	1.87 kg
Display Resolution	1920 x 1200
Display Features	ComfortView Support
Ports	1 x HDMI 1.4, 1 x SD card reader, 1 x Audio jack
Dimensions	356.78 x 251.90 mm
RAM	16GB DDR4
