Replacing a WLAN Card
NOTICE: The connectors are keyed to ensure correct insertion. If you feel
resistance, check the connectors on the card and on the system board, and realign
the card.
NOTICE: To avoid damage to the WLAN card, never place cables under the card.
1
Insert the
WLAN
card connector at a 45-degree angle into the system
board connector labeled "WLAN".
2
Press the other end of the
WLAN
card down into the securing tabs until
the card clicks into place.

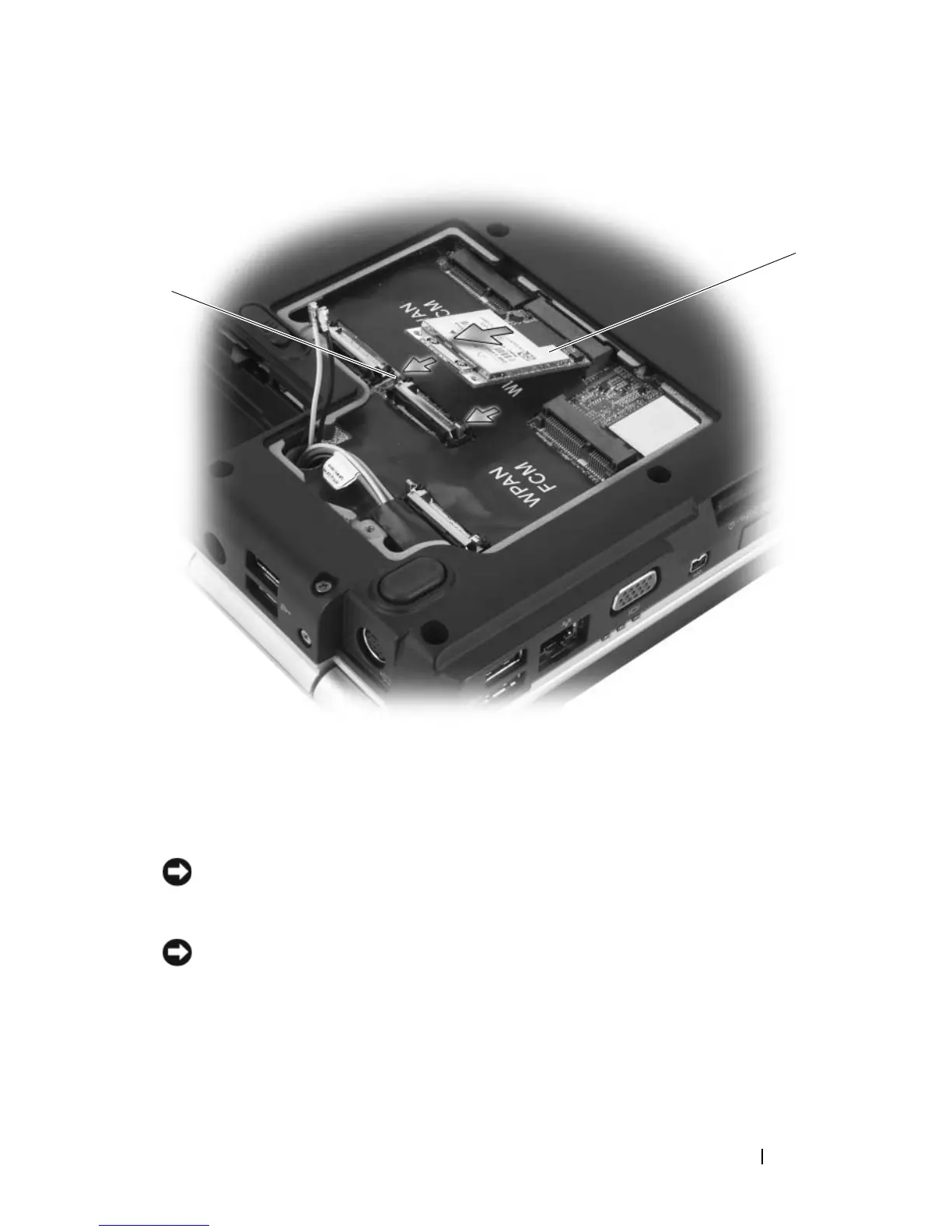

1 metal securing tabs (2) 2 WLAN card
