Dell Inspiron 3581 User Manual

Replacing the optical-drive connector board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure

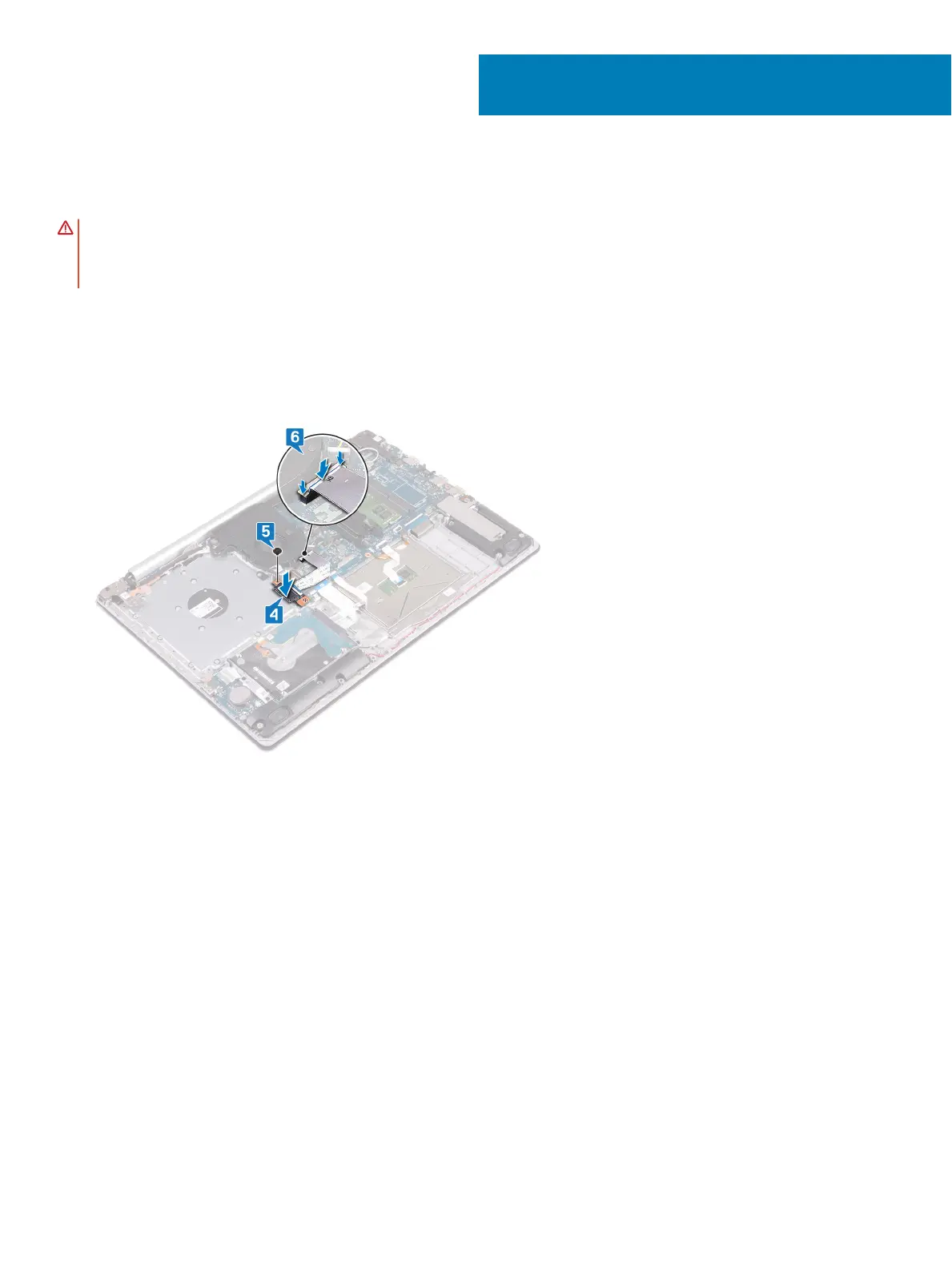

1 Align the screw hole on the optical-drive connector board with the screw hole on the palm rest and keyboard assembly.
2 Replace the screw (M2x2) that secures the optical-drive connector board to the palm rest and keyboard assembly.
3 Connect the optical-drive connector-board cable to the system board and close the latch.
Post-requisites
1 Replace the base cover.
2 Replace the optical drive.
17
Replacing the optical-drive connector board 35
