Replacing the power-button board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.

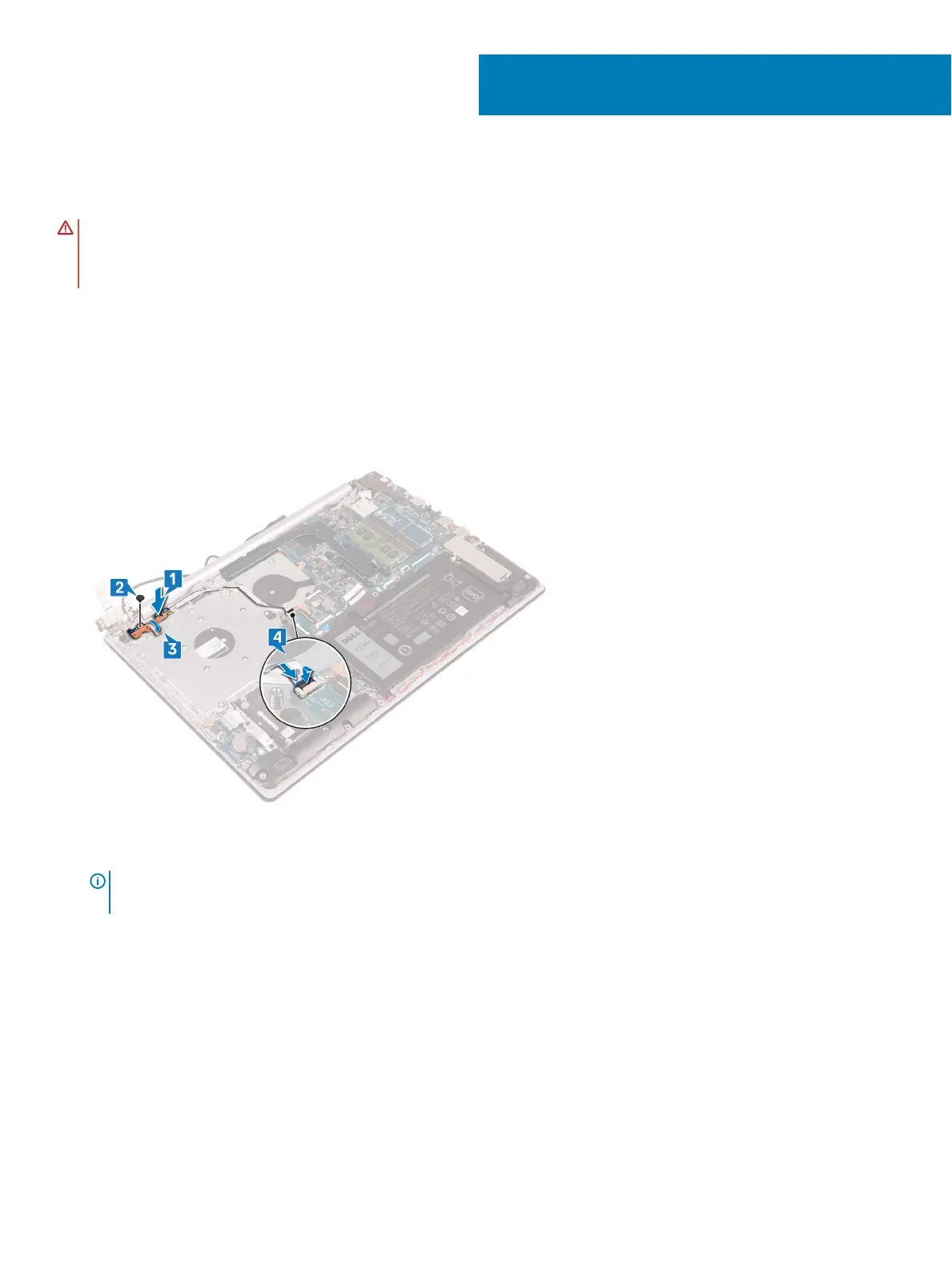

Procedure
1 Place the power-button board on the palm rest and keyboard assembly and align the screw hole on the power-button board with the
screw hole on the palm rest and keyboard assembly.
2 Replace the screw (M2x3) that secures the power-button board to the palm rest and keyboard assembly.
3 Adhere the tape that secures the power-button board to the palm rest and keyboard assembly.
4 Slide the power-button cable to the system board and close the latch to secure the cable.
5 Close the left hinge.
6 Replace the two screws (M2.5x5) that secure the left hinge to palm rest and keyboard assembly.
NOTE
: For computers shipped without optical drive, there is an additional screw on the left hinge that secures the left hinge
to palm rest and keyboard assembly.
