About this task

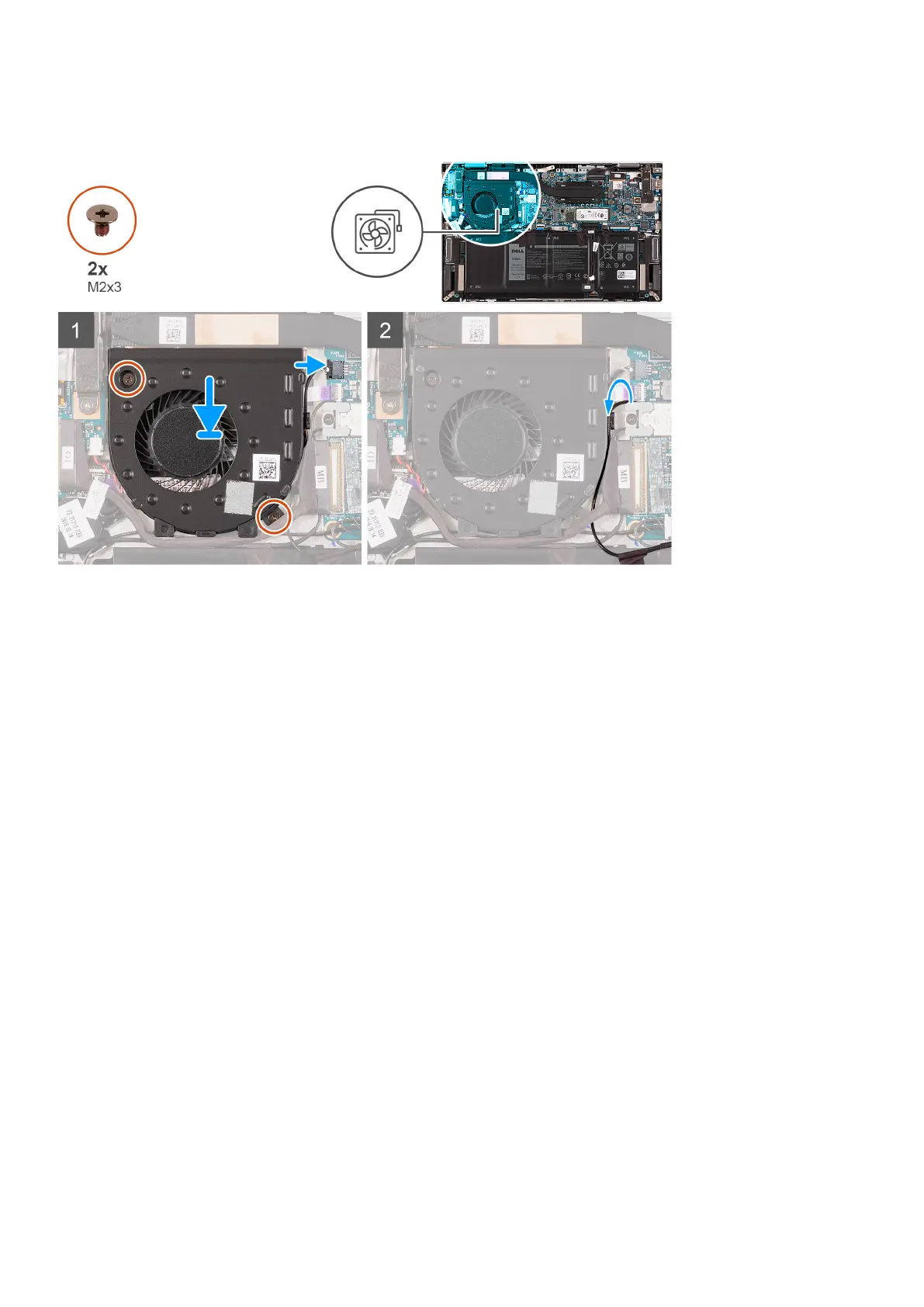

The following image(s) indicate the location of the fan and provides a visual representation of the installation procedure.
Steps
1. Using the alignment posts, place the fan on the palm-rest assembly.
2. Replace the two screws (M2x3) that secure the fan to the palm-rest assembly.
3. Connect the fan cable to the system board.
4. Route the antenna cables through the routing guides on the fan.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image(s) indicate the location of the power-adapter port and provides a visual representation of the removal
procedure.
Removing and installing components
27
