Steps

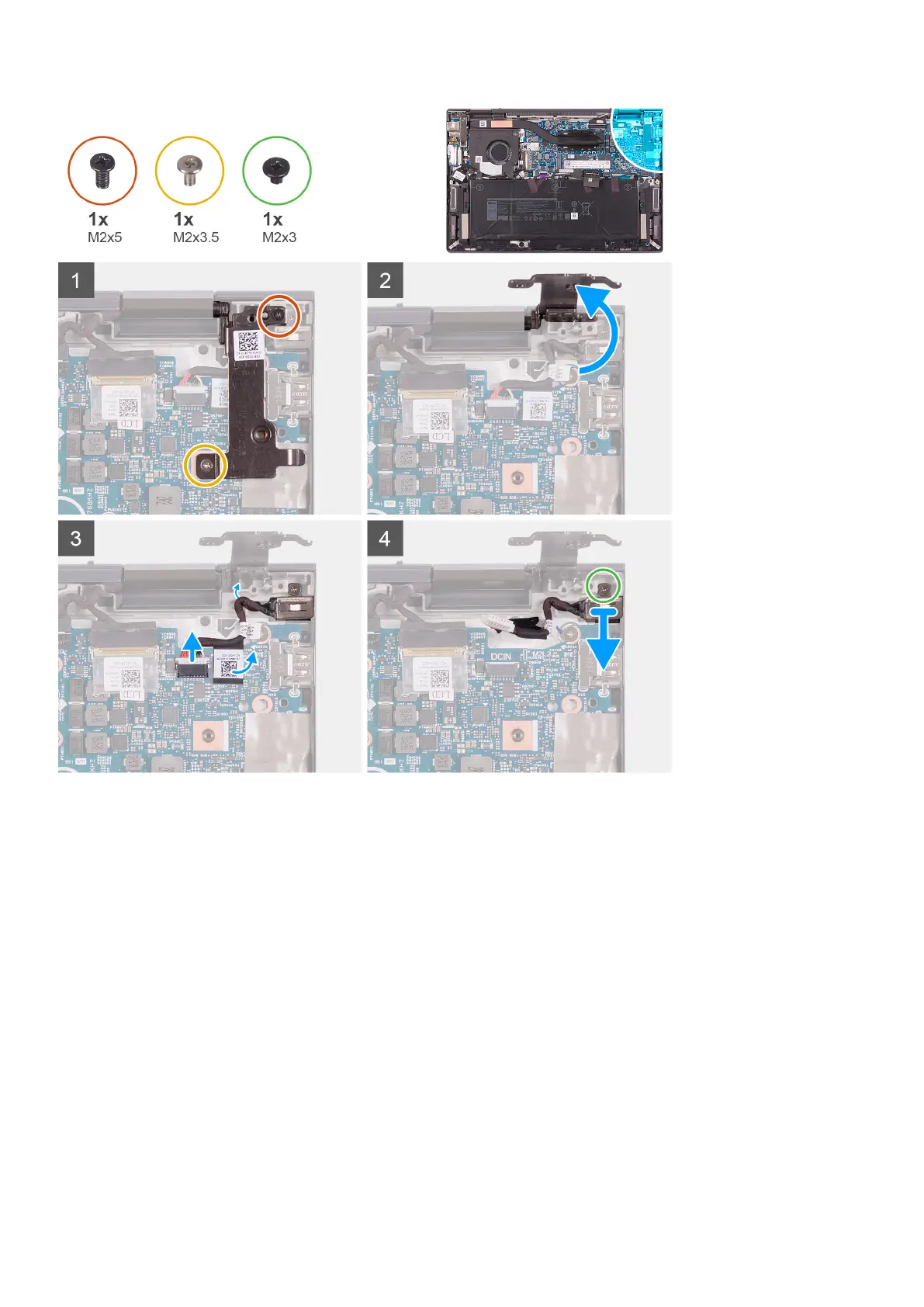

1. Remove the screw (M2x5) that secures the right display-hinge to the palm-rest assembly.
2. Remove the screw (M2x3.5) that secures the right display-hinge to the system board and palm-rest assembly.
3. Pry open the right display-hinge.
4. Peel off the tape the secures the power-adapter port cable to the system board.
5. Disconnect the power-adapter port cable from the system board.
6. Remove the screw (M2x3) that secures the power-adapter port to the palm-rest assembly.
7. Remove the power-adapter port cable from the routing guide on the palm-rest assembly.
8. Lift the power-adapter port along with its cable off the palm-rest assembly.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
28
Removing and installing components
