Steps

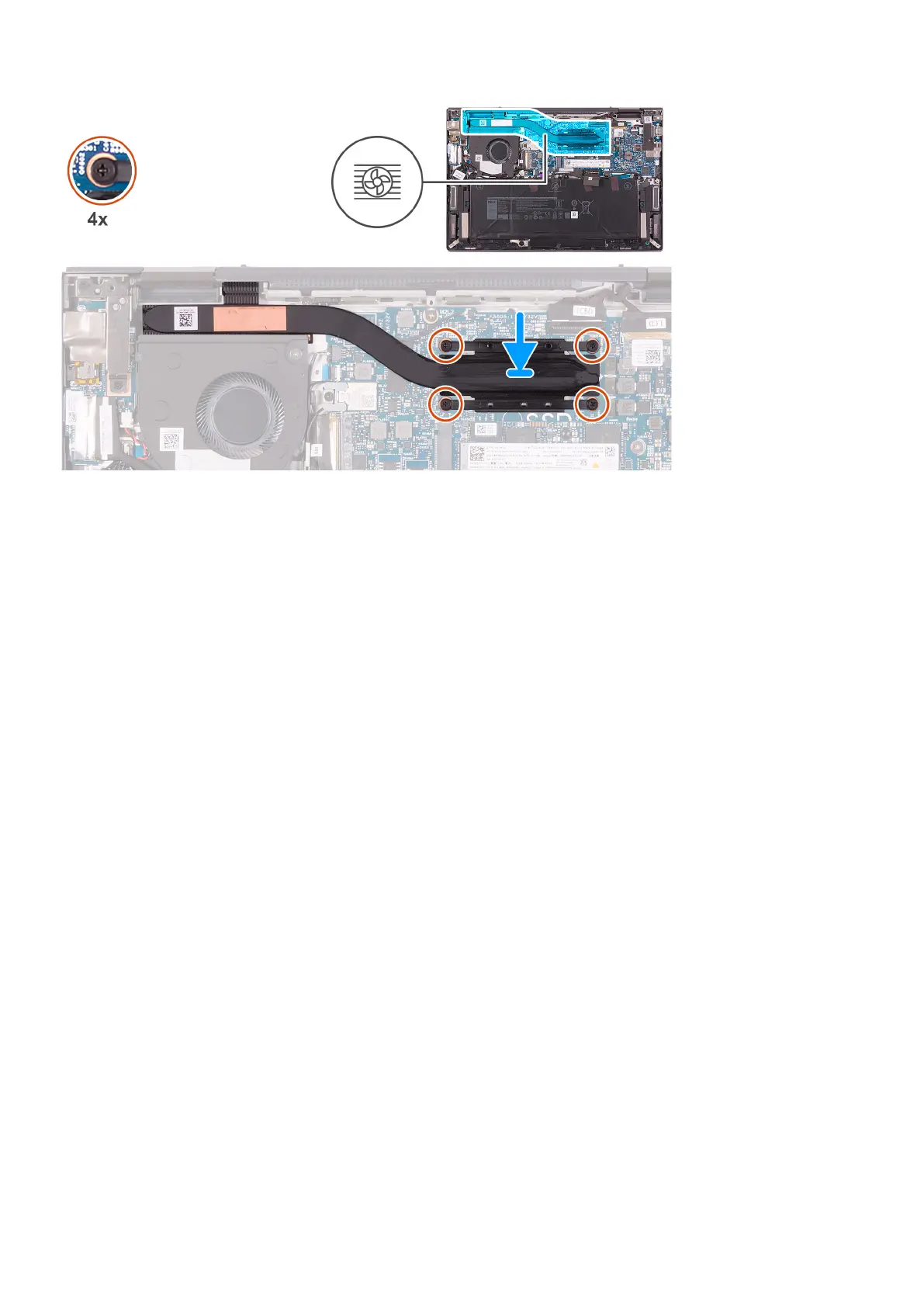

1. Place the heat sink on the system board.
2. In sequential order (1>2>3>4) tighten the four captive screws that secure the heat sink to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Power button with fingerprint reader
Removing the power-button with fingerprint reader
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the fan.
4. Remove the I/O board.
About this task
The following image(s) indicate the location of the power-button with fingerprint reader and provides a visual representation of
the removal procedure.
Removing and installing components
39
