Dell latitude e5270 - Installing the Optional M.2 SSD; Removing the Optional Pcie SSD

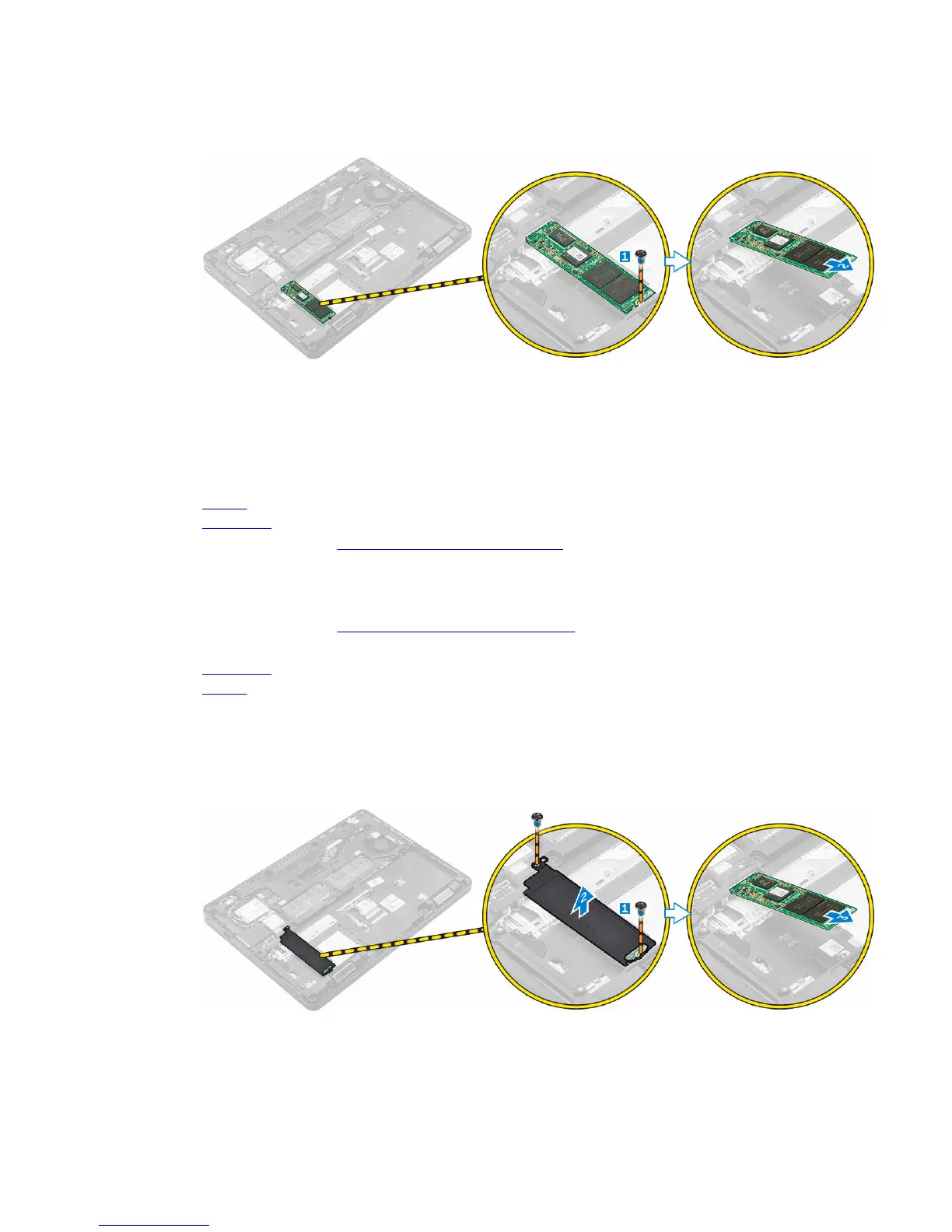

a. Remove the screw that secures the SSD to the computer [1].
b. Slide and lift the SSD from the computer [2].
Installing the optional M.2 SSD
1. Insert the SSD into the connector on the computer.
2. Tighten the screw to secure the SSD to the computer.
3. Install the:
a. battery
b. base cover
4. Follow the procedure in After working inside your computer.
Removing the optional PCIe SSD
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
3. To remove the PCIe SSD:
a. Remove the screws that secure the SSD bracket to the SSD [1].
b. Remove the SSD bracket [2].
c. Remove the SSD from the computer [3].
d. Remove the thermal pad from the computer.
14
