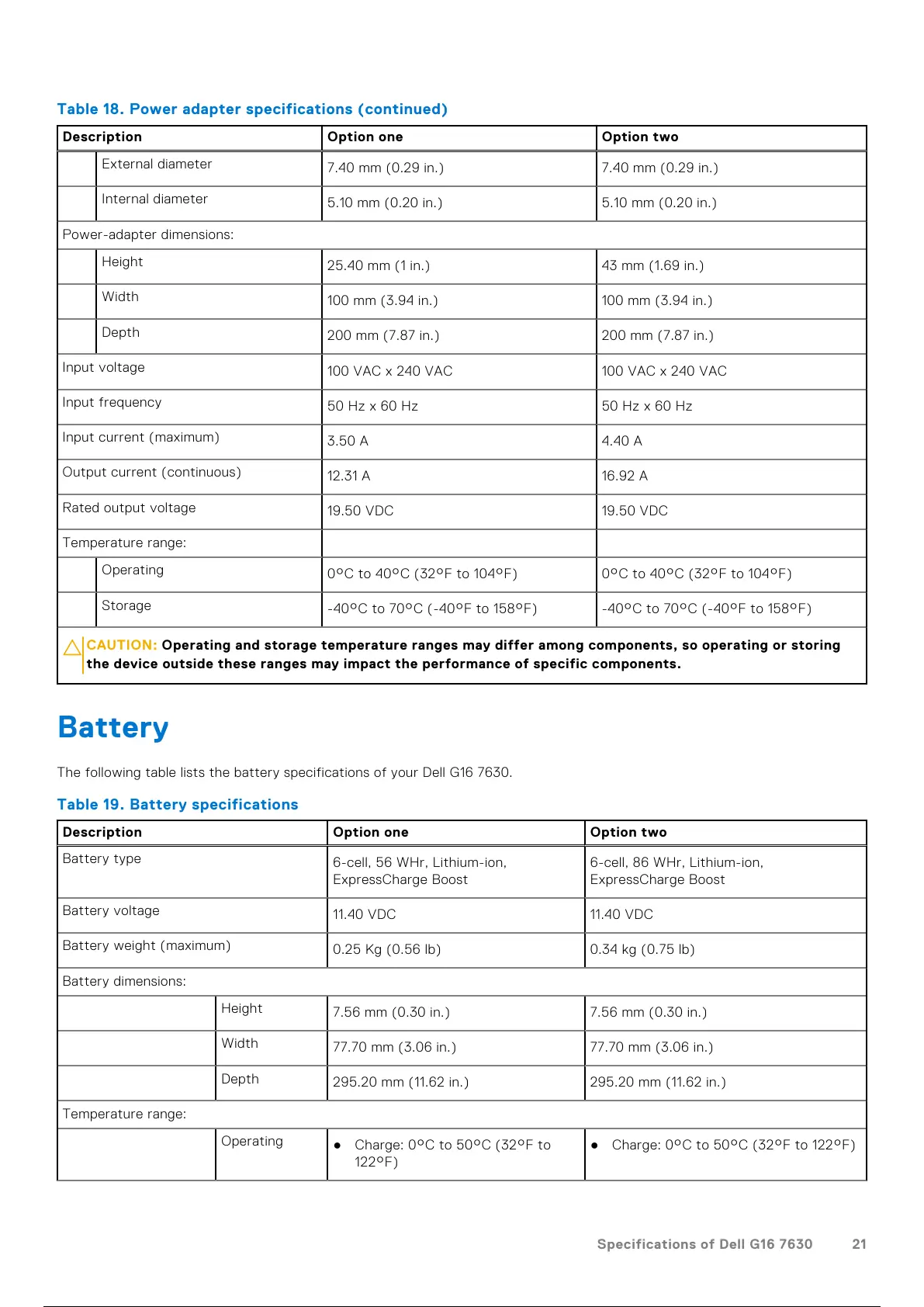

Table 18. Power adapter specifications (continued)
Description Option one Option two
External diameter
7.40 mm (0.29 in.) 7.40 mm (0.29 in.)
Internal diameter
5.10 mm (0.20 in.) 5.10 mm (0.20 in.)
Power-adapter dimensions:
Height
25.40 mm (1 in.) 43 mm (1.69 in.)
Width
100 mm (3.94 in.) 100 mm (3.94 in.)
Depth
200 mm (7.87 in.) 200 mm (7.87 in.)
Input voltage
100 VAC x 240 VAC 100 VAC x 240 VAC
Input frequency
50 Hz x 60 Hz 50 Hz x 60 Hz
Input current (maximum)
3.50 A 4.40 A
Output current (continuous)
12.31 A 16.92 A
Rated output voltage
19.50 VDC 19.50 VDC
Temperature range:
Operating
0°C to 40°C (32°F to 104°F) 0°C to 40°C (32°F to 104°F)
Storage
-40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing
the device outside these ranges may impact the performance of specific components.
Battery
The following table lists the battery specifications of your Dell G16 7630.
Table 19. Battery specifications
Description Option one Option two
Battery type
6-cell, 56 WHr, Lithium-ion,
ExpressCharge Boost
6-cell, 86 WHr, Lithium-ion,
ExpressCharge Boost
Battery voltage
11.40 VDC 11.40 VDC
Battery weight (maximum)
0.25 Kg (0.56 lb) 0.34 kg (0.75 lb)
Battery dimensions:
Height
7.56 mm (0.30 in.) 7.56 mm (0.30 in.)
Width
77.70 mm (3.06 in.) 77.70 mm (3.06 in.)
Depth
295.20 mm (11.62 in.) 295.20 mm (11.62 in.)
Temperature range:
Operating
● Charge: 0°C to 50°C (32°F to
122°F)
● Charge: 0°C to 50°C (32°F to 122°F)
Specifications of Dell G16 7630 21
