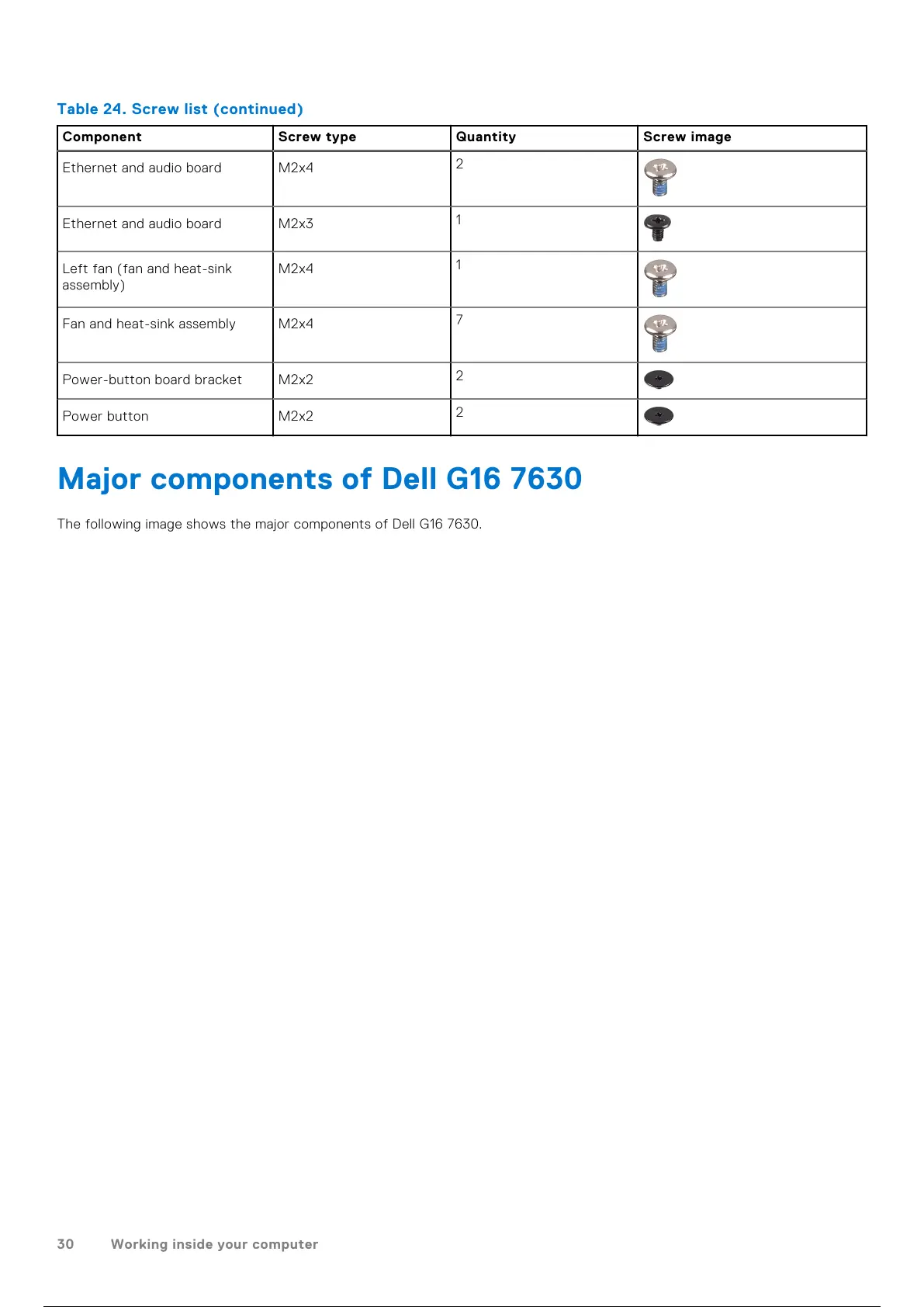

Table 24. Screw list (continued)
Component Screw type Quantity Screw image
Ethernet and audio board M2x4
2
Ethernet and audio board M2x3
1
Left fan (fan and heat-sink
assembly)
M2x4
1
Fan and heat-sink assembly M2x4
7
Power-button board bracket M2x2
2
Power button M2x2
2
Major components of Dell G16 7630
The following image shows the major components of Dell G16 7630.
