NOTE: Screw color may vary with the configuration ordered.

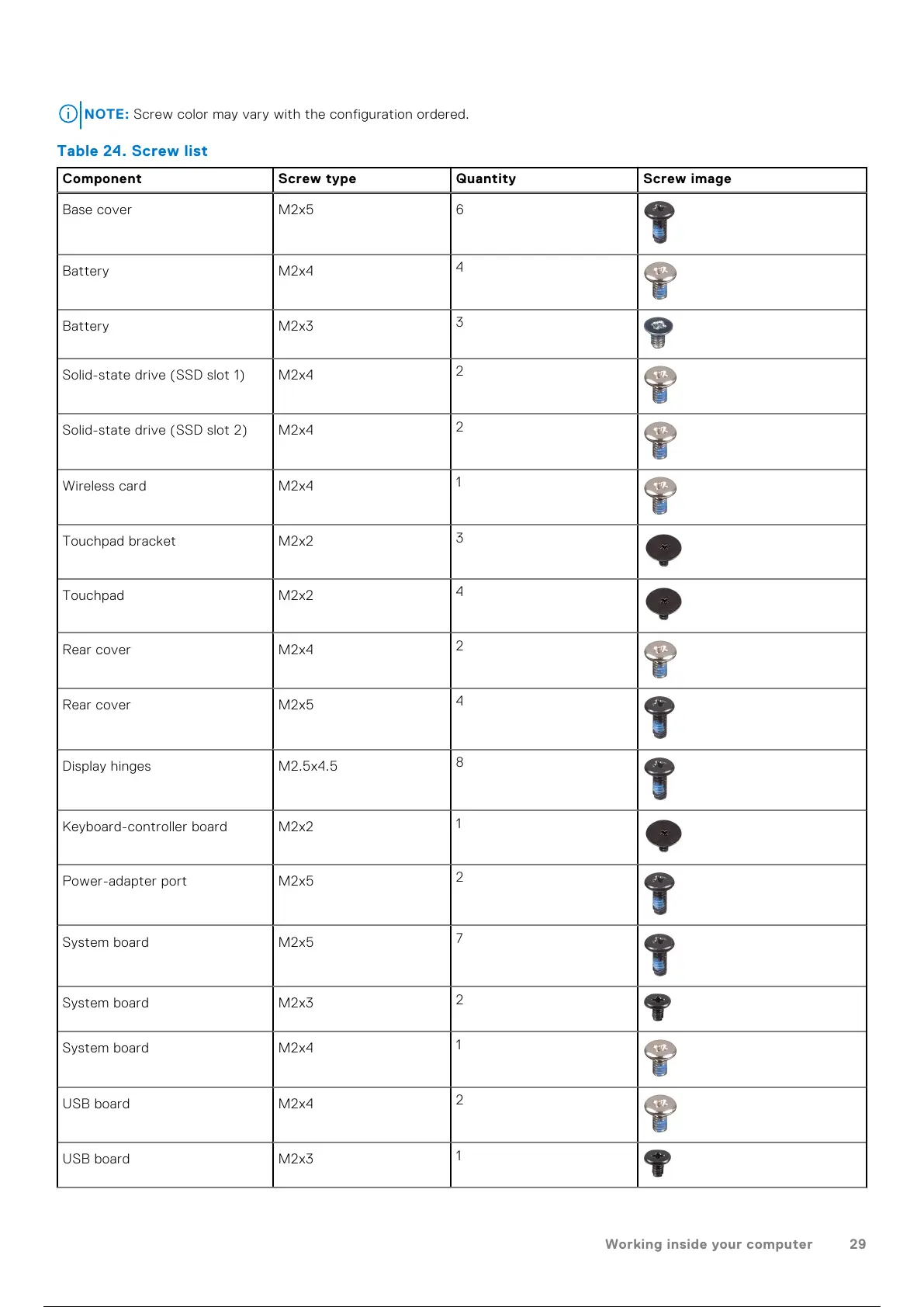

Table 24. Screw list
Component Screw type Quantity Screw image
Base cover M2x5 6
Battery M2x4
4
Battery M2x3
3
Solid-state drive (SSD slot 1) M2x4
2
Solid-state drive (SSD slot 2) M2x4
2
Wireless card M2x4
1
Touchpad bracket M2x2
3
Touchpad M2x2
4
Rear cover M2x4
2
Rear cover M2x5
4
Display hinges M2.5x4.5
8
Keyboard-controller board M2x2
1
Power-adapter port M2x5
2
System board M2x5
7
System board M2x3
2
System board M2x4
1
USB board M2x4
2
USB board M2x3
1
