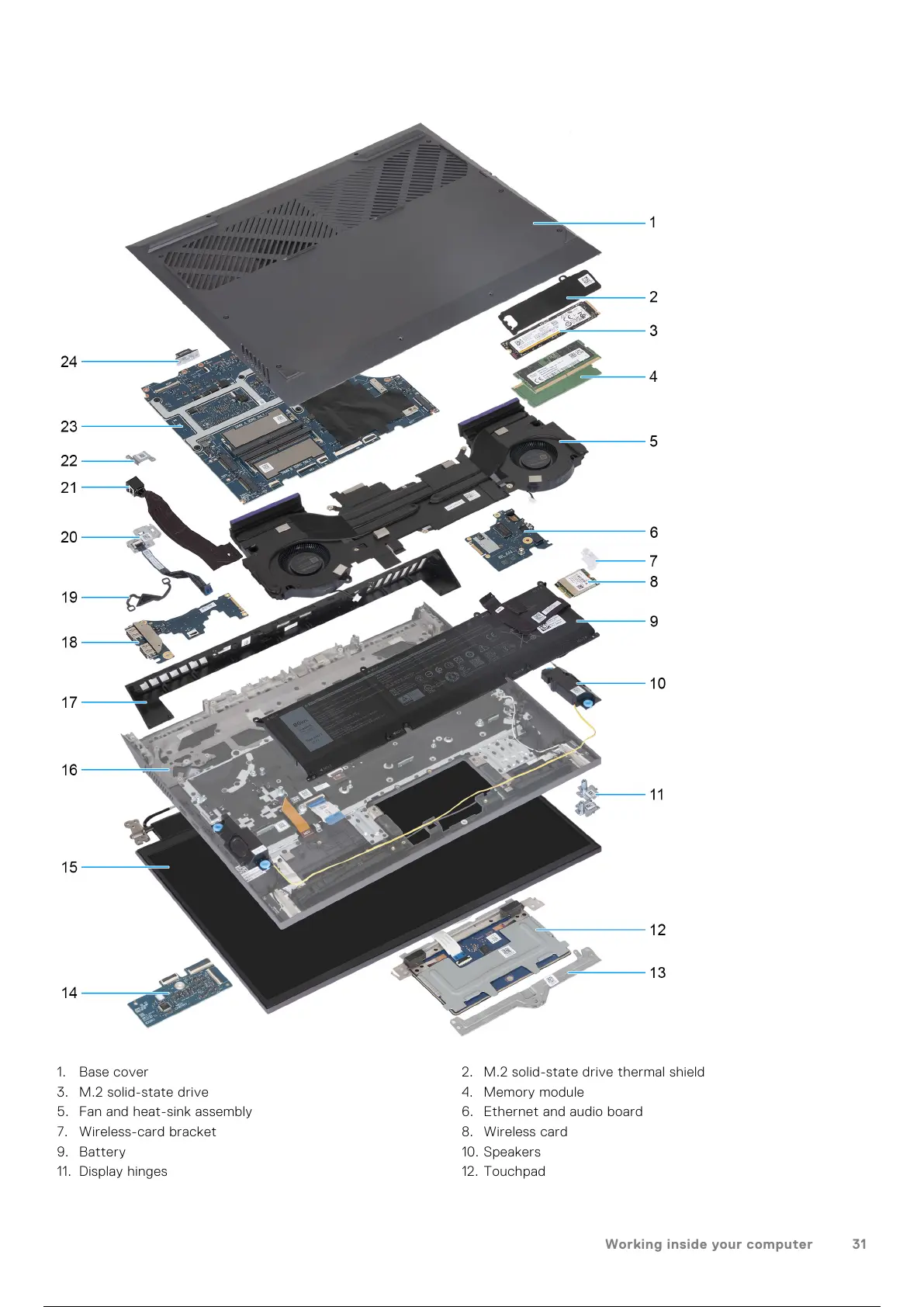

1. Base cover 2. M.2 solid-state drive thermal shield
3. M.2 solid-state drive 4. Memory module
5. Fan and heat-sink assembly 6. Ethernet and audio board
7. Wireless-card bracket 8. Wireless card
9. Battery 10. Speakers
11. Display hinges 12. Touchpad
Working inside your computer 31
