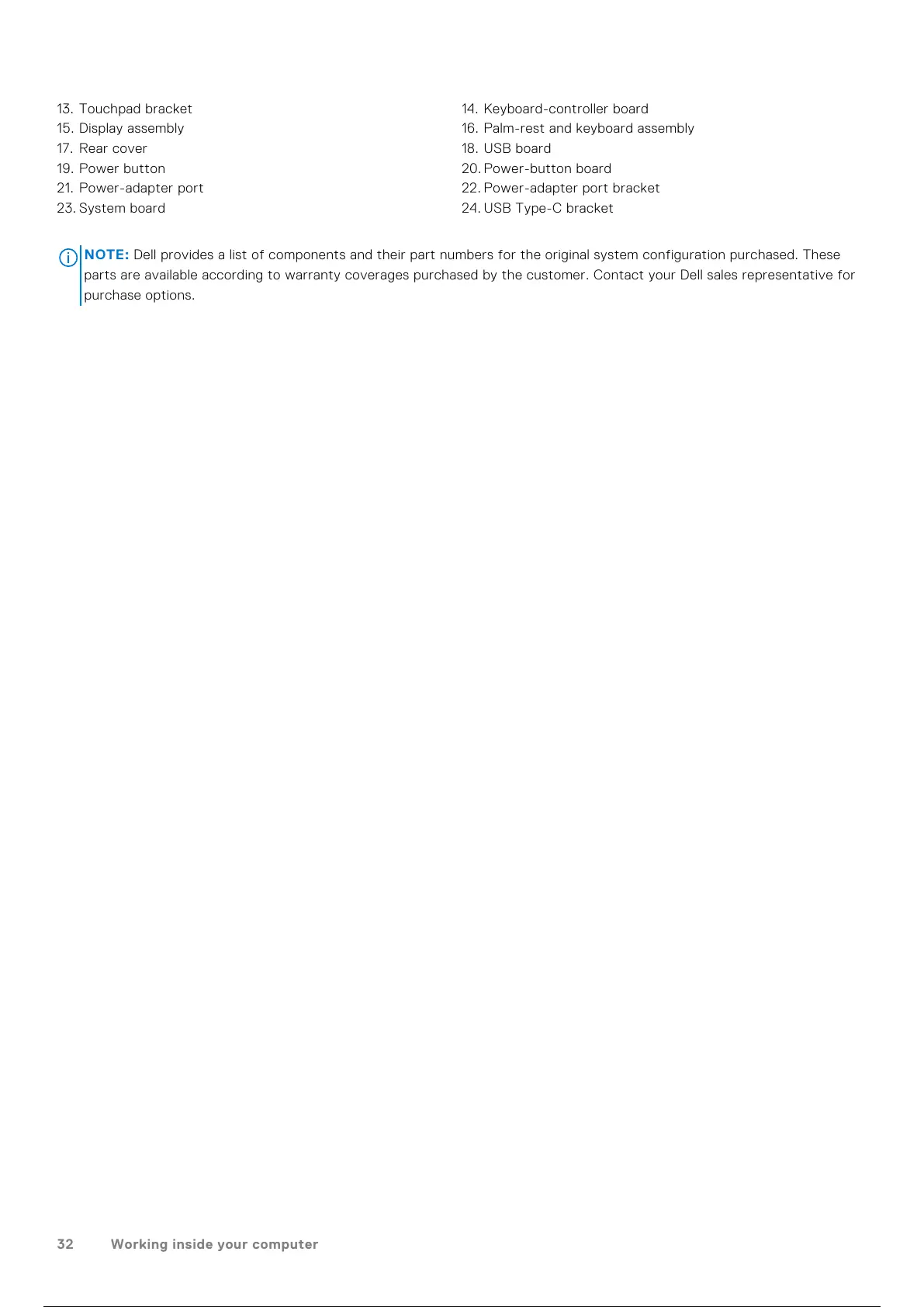

13. Touchpad bracket 14. Keyboard-controller board
15. Display assembly 16. Palm-rest and keyboard assembly
17. Rear cover 18. USB board
19. Power button 20. Power-button board
21. Power-adapter port 22. Power-adapter port bracket
23. System board 24. USB Type-C bracket
NOTE: Dell provides a list of components and their part numbers for the original system configuration purchased. These
parts are available according to warranty coverages purchased by the customer. Contact your Dell sales representative for
purchase options.
32 Working inside your computer
